805-003-12-22

Description
Mighty Mouse Triple-Start
File Size215KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

805-003-12-22 Overview

Mighty Mouse Triple-Start

W
Mighty Mouse
Fiber Optic
with #8 Contacts
Mighty Mouse
4X F
CLINCH NUT
C BSC
TYP
MASTER
KEYWAY
øD
E SQ
TYP
A THREAD
RED FULL MATE
INDICATOR BAND
Shell Size
8
9
10
11
12
13
15
18
19
21
23
A Thread
.5000-.1P-.3L-TS-2A
.5625-.1P-.3L-TS-2A
.6250-.1P-.3L-TS-2A
.6875-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.8125-.1P-.3L-TS-2A
.9375-.1P-.3L-TS-2A
1.1250-.1P-.3L-TS-2A
1.1875-.1P-.3L-TS-2A
1.3125-.1P-.3L-TS-2A
1.4375-.1P-.3L-TS-2A
B Thread
ØR
4X ø S

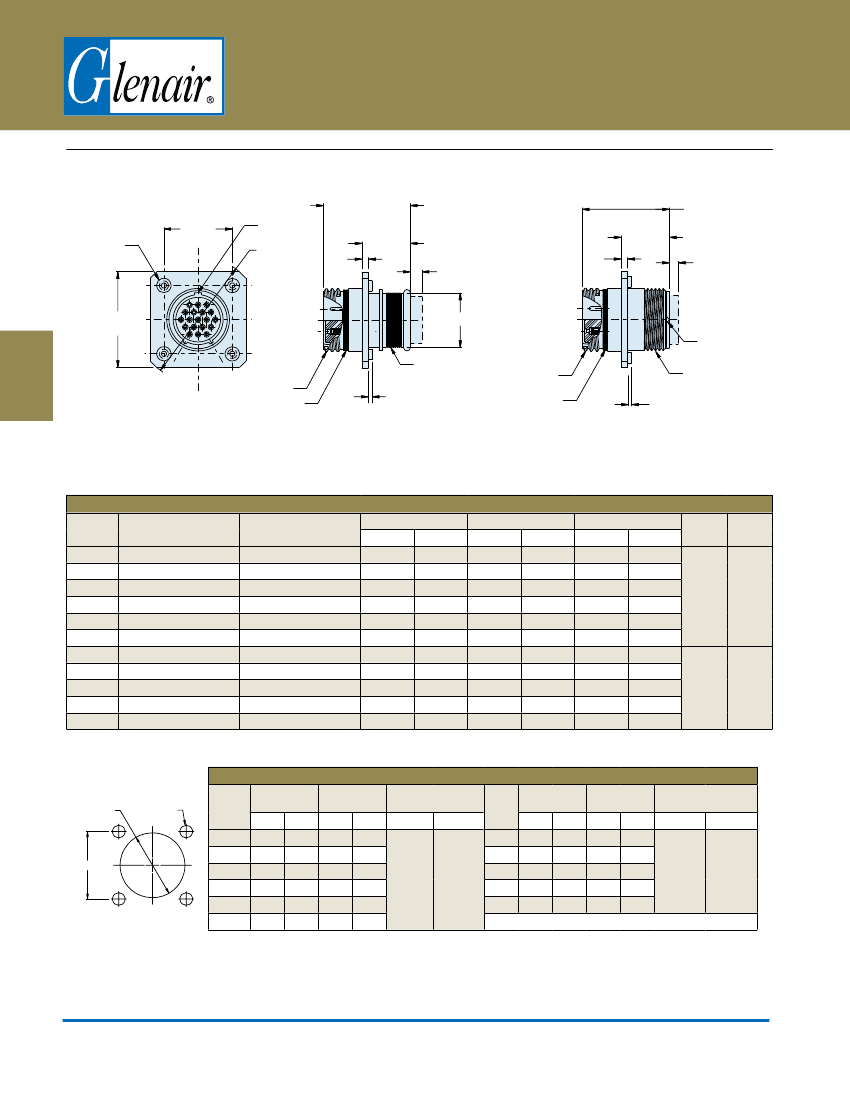

Series 805 Mighty Mouse Triple-Start
Square Flange, Clinch Nut Receptacle
805-003-12/22 and 805-004-12/22 Dimensions
Square flange, rear panel mount receptacle with clinch nut - shell style 12/22
1.030 (26.16) MAX
.430 (3.81) MAX
G
.150 (3.61) MAX
G
1.030 (26.16) MAX
.430 ( 10.92) MAX
.150 (3.81) MAX
øD
ACCY TEETH
KNURLS OR RIDGES
MFG'S OPTION
A THREAD
.095 (2.41) MAX TYP RED FULL MATE
CLINCH NUT
INDICATOR BAND
B THREAD
.095 MAX TYP
CLINCH NUT
Band Platform
805-003
Dimensions
C BSC
in.
0.660
0.723
0.785
0.848
0.909
0.973
1.058
1.255
1.327
1.452
1.570
mm.
16.76
18.36
19.94
21.54
23.09
24.71
26.87
31.88
33.71
36.88
39.88
in.
1.194
1.283
1.371
1.460
1.546
1.637
1.817
2.096
2.197
2.380
2.541
ØD
mm.
30.33
32.59
34.82
37.08
39.27
41.58
46.15
53.24
55.80
60.45
64.54
Accessory Thread
805-004
E SQ
in.
0.920
0.983
1.045
1.104
1.169
1.233
1.378
1.575
1.647
1.772
1.890
mm.
23.37
24.97
26.54
28.04
29.69
31.32
35.00
40.01
41.83
45.01
48.01
F Clinch
Nuts
G
.3750-32 UNEF-2A
.4375-28 UNEF-2A
.5000-28 UNEF-2A
.5625-24 UNEF-2A
.6250-24 UNEF-2A
.6875-24 UNEF-2A
.7500-20 UNEF-2A
.9375-20 UNEF-2A
.9375-20 UNEF-2A
1.0625-18 UNEF-2A
1.1875-18 UNEF-2A
2-56
.030
4-40
.060
Square Flange Panel Cut Out Dimensions
Shell
Size
8
P BSC
P Bsc
In.
0.723
mm.
18.36
In.
.515
.578
0.660 16.76
0.785 19.94
0.848 21.54
0.909 23.09
0.973
24.71
ØR
mm.
13.08
14.68
16.26
17.86
19.43
21.03
.096
.091
In.
ØS
mm.
Shell
Size
15
18
P Bsc
In.
1.058
1.255
26.87
31.88
ØR
mm.
24.21
28.96
30.56
33.73
36.91
.130
.126
In.
.953
1.140
ØS
mm.
9
10
11
12
13
.640
.703
.765
.828
2.43
2.31
19
21
23
1.327 33.71 1.203
1.452 36.88 1.328
1.570 39.88 1.453
3.30
3.20
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
W-30
E-Mail: sales@glenair.com
