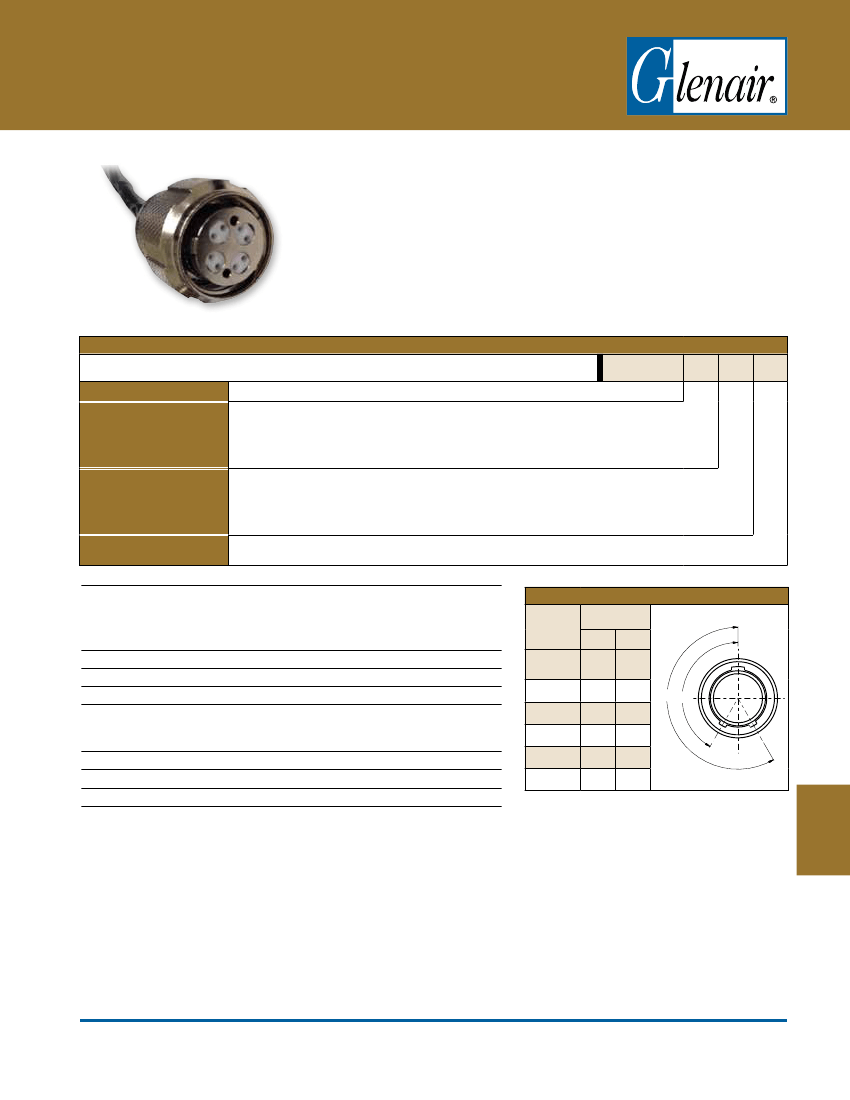

805-109 Ordering Information
CAT-MASTER™
offers improved signal
integrity, reduced crosstalk, and
enhanced attenuation performance
compared to standard shielded
contacts within a size 12 plug.
Unique Design
four twin contact
inserts in a common ground plane
deliver optimized 100 Ohm matched
impedance resulting in low crosstalk for
high performance applications such as
10+ Gigabit Ethernet, HDMI/DVI video,
FibreChannel, eSATA and PCI Express
How To Order
Sample Part Number
Series
805-109
= Plug
-1
= CAT 6, SF/UTP, 26-23 AWG
Cable Type (See Table II)
-2
= CAT 6, U/STP, 26-23 AWG
-3
= CAT 7, S/FTP, 26-23 AWG
-4
= CAT 7, S/FTP, 26-23 AWG
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
805-109
-1
M
A
Shell Material and Finish
Shell Key Position
(See Table I)
Performance Specifications
CAT 7 cable: meets electrical transimission requirements per IEC 11801
Charateristic
@ 1 MHz @ 100 MHz @ 250 MHz @ 600 MHz
Min Return Loss (dB)
30
28
20
12.4
Max Insertion Loss (dB)
0.10
0.20
0.32
0.49
Min Next (dB)
80
72.4
66.4
60.7
CAT 6A cable: meets electrical transimission requirements per TIA-568-C.2
Charateristic
@ 1 MHz @ 100 MHz @ 250 MHz @ 600 MHz
Min Return Loss (dB)
30
28
20
14
Max Insertion Loss (dB)
0.10
0.20
0.32
0.45
Min Next (dB)
75
54
46
34
1. Contact sub-assembly electrical characteristics per iec 11801:
A. Min. Insulation resistance: 100 megohms at 500 VDC
B. Contact to contact proof voltage: 1000 VDC
NOTES
Table I: Key Positions
Key
Position
Normal
(A)
B
C
D
E
F
Key Rotation
A
150°
75°
95°
40°
75°
95°
B
210°
210°
230°
275°
275°
210°
B° A°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
H-33
E-Mail: sales@glenair.com
Series 805
Series 805 Mighty Mouse Triple-Start ACME Thread
CAT–MASTER™ 10Gbase-T CAT 6 & 7 Plug
