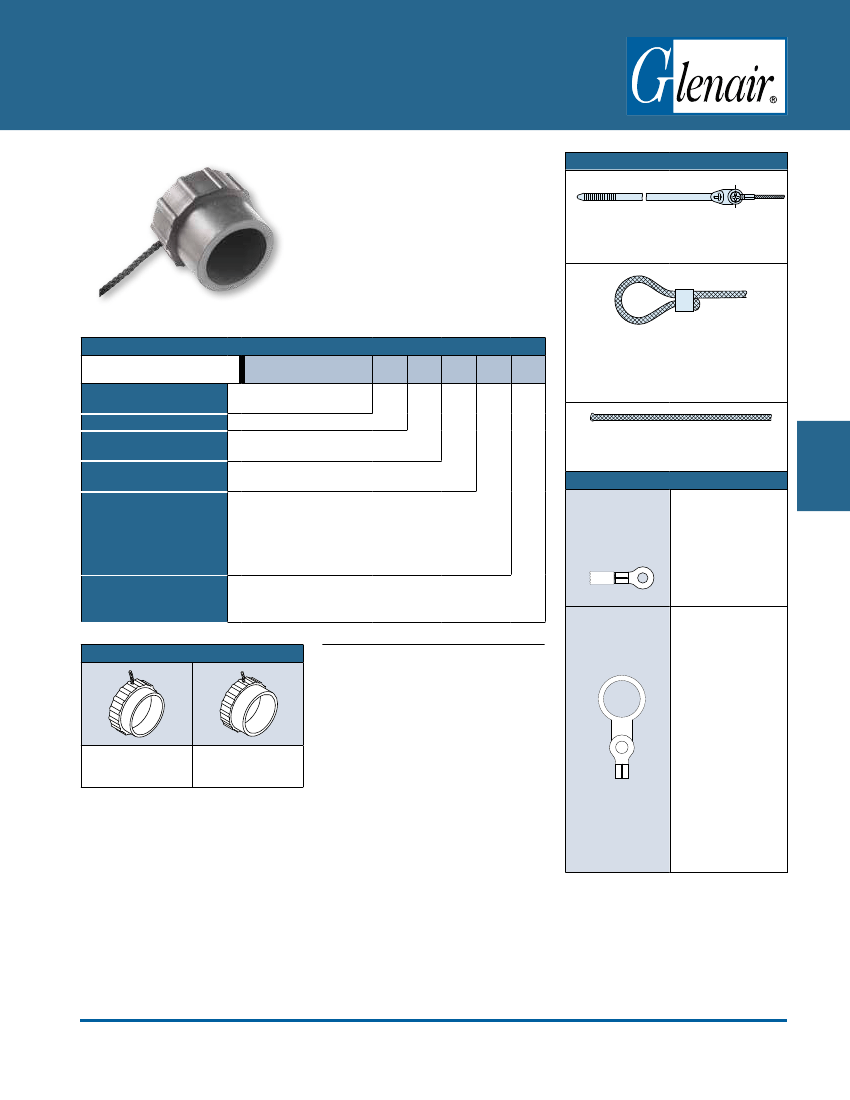

809-190 and 809-191 Ordering Information
Splashproof Molded Rubber Covers
fit all Series 801 and 811 plugs and
receptacles. Braided black nylon lanyard
is available with metal rings, cable tie
or slipknot for attachment to panel
or to cable. -40° to +120° C operating
temperature, fungus resistant per MIL-
STD-810G Method 508.6.
Table II: Attachment Code
Nylon Cable Tie, 1.77 Inch (45mm) Maximum
Wire Bundle Diameter
-WS
How To Order
Sample Part Number
Series
(See Table I)
Shell Size
Lanyard Type
Attachment Length (inches)
809-191
-05
G
6
-SCS
6
809-191
= Plug Cover
809-190
= Receptacle Cover
5, 6, 7, 8, 9, 10, 11, 13, 16, 17, 19, 21
G
= Nylon Rope
Omit for no lanyard
Omit for attachment Type N (No Attachment)
Example: “-6” equals six inch length
-WS
= Nylon Cable
-SCS
= Adjustable Slip Knot
-00
= Lanyard with No Attachment
Lug Terminals =
-01
thru
-07
Solid Ring =
-08
thru
-33
Omit for Neoprene Rubber per ASTM-D-2000 BC610Z1
C
= Conductive Neoprene Blend
(Conductance = 100K Ohms/Sq. Minimum
Adjustable Slip Knot with Crimp Sleeve.
The sleeve can be crimped with pliers for a
permanent attachment.
-SCS
Lanyard With No Attachment (Fused End)
-00
Lug Terminals and Rings
-01
– .126 (3.20) I.D.
-02
– .140 (3.56) I.D.
-03
– .145 (3.68) I.D.
-04
– .156 (3.96) I.D.
-05
– .167 (4.24) I.D.
-06
– .188 (4.78) I.D.
Lug Terminal
-07
– .197 (5.00) I.D.
-08
– .385 (9.78) I.D.
-09
– .445 (11.30) I.D.
-11
– .570 (14.48) I.D.
-13
– .635 (16.13) I.D.
-14
– .695 (17.65) I.D.
-16
– .885 (22.48) I.D.
-19
– 1.070 (27.18) I.D.
-20
– 1.135 (28.83) I.D.
-22
– 1.210 (30.73) I.D.
-23
– 1.275 (32.39) I.D.
-26
– .950 (24.10) I.D.
Solid Ring
-27
– .766 (19.50) I.D.
-29
– .315 (8.00) I.D.
-30
– 1.380 (35.10) I.D.
-32
– .265 (6.70) I.D.
-33
– .510 (13.00) I.D.
Attachment Type
(See Table II)
Material
Table I: Cover Style
809-190
Receptacle Cover
809-191
Plug Cover
Materials and Finishies
• Cover: neoprene rubber blend, black
• Lanyard: .062" (1.57) diameter nylon
cord, black
• Cable tie: 6/6 nylon, black, SST locking
tab
• Ring: stainless steel, black zinc-cobalt
finish
• Crimp sleeve: copper alloy, black zinc-
cobalt finish
NOTES
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-47
E-Mail: sales@glenair.com
Accessories
Series 801 Mighty Mouse and Series 811 High Density
Rubber Protective Cover
