830-003 Overview

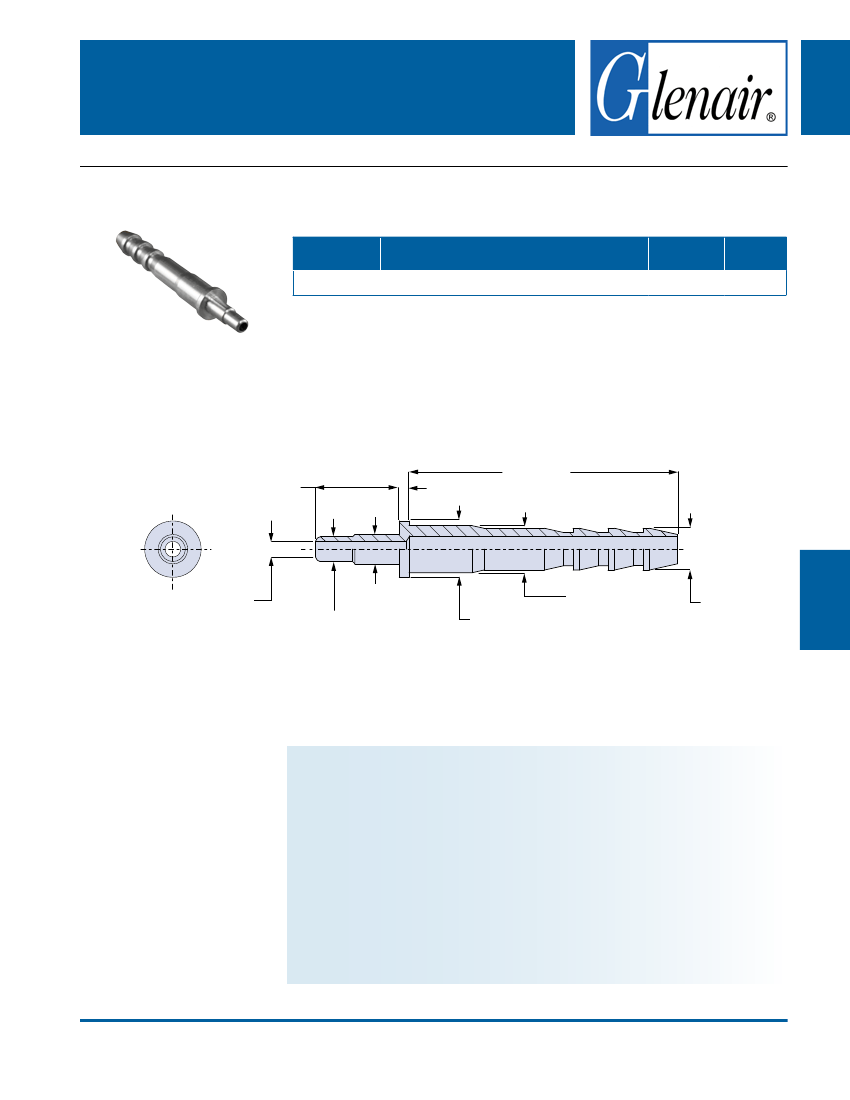

Size #12 Pneumatic Pin Contact

830-0003
Size #12 Pneumatic Pin Contact
Size #12 Pneumatic Contacts
Part
Number
830-003
Contact Type
Pin
For Use With
D38999 All Series, Series 79 and Series 80
Tube I.D.
.094 (2.38)
830-003 supercedes 857-011
.340/.336
(8.64/8.53)
.975 (24.8)
.033/.029 (0.83/0.74)
Ø.050
(1.27)
Ø.079
(2.0)
Ø.094
(2.39)
Ø.182/.179
(4.62/4.54)
Ø.151/.148
(3.84/3.76)
Ø.135/.132
(3.43/3.35)
Stainless steel pneumatic contacts attach to 3/32 inch (2.38) diameter tubing. Contacts snap into
size #12 connector cavities. These pneumatic contacts are rated for 100 PSI maximum air pressure.
No installation tool is required. Remove contacts with plastic extraction tool 809-132.
Material and Finish
Body and Cap: stainless steel, passivated
O-ring: fluorosilicone
Washers: PTFE
Specifications
Notes
© 2011 Glenair, Inc.
Contact may be used for air pressures up to 100±10% PSIG
Fits #12 socket contact cavities in Series 79 connectors
High pressure pneumatic contacts available. Consult factory for more information.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-7
Special
Purpose
D
