Series 841 Stinger™
Connectors
Sample Part Number
Series (See Table I)
Shell Style
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table II)
A
= Normal
© 2014 Glenair, Inc.

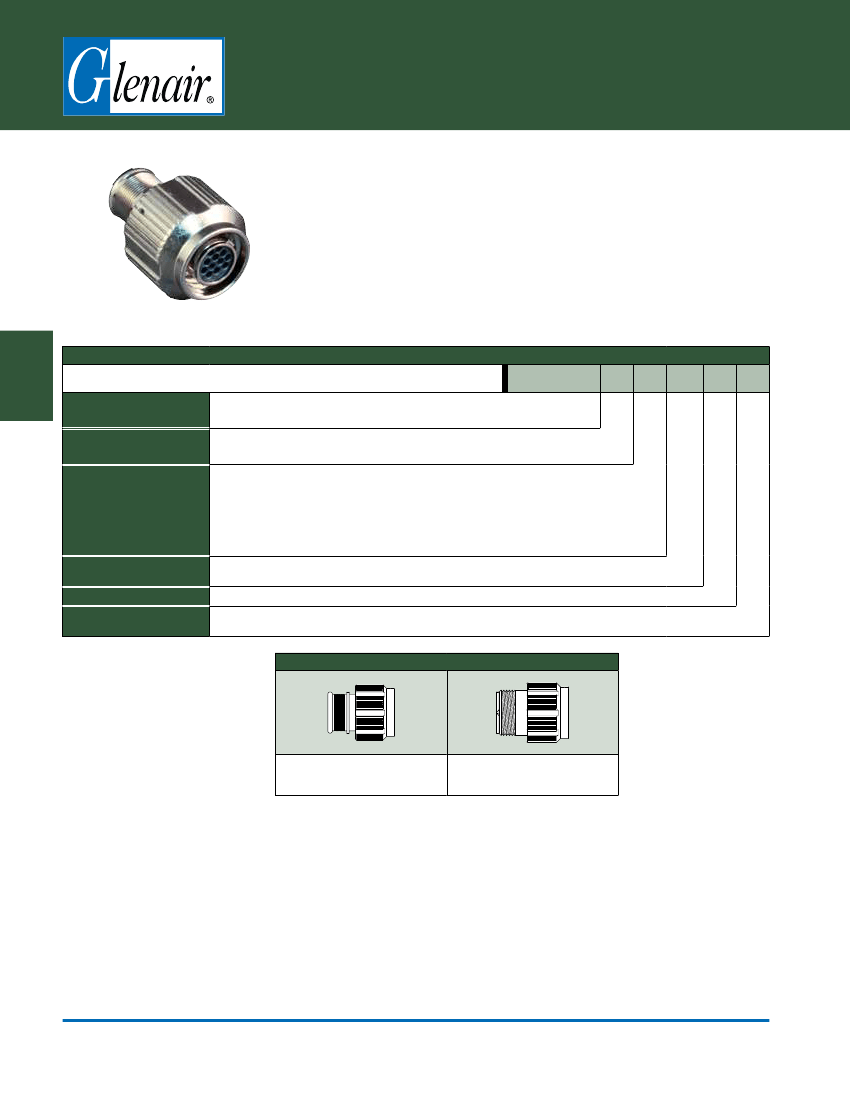

Series 841 Stinger™ Mighty Mouse Double-Start
ACME Thread Plug
841-001 and 841-002 Ordering Information
Series 841 Mighty Mouse Plug with Stinger™ Contacts
these durable, low
insertion force front release size #28 contacts feature integrated retention clips
and O-ring sealing for optimized performance. All 841 series shells feature a
double–start modified stub ACME mating thread for improved protection against
cross–mating and thread damage. Connector shells are machined aluminum or
stainless steel. Available in shell sizes 5 through 11 in 7 contact arrangements, all
arrangements include a minimum of two guide pins.
How To Order
841-001
841-001
= Plug with Integral Banding Porch
841-002
= Plug with Accessory Thread
-16
= Plug with Anti-Decoupling Spring
-26
= Self-Locking Plug with Ratchet Mechanism
M
= Aluminum/Electroless Nickel RoHS Compliant
MT
= Aluminum/ Nickel-PTFE RoHS Compliant
NF
= Aluminum/Cadmium with Olive Drab Chromate
ZNU
= Aluminum/Zinc-Nickel with Black Chromate
Z1
= Stainless Steel/Passivated RoHS Compliant
5-5, 6-10, 7-20, 8-28, 9-40, 10-58, 11-71
P
= Pin with O-ring
S
= Socket with O-ring
D
= Pos. D
E
= Pos. F
F
= Pos. F
-16
M
6-10
P
A
B
= Pos. B
C
= Pos. C
Table I: Series
841-001
Banding Platform
841-002
Rear Accessory Thread
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
M-4
