M
Series 841 Stinger™
Connectors
Sample Part Number
Series
(See Table I)
Shell Style
(See Table II)
Material and Finish
Contact Type
Shell Key Positions
(See Table I)
A
= Normal

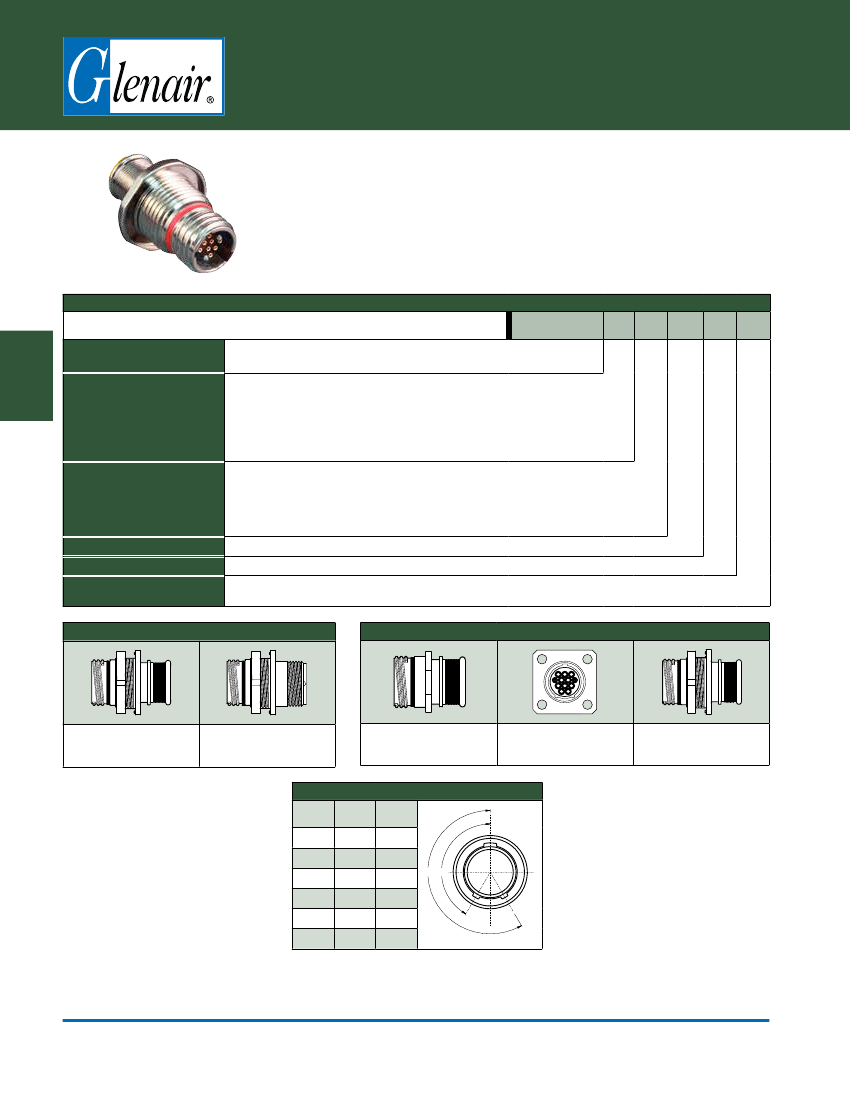

Series 841 Stinger™ Mighty Mouse Double-Start
ACME Thread Receptacle
841-003 and 841-004 Ordering Information
In-Line
Shell Style 01
Rear Panel Jam Nut Mount (Shown)
Shell Style 07
Square Flange Mount
Shell Style 02/12
How To Order
841-003
841-003
= Receptacle with Integrated Banding Porch
841-004
= Receptacle with Accessory Thread
-01
= In-Line Receptacle for Free-Hanging Cables
-02
= Thru Hole Square Flange Receptacle for Front or Rear Panel Mounting
-12
= Square Flange Receptacle for Rear Panel Mounting with “Non-Locking” Clinch
Nuts
-22
= Square Flange Receptacle for Rear Panel Mounting with “Locking” Clinch Nuts
-07
= Jam Nut Receptacle for Rear Panel Mounting
M
= Aluminum/Electroless Nickel RoHS Compliant
MT
= Aluminum/Nickel-PTFE RoHS Compliant
NF
= Aluminum/Cadmium with Olive Drab Chromate
ZNU
= Aluminum/Zinc-Nickel with Black Chromate
Z1
= Stainless Steel/Passivated RoHS Compliant
P
= Pin with O-ring
B
= Pos. B
S
= Socket with O-ring
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
-07 ZNU 6-10
P
A
Shell Size - Insert Arrangement
5-5, 6-10, 7-20, 8-28, 9-40, 10-58, 11-71
Table I: Series
Table II: Shell Style
841-003
841-004
Banding Platform
Rear Accessory Thread
Style -01
In-line
Style -02/-12/-22
Square Flange
Style -07
Jam Nut
Table III: Key Positions
A°
A
B
C
D
E
F
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
B° A°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
M-6
E-Mail: sales@glenair.com
