M
Series 845 Stinger™
Connectors
Sample Part Number
Series
(See Table I)
Shell Style
(See Table II
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table II)
P
= Pin with O-ring
A
= Normal
B
= Pos. B

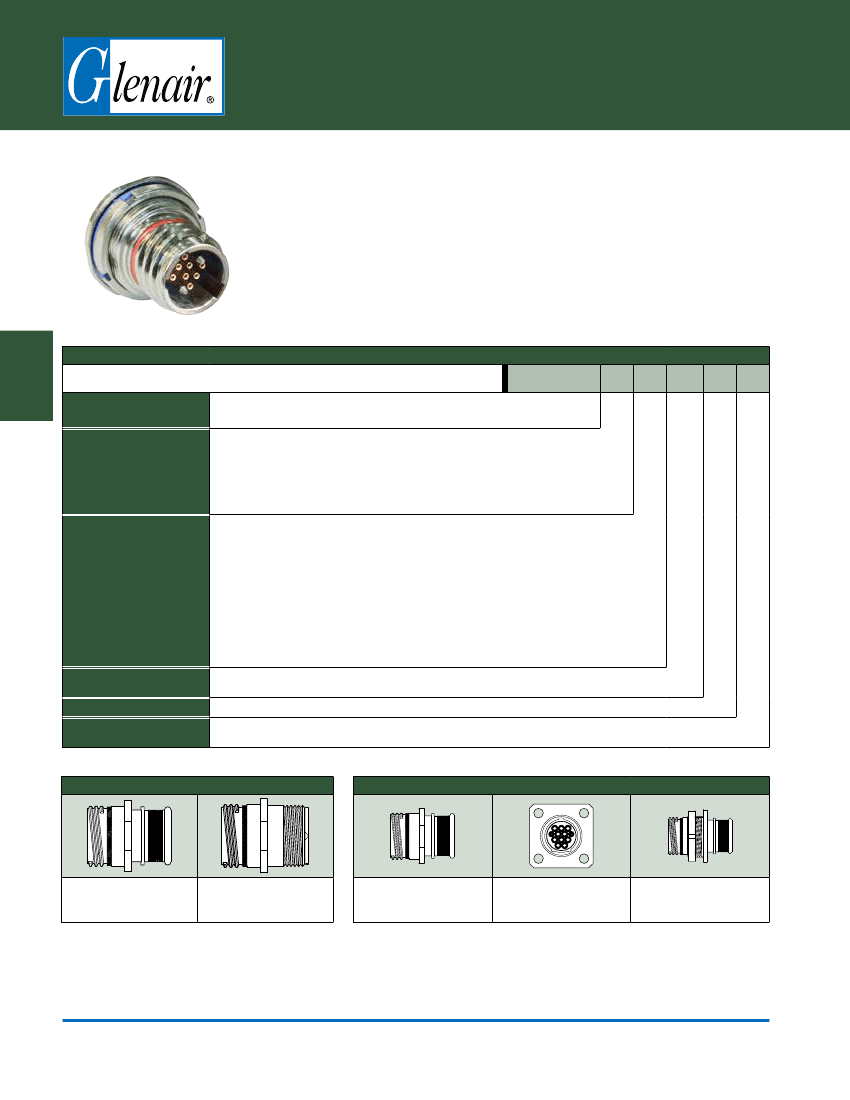

Series 845 Stinger™ Mighty Mouse
Triple–Start ACME Thread Receptacle
845-003 and 845-004 Ordering Information
In-Line
Shell Style 01
Rear Panel Jam Nut Mount (Shown)
Shell Style 07
Square Flange Mount
Shell Style 02/12
How To Order
845-004
845-003
= Plug with Integral Banding Porch
845-004
= Plug with Accessory Thread
-01
= In-line
-02
= Square Flange Front or Rear Mount
-12
= Square Flange Rear Mount Non-Locking Clinch Nuts
-22
= Square Flange Rear Mount Locking Clinch Nuts
-07
= Jam Nut for Rear Panel Mounting
C
= Aluminum/Black Anodize (Non-Conductive); RoHS Compliant
M
= Aluminum/Electroless Nickel; RoHS Compliant
MT
= Aluminum/Nickel-PTFE RoHS Compliant
NF
= Aluminum/Cadmium with Olive Drab Chromate
ZN
= Aluminum/Zinc-Nickel with Olive Drab Chromate
ZNU
= Aluminum/Zinc-Nickel with Black Chromate
Z1
= Stainless Steel/Passivated; RoHS Compliant
ZB
= Stainless Steel/Olive Drab Chromate over Cadmium
ZC
= Stainless Steel/Zinc Cobalt Alloy/Black Chromate
8-10, 9-20, 10-28, 11-40, 12-58, 13-71
S
= Socket with O-ring
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
-07
M
8-10
P
A
Table I: Series
Table II: Shell Style
845-003
Receptacle with Banding
Platform
845-004
Receptacle with Accessory
Thread
-01
Receptacle with Banding
Platform
-02, -12, -22
Square Flange
-07
Jam Nut
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
M-18
E-Mail: sales@glenair.com
