BNC Female Connector Crimp/Solder Attachment
For RG8X, LMR-240, PE-C240
TECHNICAL DATA SHEET
BNC Female Connector Crimp/Solder Attachment For RG8X, LMR-240, PE-C240
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Female
RG8X,LMR-240,PE-C240
Crimp/Solder
Straight
PE44642
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.135 [28.83]
0.453 [11.51]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
BNC Female
Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
BNC Female Connector Crimp/Solder Attachment For RG8X, LMR-240, PE-C240 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
BNC Female Connector Crimp/Solder Attachment For RG8X, LMR-240, PE-C240 PE44642
URL:
http://www.pasternack.com/bnc-female-straight-crimp-rg8x-b7808a-pe44642-p.aspx
PE44642 REV
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44642

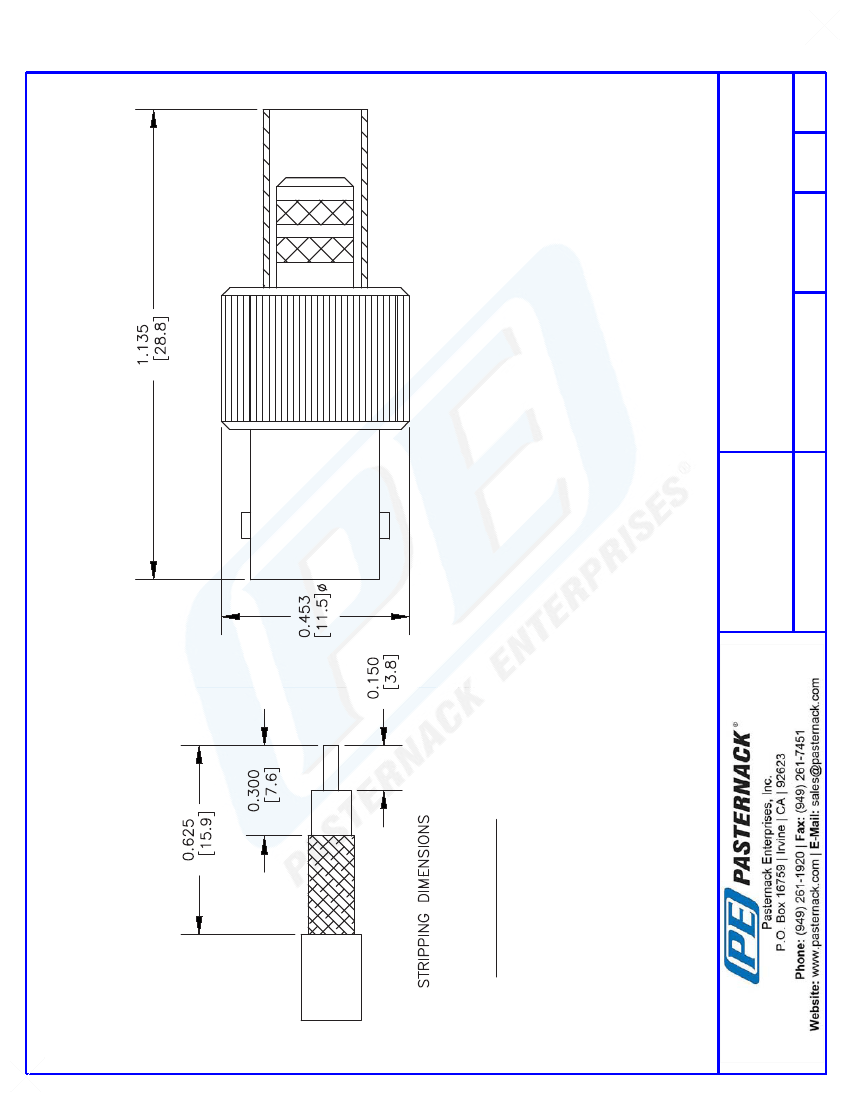

CAD Drawing
BNC Female Connector Crimp/Solder Attachment For RG8X, LMR-240, PE-C240
PE44642 REV
CRIMP SIZE REQUIRED
CONTACT: .068" HEX CRIMP TOOL
FERRULE: .255" HEX CRIMP TOOL
PE44642
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
061009
SCALE N/A
SIZE A
XXXX
2
