PE91120 Overview

2.4mm Male to Mini SMP Female Adapter

2.4mm Male to Mini SMP Female Adapter
TECHNICAL DATA SHEET
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
2.4mm Male
50 Ohms
MIL-STD-348B
Mini SMP Female
50 Ohms
SMP DESC 94007
Standard
Straight
PE91120
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
DC to 50
1.25:1
Mechanical Specifications
Temperature
Operating Range,deg C

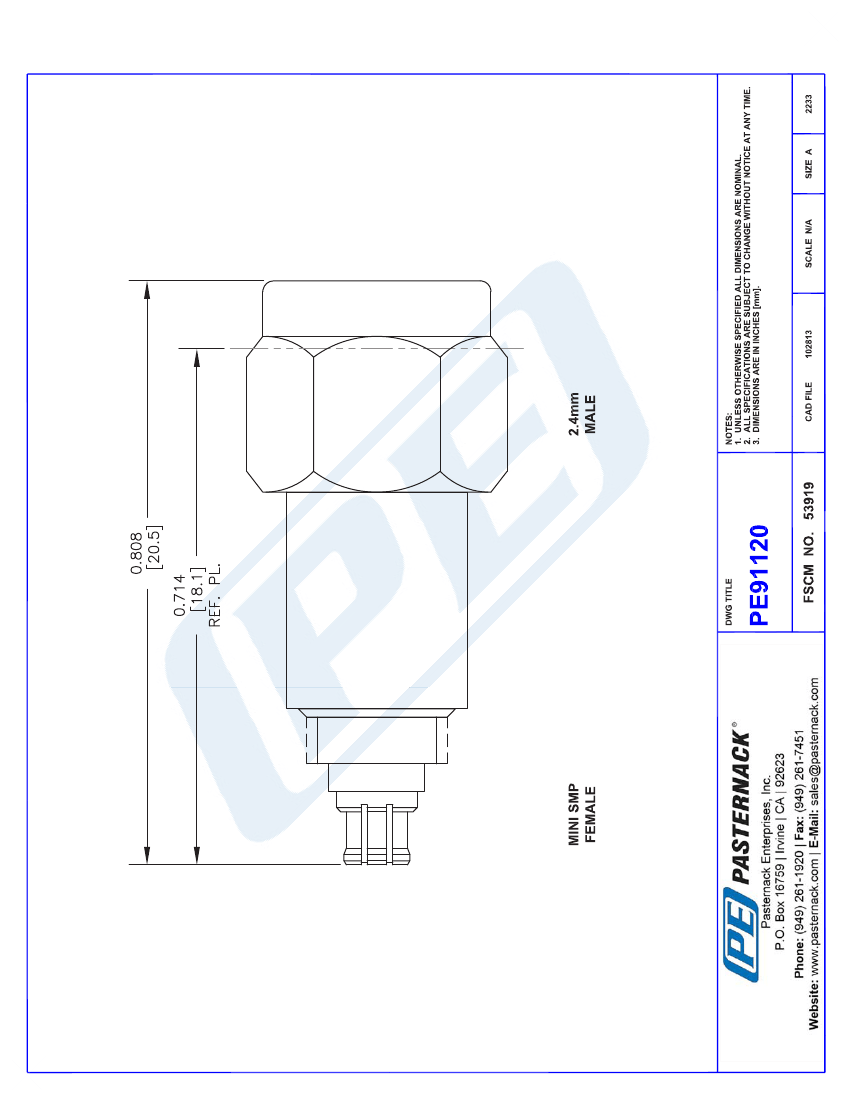

Size
Length, in [mm]
Width/Dia., in [mm]
.
-55 to +125
0.808 [20.52]
0.312 [7.92]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, Inch
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Outer Conductor Material and Plating
Outer Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
2.4mm Male
Beryllium Copper, Gold
MIL-G-45204
Passivated Stainless Steel
MIL-G-45204
5/16
Beryllium Copper, Gold
MIL-G-45204
PTFE
Mini SMP Female
Beryllium Copper, Gold
MIL-G-45204
Beryllium Copper, Gold
MIL-G-45204
Beryllium Copper, Gold
MIL-G-45204
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.4mm Male to Mini SMP Female Adapter
PE91120
PE91120 REV 1.0
1
