SMA Male to Mini SMP Male Smooth Bore Adapter
TECHNICAL DATA SHEET
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
SMA Male
50 Ohms
Smooth Bore Mini SMP Male
50 Ohms
Standard
Straight
PE91303
Electrical Specifications
Frequency Range
Maximum VSWR
DC to 18 GHz
1.2:1

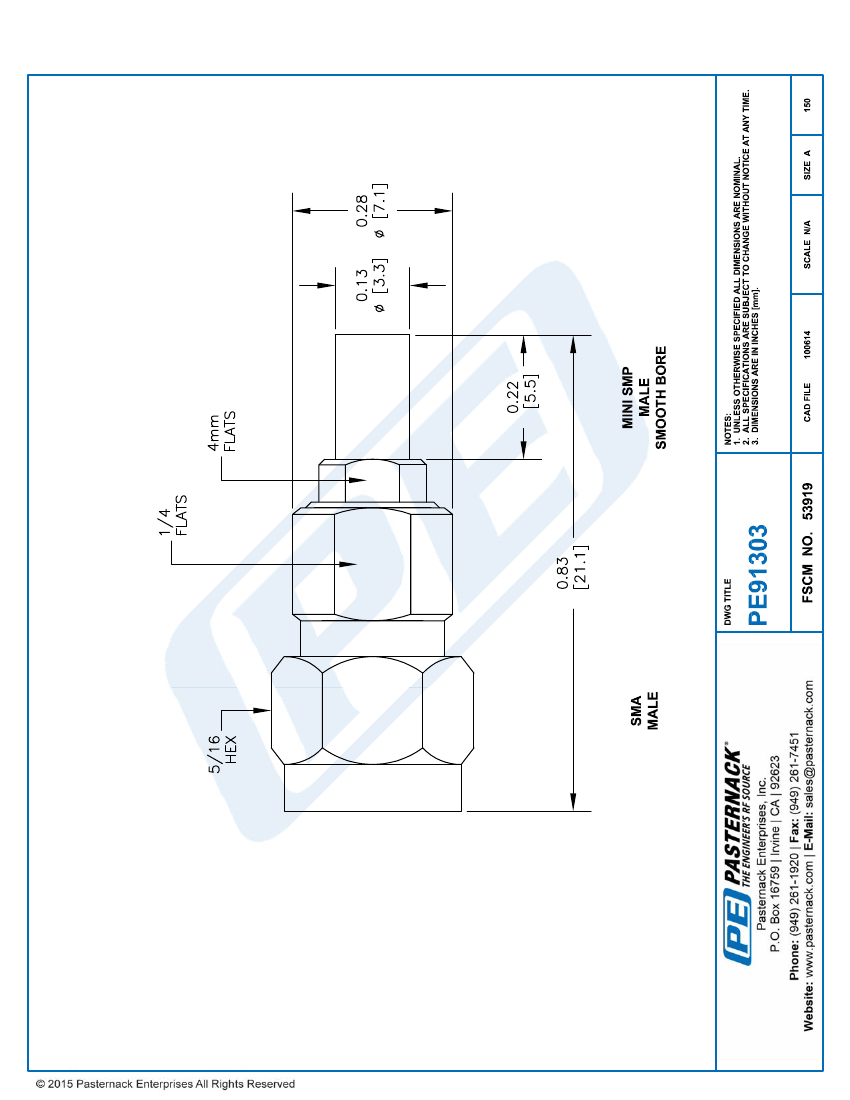

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.831 [21.11]
0.279528 [7.1]
Connector 1
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, inch
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
SMA Male
Beryllium Copper, Gold
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
PTFE
Smooth Bore Mini SMP Male
Beryllium Copper, Gold
Passivated Stainless Steel
PTFE
Environmental Specifications
Temperature
Operating Range
-45 to +120 deg C
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant
06/06/2014
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to Mini SMP Male Smooth Bore Adapter PE91303
PE91303 REV 1.0
1
SMA Male to Mini SMP Male Smooth Bore Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
• Values at +25 °C, sea level
SMA Male to Mini SMP Male Smooth Bore Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to Mini SMP Male Smooth Bore Adapter PE91303
URL:
http://www.pasternack.com/sma-male-mini-smp-male-straight-adapter-pe91303-p.aspx
PE91303
PE91303 REV 1.0
2
