24IPN12-15-UC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 24IPN12-15-UC

24IPN12-15-UC: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 12W, Hybrid, METAL PACKAGE-5; CategoryPower/power management The power supply circuit; File Size211KB，1 Pages; ManufacturerIBEK Electronic Ag

Download Datasheet Parametric View All

24IPN12-15-UC Overview

DC-DC Regulated Power Supply Module, 1 Output, 12W, Hybrid, METAL PACKAGE-5

24IPN12-15-UC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	MODULE
package instruction	, MODULE,6LEAD,0.8
Contacts	5
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	R-MDMA-P5
length	50.8 mm
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	65 °C
Minimum operating temperature	-40 °C
Maximum output current	0.8 A
Maximum output voltage	15.15 V
Minimum output voltage	14.85 V
Nominal output voltage	15 V
Package body material	METAL
Encapsulate equivalent code	MODULE,6LEAD,0.8
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	10.7 mm
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	12 W
Fine-tuning/adjustable output	NO
width	25.4 mm

Preview

Download Datasheet

View All

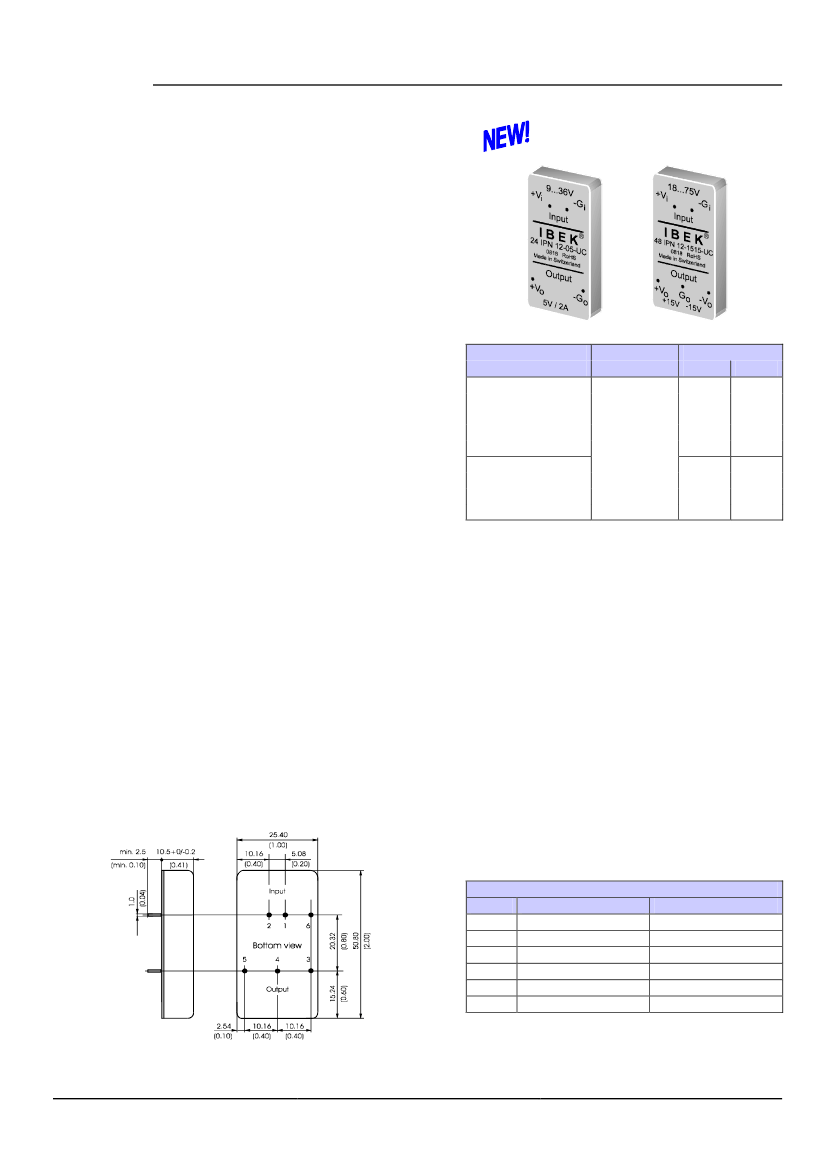

IBEK

€

www.ibek.ch

Single & double outputs

Input to output isolated

12 Watt

DC-DC-Converter

Family IPN12

•

Ultra wide 1:4 input voltage ranges

Shutdown input (optional)

Very high efficiency up to 85%

Low output voltage noise

Continuous no-load and short-circuit proof

2" x 1" x 0.41” case with industrial standard pinning

No derating

Made in Switzerland, accordingly ISO 9001:2000

2 years warranty

Standard Types

Single output

xx IPN12-03-UC

RoHS

xx IPN12-05-UC

RoHS

xx IPN12-12-UC

RoHS

xx IPN12-15-UC

RoHS

Double output

xx IPN12-0505-UC

RoHS

xx IPN12-1212-UC

RoHS

xx IPN12-1515-UC

RoHS

Electromagnetic emission EN 55022 < A

Conducted and radiated emissions

24 IPN

48 IPN

Input voltage

VDC

9…36

(nominal 24)

18…75

(nominal 48)

Output

VDC

3.3

€ 5

€ 12

€ 15

2400

2000

1000

800

€ 1000

€ 500

€ 400

No load input current

mA typ.

Input current in shutdown condition 1.3 mA typ.

Switching frequency

400 kHz typ.

Output voltage accuracy

• 1% max.

Static line regulation

€ 0.3% typ.

Static load regulation FL to 10%

0…0.5% typ.

Output voltage noise (20 MHz BW) 50 mVpp typ.

; 3.3 VDC outputs 30 mVpp typ.

Efficiency

80% to 85% typ.

I/O Electric strength test voltage

1500 VDC

Coupling capacitance

1000 pF

Shutdown input (SD) :

Apply -0.3…+0.6 VDC to shut down (switch off) the

output voltage(s). Normal operation with open pin.

Ambient temperature range

-40…+65‚C

Case temperature range

-40…+100‚C

Storage temperature range

-55…+105‚C

Case material

Metal with plastic bottom cover, UL94 V-0 rated

MTBF, GB @ 40‚C case



1.500.000 hours

(MIL-HDBK-217F, Notice 2)

To complete type number replace "xx" by the required nominal

input voltage, e.g. 24 IPN12-05-UC

RoHS

Double outputs should have symmetrical load conditions to

comply with the specifications listed on the left side.

Modifications and customs are available upon request.

The negative (-) line of a double output unit requires two multi-layer ceramic capacitors of 0.47F installed across the output pins to achieve this value.

Dimensions in mm (inches)

Pin Configuration

Single output

+Vi

-Gi

+Vo

No pin

-Go

Double output

+Vi

-Gi

+Vo

-Vo

Optional shutdown pin. If required replace C by G on type

number, e.g. 24 IPN12-05-UG

RoHS

Specifications subject to change without notice

15.12.2008

More power with IBEK

€

Page 18
