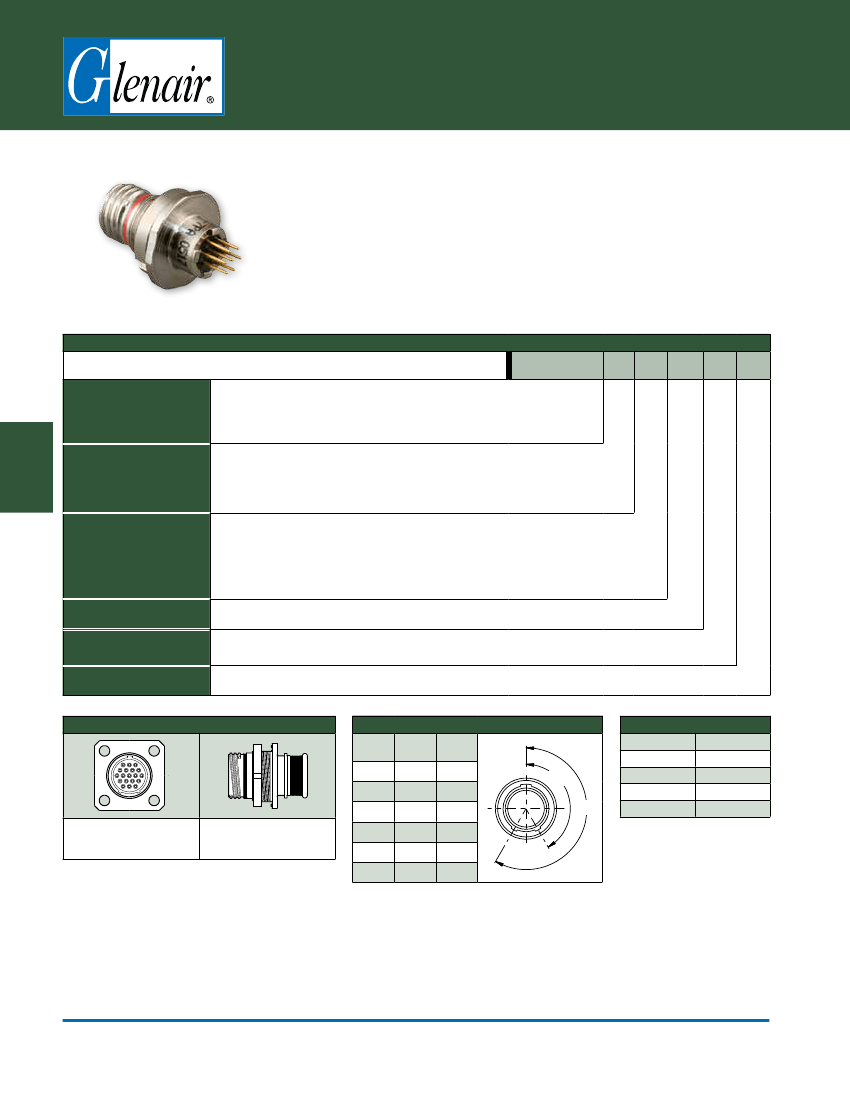

Series 801 Mighty Mouse
Double-Start ACME Thread PCB Receptacle
801-011 and 801-033 Ordering Information
Printed Circuit Board Receptacles
feature low profile shells for minimum
protrusion inside enclosures and integral standoffs for board washout. Contacts
are non-removable.
Water Immersion, Unmated
Specify 801-011 connectors for applications where
open face water immersion is not a requirement. For MIL-STD-810 Method 512G
immersion requirements, specify 801-033 watertight connectors . These 801-033
connectors are specially sealed ("MOD-518") and are 100% tested to maintain a
helium leak rate of 1 x 10
-4
cc/second at one atmosphere pressure differential from
-40C to +70C.
How To Order
Sample Part Number
Series
D
Series 801
Shell Style
(See Table I)
Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table II)
A
= Normal
801-011
801-011
= Receptacle for Solder Cup or PCB Termination, with Standard Epoxy
801-033
= Receptacle for Solder Cup or PCB Termination, With Special “MOD-518”
Sealing For Open Face (unmated) Water Immersion Requirements. 100% Leak
Tested.
-02
= Square Flange Front or Rear Mount
-12
= Square Flange Rear Mount Non-Locking Clinch Nuts
-22
= Square Flange Rear Mount Locking Clinch Nuts
-07
= Jam Nut
M
= Aluminum / Electroless Nickel RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated RoHS Compliant
See Contact Arrangements page D-2
E
= Pin, Solder Cup
F
= Socket, Solder Cup
P
= Pin, PC Tail
S
= Socket, PC Tail
-02
M
6-7
P
A
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
Table I: Shell Style
Table II: Alternate Keyway Positions
A°
A
B
C
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
A°
B°
PC Tail Dimensions
Contact Size
#23
#20
#16
#12
ØS
Ø .018/.022
Ø .028/.024
Ø .060/.064
Ø .092/.096
Style -02/-12/-22
Square Flange
Jam Nut
Style -01
D
E
F
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-20
