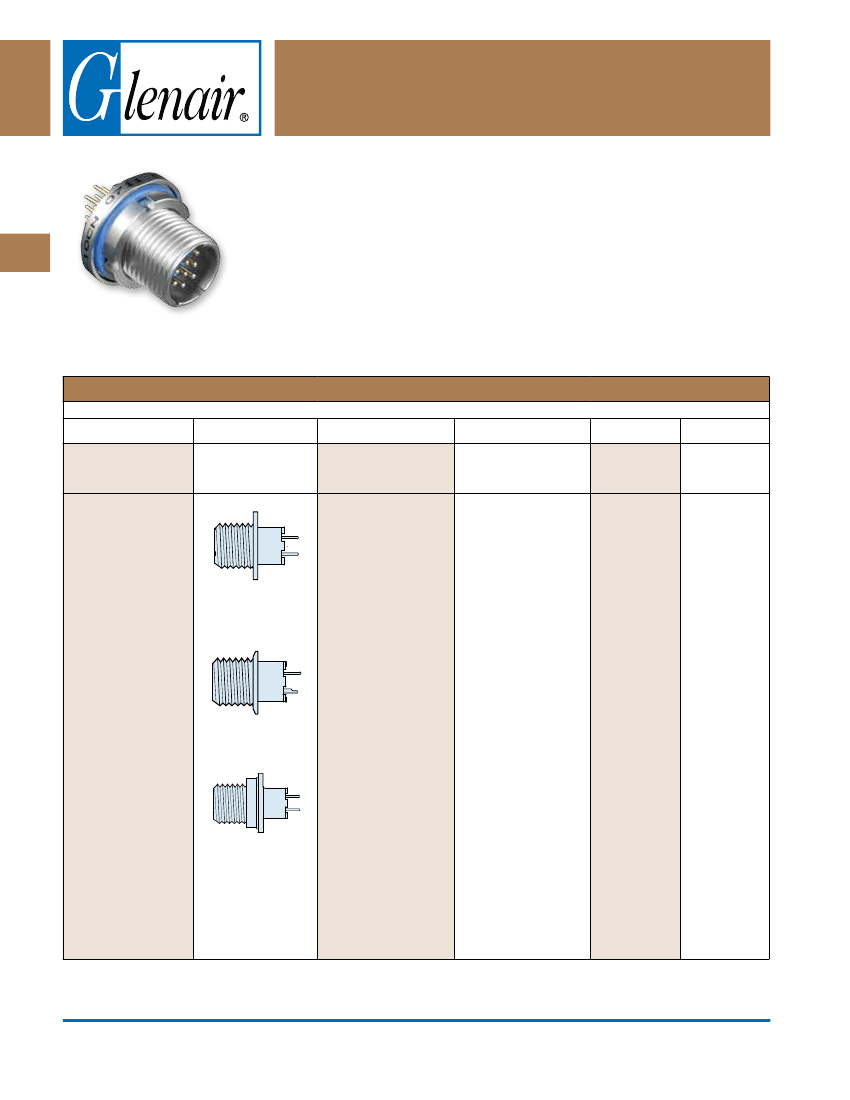

800-013
Series 800 Mighty Mouse Hermetic Receptacles
with UN Mating Thread
How to Order Information
Series 80
Mighty Mouse
C
Series 800 Hermetic
Series 800 Hermetic Receptacles
feature 304L stainless steel shells,
fused vitreous glass insulators and
Alloy 52 iron alloy contacts.
1 X 10
-7
cc/second
maximum helium
leak rate.
Three Shell Styles:
solder mount,
jam nut or square flange.
Solder Cup Contacts
for wire
attachment, or
PC Tail Contacts
for
attachment to flexible or rigid circuits.
HOW TO ORDER
800-013
Series
800-013
-07
Shell Style
Sample Part Number
Z1
7-10
P
Contact
Type
P
Z
Shell Key
Position
Normal
Shell Material /
Finish
Z1
Shell Size- Insert
Arrangement
N
X
Y
Z
Hermetic Receptacle
Stainless Steel /
Passivated
See Page C-4 for Contact
Arrangements
Square Flange
-02
Stainless Steel /
Nickel Plated
ZL
Pin, Solder
Cup
C
Pin, PC Tail
Pos. X
-03
Solder Mount
*Titanium and Inconel
shell materials are
available. Consult
factory for ordering
information.
®
S
Socket,
Solder Cup
Pos. Y
Pos. Z
D
Sockets,
PC Tail
-07
Jam Nut
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-44
E-Mail: sales@glenair.com
Torque Values and Panel Cutouts
SERIES 800 RECOMMENDED TORQUE VALUES
Coupling Torque
In-Lbs.
N-m
Shell
Size Min. Max. Min. Max.
5
13 17 1.5 1.9
6
18 22 2.0 2.5
7
20 25 2.3 2.8
8
30 40 3.4 4.5
9
30 40 3.4 4.5
10
35 45 4.0 5.1
12
35 45 4.0 5.1
Jam Nut
In-Lbs.
N-m
Min. Max. Min. Max.
20
25 2.2 2.8
20
25 2.2 2.8
20
25 2.2 2.8
20
25 2.2 2.8
25
30 2.8 3.3
25
30 2.8 3.3
25
30 2.8 3.3
Backshell
In-Lbs.
N-m
Min. Max. Min. Max.
13 17 1.5 1.9
18 22 2.0 2.5
30 40 3.4 4.5
30 40 3.4 4.5
35 45 4.0 5.1
35 45 4.0 5.1
35 45 4.0 5.1
HERMETIC LEAK RATE MOD CODES
Designator
–585A
–585B
–585C
Required Leak Rate
1 x 10
-10
cc Helium per second
1 x 10
-9
cc Helium per second
1 x 10
-8
cc Helium per second
SERIES 800 PANEL CUTOUTS
øB
A
FLAT
Shell
Size
5
6
7
8
9
10
12
In.
.302 / .298
.365 / .361
.424 / .420
.486/ .482
.543/ .539
.617/ .613
.725/ .721
A Flat
mm.
7.67/ 7.57
9.27/ 9.17
10.77/ 10.67
12.34/ 12.24
13.79/ 13.69
15.67/ 15.57
18.42/ 18.31
In.
.318
.386
.449
.510
.574
.635
.760
øB
mm.
8.08
9.80
11.40
12.95
14.58
16.12
19.30
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-45
E-Mail: sales@glenair.com
Series 80
Mighty Mouse
Series 800 Mighty Mouse Hermetic Receptacles
with UN Mating Thread
C

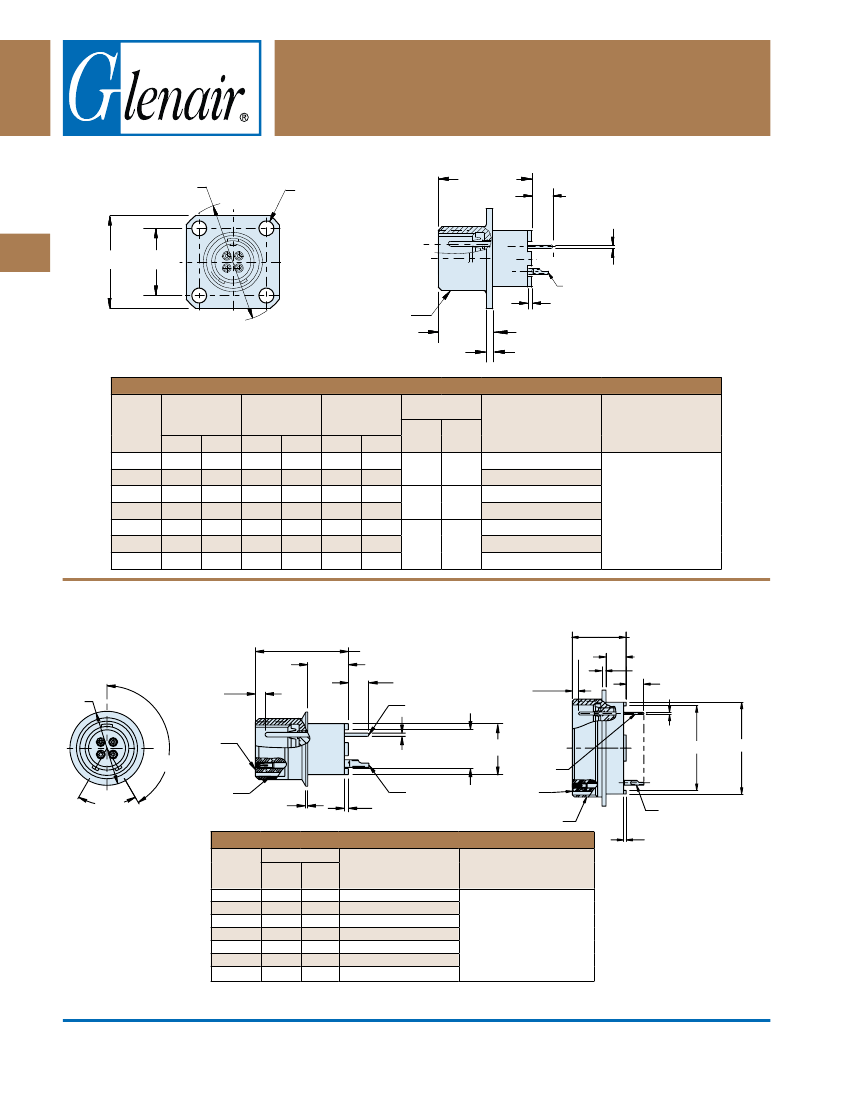

800-013-02 and 800-013-03
Series 800 Mighty Mouse Hermetic Receptacles
Square Flange Mount with UN Mating Thread
Connector Dimensions
.725 (18.4)
MAX
Series 80
Mighty Mouse
ØC
800-013-02 Square Flange Dimensions
4X Ø D
THRU HOLE
.125 (3.2) MIN
C
A SQ
B BSC
ØF
SOLDER CUP
E THREAD
.039 (.10) SHELL SIZE 5 & 6
.050 (1.27) SHELL SIZE 7 THRU 12
4X .025 (.64) STANDOFF
.320 (8.1) SHELL SIZE 5 & 6
.460 (11.7) SHELL SIZE 7 THRU 12
800-013-02 SQUARE FLANGE HERMETIC RECEPTACLE DIMENSIONS
Shell
Size
5
6
7
8
9
10
12
A SQ
In.
mm.
.527
.588
.650
.710
.938
.938
1.031
13.39
14.92
16.51
18.03
23.83
23.83
26.19
B BSC
In.
mm.
.363
.423
.483
.542
.719
.719
.812
9.22
10.74
ØC
In.
mm.
.680
.750
17.27
19.05
21.08
23.83
31.75
31.75
34.93
ØD
± .005 ± 0.13
.094
.096
.091
.130
2.39
2.44
2.31
3.30
In.
mm.
E Threads
Mating
.3125-28 UN-2A
.5000-32 UN-2A
.4375-28 UNEF-2A
.5000-32 UN-2A
.5625-32 UN-2A
.6250-32 UN-2A
.7500-28 UN-2A
ØF
PC TAIL DIA.
± .002 (0.05)
Size #23
.020 (0.51)
Size #20
.026 (0.66)
Size #16
.062 (1.57)
Size #12
.094 (2.34)
12.27
.830
13.77
.938
18.26 1.250
18.26 1.250
20.62 1.375
800-013-03 Solder Mount Dimensions
Shell Size 5 and 6
.575 (14.6) MAX PIN
.675 (17.1) MAX SOCKET
.125 (3.2) MIN
PC TAIL
Shell Size 7 thru 12
.525 (13.3) MAX PINS
.650 (16.5) MAX SOCKETS
.180 (4.6)
.039 (1.0)
.125 (3.2 MIN)
.180
(4.6)
ØM
.060 (1.5)
PIN CONTACT
LOCATION
1
4
2
3
.060 (1.5)
PIN CONTACT
ø DD
LOCATION
ø CC
PC TAIL
CONTACT
SOCKET
INSERT
B THREAD
150°
SOCKET
INSERT
B THREAD
øC
øC
)
SOLDER CUP
.025 (0.6) HEIGHT
4X 080 WIDTH
ø DD
ø CC
60°
.013 (0.3)
SOLDER CUP CONTACT
4X .025 HEIGHT
4X 080 WIDTH
Shell
Size
5
6
7
8
9
10
12
© 2013 Glenair, Inc.
ØA
In.
.400
.455
.520
.650
.764
.775
.858
DIMENSIONS
B Threads
.3125-28 UN-2A
.3750-28 UN-2A
.4375-28 UNEF-2A
.5000-32 UN-2A
.5625-32 UN-2A
.6250-32 UN-2A
.7500-28 UN-2A
U.S. CAGE Code 06324
mm.
10.16
11.56
13.21
16.51
19.41
19.69
21.79
Ø C PC TAIL DIA.
± .002 (0.05)
Size #22
.020 (0.51)
Size #20
.026 (0.66)
Size #16
.062 (1.57)
Size #12
.094 (2.34)
Printed in U.S.A.
Dimensions in Inches (millimeters) are subject to change without notice.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-46
E-Mail: sales@glenair.com

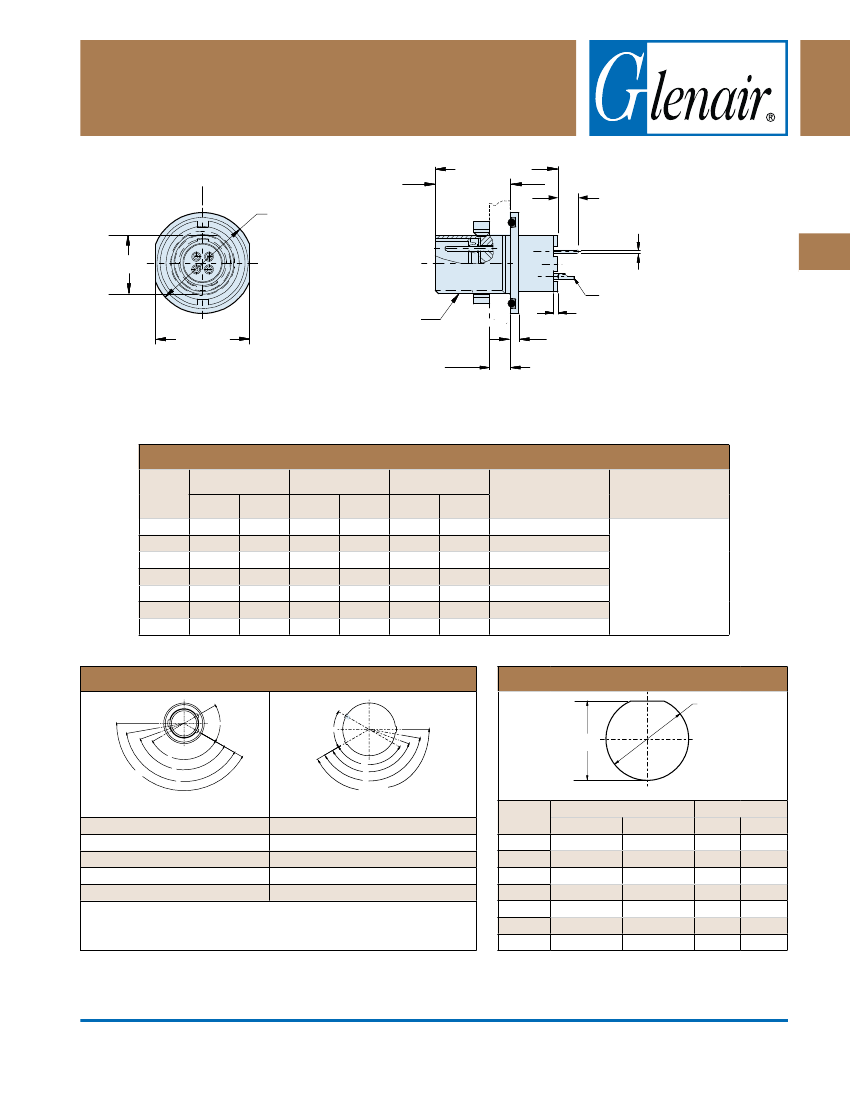

Jam Nut Mount with UN Mating Thread
Hermetic Connector Dimensions
.725 (18.4) MAX
.460 (11.7)
ØA
.125 (3.2) SHELL SIZE 5 & 6
.168 (4.27) SHELL SIZE 7 THRU 12
C FLAT
ØE
SOLDER CUP
D THREAD
B FLATS
.125 (3.2) MAX
PANEL THICKNESS
SHELL SIZE 5 & 6
.100 (2.5) MAX
PANEL THICKNESS
SHELL SIZE 7 & UP
4X .025 (.64) STANDOFF
.050 (1.3) SHELL SIZE 5 & 6
.093 (2.4) SHELL SIZE 7 THRU 12
DIMENSIONS
Shell
Size
5
6
7
8
9
10
12
ØA
In.
.541
.610
.670
.775
.875
.980
1.062
B FLATS
mm.
In.
.500
.562
.635
.735
.806
.940
.986
C
In.
.285
.352
.411
.473
.530
.604
.712
mm.
12.70
14.27
16.13
18.67
20.47
23.88
25.04
mm.
7.24
8.94
10.44
12.01
13.46
15.34
18.08
D Threads
Mating
.3125-28 UN-2A
.3750-28 UN-2A
.4375-28 UNEF-2A
.5000-32 UN-2A
.5625-32 UN-2A
.6250-32 UN-2A
.7500-28 UN-2A
ØE
PC TAIL DIA.
± .002 (0.05)
Size #23
.020 (0.51)
Size #20
.026 (0.66)
Size #16
.062 (1.57)
Size #12
.094 (2.34)
13.74
15.49
17.02
19.69
22.23
24.89
26.97
SERIES 800 KEY POSITIONS
60°
SERIES 800 PANEL CUTOUTS
øB
60°
Z°
NORMAL
Y°
X°
A
FLAT
Z°
Y°
X°
NORMAL
Plug
Receptacle
Key Position
Normal (N)
X
Y
Z
Key Rotation
150°
140°
130°
120°
Shell
Size
5
6
7
8
9
10
12
Shell size 5 and 6: master key is located at top dead center for normal
(N) position. Shell size 7 thru 12: master key is rotated 90° from TDC.
In.
.302 / .298
.365 / .361
.424 / .420
.486/ .482
.543/ .539
.617/.613
.725/.721
A Flat
mm.
7.67/ 7.57
9.27/9.17
10.77/ 10.67
12.34/ 12.24
13.79/ 13.69
15.67/ 15.57
18.42/ 18.31
In.
.318
.386
.449
.510
.574
.635
.760
øB
mm.
8.08
9.80
11.40
12.95
14.58
16.12
19.30
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-47
E-Mail: sales@glenair.com
Series 80
Mighty Mouse
800-013-07
Series 800 Mighty Mouse Hermetic Receptacles
C
