801-009 Overview

ALUMINUM ALLOY; STAINLESS STEEL, FEMALE; MALE, CIRCULAR CONNECTOR, CRIMP, RECEPTACLE

Series 801 Jam Nut Mighty Mouse Receptacle with Size
#8 Quadrax, Twinax, Coax or Power Contacts

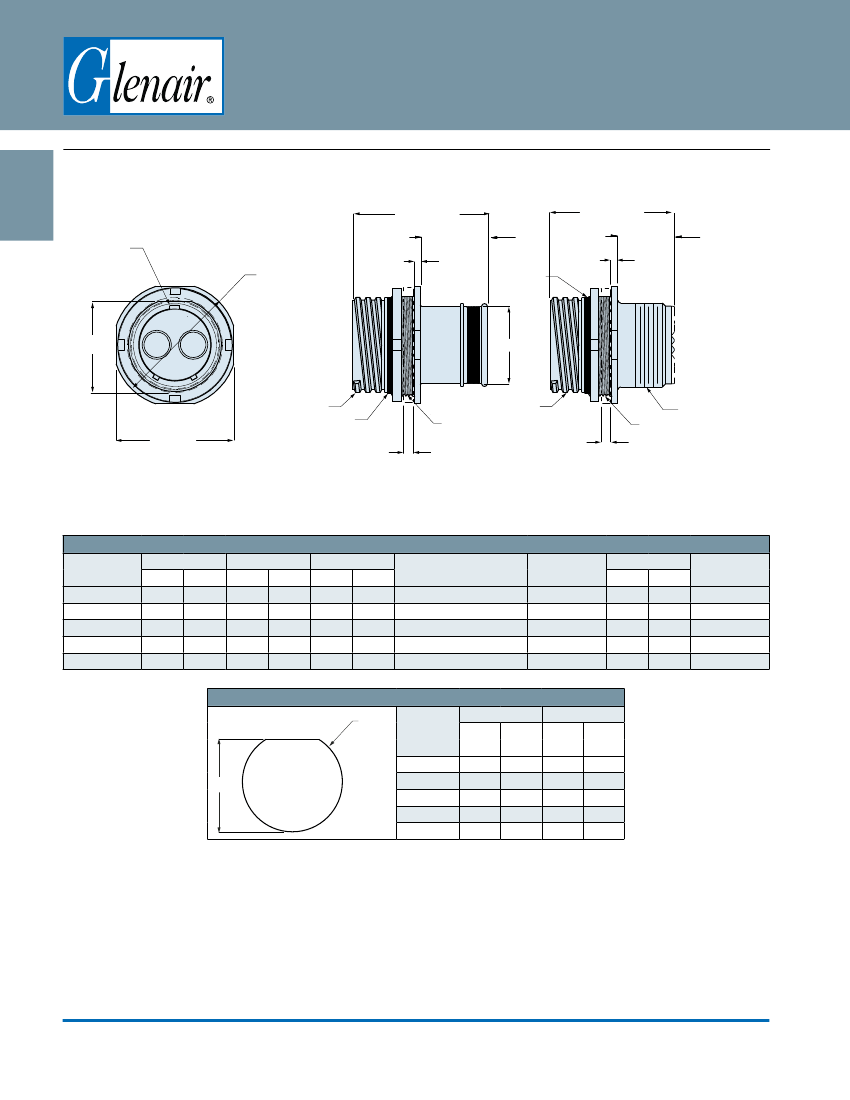

801-009 and 801-010 - Shell Style -07 Dimensions
Mighty Mouse
with #8 Contacts
Jam nut rear panel mount receptacle with band platform or accessory thread
K
MASTER
KEYWAY
øA
1.295 (32.89)
1.400 (35.56)
MAX
MAX
.530 (13.46)
MAX
.060 (1.5)
.060 (1.5)
RED FULL MATE
INDICATOR BAND
.400 (10.16)
MAX
1 2
B FLAT
øF
C FLAT
D THREAD
RED FULL MATE
INDICATOR BAND
.100(2.54) MAX
PANEL THICKNESS
D THREAD
E THREAD
G THREAD
E THREAD
.100(2.54) MAX
PANEL THICKNESS
Integral Band Platform
801-009-07
Dimensions
Shell Size
8
16
17
19
21
ØA
In.
.755
1.264
1.325
1.450
1.625
mm.
19.77
32.11
33.66
36.83
41.28
B Flat
In.
.536
1.022
1.096
1.225
1.345
mm.
13.61
25.96
27.84
31.12
34.16
C Flat
In.
.723
1.230
1.290
1.415
1.577
mm.
18.36
31.24
32.77
35.94
40.06
D
Thread
.5000-.05P-.1L-DS-2A
1.000-.1P-.2L-DS-2A
1.0625-.1P-.2L-DS-2A
1.1875-.1P-.2L-DS-2A
1.3125-.1p-.2l-DS-2a
Accessory Thread
801-010-07
E Thread
UN-2A
.5625-32
1.0625-20
1.125-28
1.250-28
1.375-28
ØF
In.
.445
.805
.850
.956
1.110
mm.
11.30
20.45
21.59
24.28
28.19
G Thread
UNEF-2A
.5000-28
.9375-20
.9375-20
1.0625-18
1.1875-18
Jam Nut Panel Cutout
ØB
A Flat
Shell Size
8
A
16
17
19
21
In.
± .002
.542
1.028
1.102
1.233
1.354
mm.
± 0.05
13.77
26.11
27.99
31.32
34.39
ØB
In.
± .002
.573
1.075
1.135
1.260
1.385
mm.
± 0.05
14.55
27.31
28.83
32.00
35.18
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
K-14
E-Mail: sales@glenair.com
