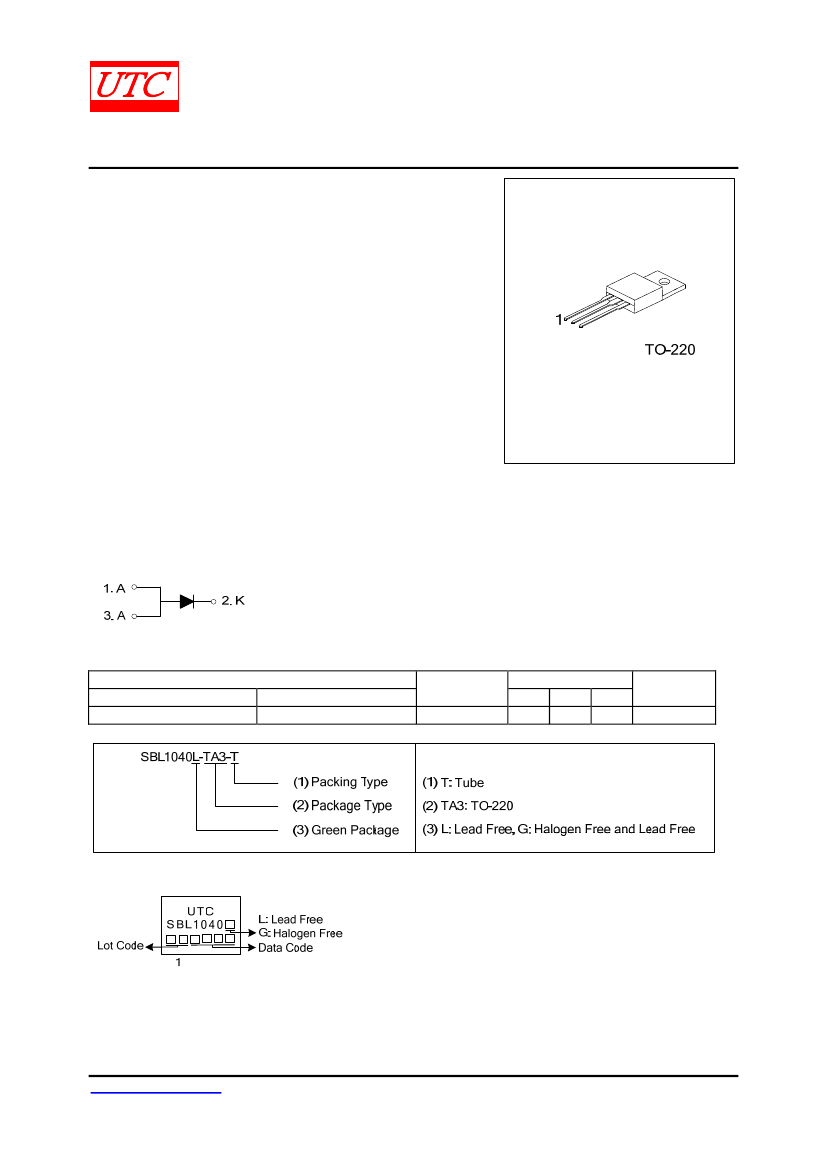

UNISONIC TECHNOLOGIES CO., LTD
SBL1040
Preliminary
DIODE
10A SCHOTTKY BARRIER
RECTIFIER
DESCRIPTION
The UTC
SBL1040
is a 10A schottky barrier rectifier, it uses UTC’s
advanced technology to provide customers with low forward voltage
drop, high current capability and high efficiency, etc.
The UTC
SBL1040
is suitable for free wheeling, high frequency
inverters, low voltage and polarity protection applications.
FEATURES
* Low forward voltage drop
* High current capability
* High surge capability
* Low power loss
* High efficiency
SYMBOL
ORDERING INFORMATION
Package
TO-220
Pin Assignment
1
2
3
A
K
A
Packing
Tube
Ordering Number
Lead Free
Halogen Free
SBL1040L-TA3-T
SBL1040G-TA3-T
Note: Pin Assignment: A: Athode
K: Cathode
MARKING
www.unisonic.com.tw
Copyright © 2014 Unisonic Technologies Co., Ltd
1 of 3
QW-R202-023.a
SBL1040
Preliminary
DIODE
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C, unless otherwise specified)
PARAMETER
SYMBOL
RATINGS
UNIT
DC Blocking Voltage
V
R
40
V
Working Peak Reverse Voltage
V
RWM
40
V
Peak Repetitive Reverse Voltage
V
RRM
40
V
RMS Reverse Voltage
V
R(RMS)
28
V
Average Forward Rectified Current
I
O
10
A
Peak Forward Surge Current 8.3ms Single Half
I
FSM
250
A
Sine-Wave Superimposed on Rated Load Per Diode
Operating Junction Temperature
T
J
-65~+150
°C
Storage Temperature
T
STG
-65~+150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL CHARACTERISTICS
(T
A
=25°C,
unless otherwise noted.)
SYMBOL
θ
JA
θ
JC
RATINGS
62.5
3.5
UNIT
°C/W
°C/W
PARAMETER
Junction to Ambient
Junction to Case
ELECTRICAL CHARACTERISTICS (Note 1)
(T
A
=25°C,
unless otherwise noted.)
MIN
TYP
MAX UNIT
0.60
V
1.0
mA
50
mA
pF
PARAMETER
SYMBOL TEST CONDITIONS
Instantaneous Forward Voltage
V
F
I
F
=10A, T
C
=25°C
T
C
=25°C
Instantaneous Reverse Current at Rated DC
I
R
Blocking Voltage Per Diode
T
C
=100°C
Junction Capacitance (Note 2)
C
J
Notes: 1. Thermal resistance junction to case mounted on heatsink.
2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
700
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R202-023.a
SBL1040
Preliminary
DIODE
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
