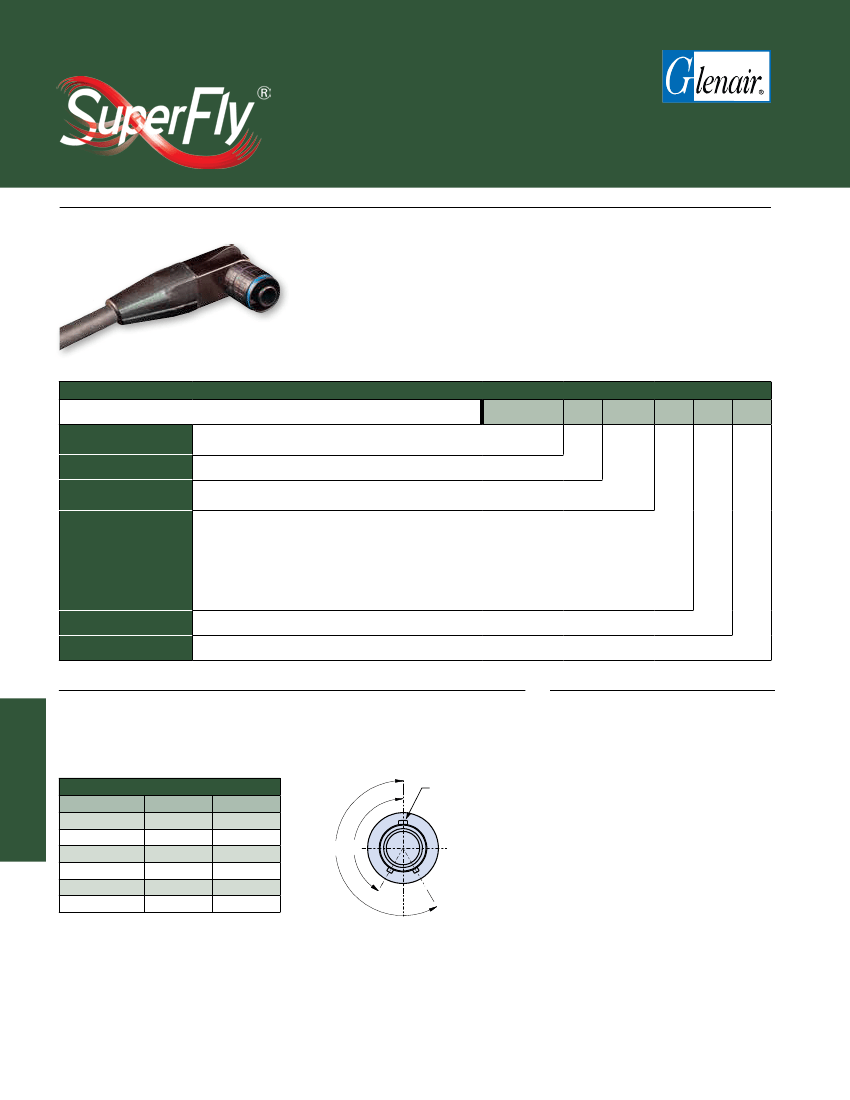

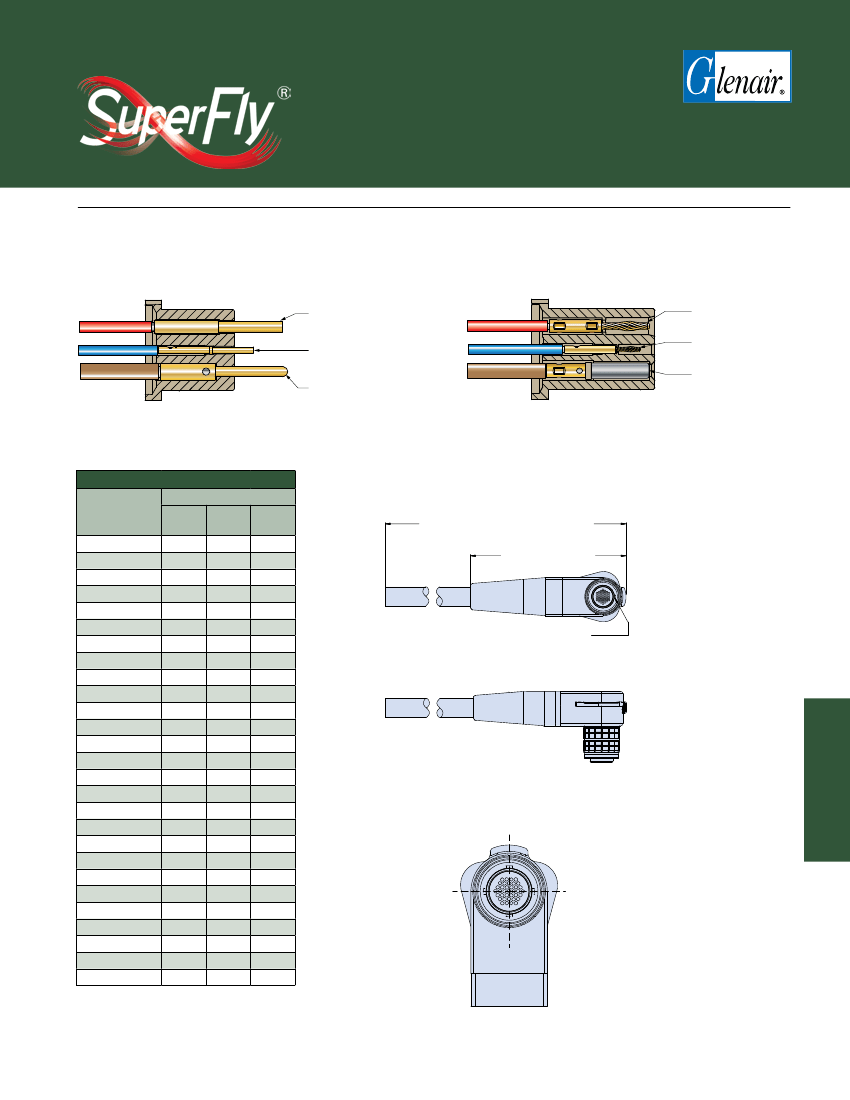

SERIES 886

“Cobra” Threaded Cordset

886-016 Single-Ended “Cobra” Threaded

Coupling Cordset with 90° Entry Plug

886-016 QUICK DISCONNECT, 90° “COBRA” PLUG WITH POLYURETHANE JACKET AND SHIELDED WIRE

Superfly® threaded coupling single-ended cordset with polyamide overmolded 90°

“Cobra” plug. Three contact sizes are available, 5A, 3A and 1A. Aluminum or stainless

steel housings, thermoplastic insulator, high-strength wire with crosslinked ETFE

insulation. High performance crimp contacts, factory terminated to wires. Braided

shield with 90% coverage.

How To Order

Sample Part Number

Series

Insert Configuaration

Shell Size and

Insert Arrangement

886-016P

= Overmolded threaded coupling “Cobra” Cordset with 90° Entry Plug

= Unshrouded Contacts

= Shrouded Contacts

-B7N

-MT

-0

-18

See Shell Size and Insert Arrangement Table

= Aluminum/electroless nickel RoHS compliant

= Aluminum/zinc-nickel, non-reflective with RoHS compliant black chromate

= Aluminum/nickel-PTFE RoHS compliant

= Aluminum/olive drab over cadmium

= Stainless steel/black zinc cobalt

= Stainless steel/passivate

ZMT

= Stainless steel/nickel-PTFE RoHS compliant

= 0°

= 90°

180

= 180°

270

= 270°

Shell Material/Finish

Key Orientation

Wire Length

Indicated in inches; ex.

= 18 inches

Standard SuperFly® connectors have a single master key. Versions with three keys

are also available if alternate key positions are required. Add suffix code 686 to the

part number per the following example: 886-016P-A-B7N-MT-0-18-686A

Plug Alternate Key Positions

Suffix Code

686A

686B

686C

686D

686E

686F

A°

150°

75°

95°

140°

75°

95°

B°

210°

230°

275°

210°

Master

Key

MOD-686 POLARIZING OPTIONS

WIRE GAUGES PER CONTACT

• 1A. contact (Nano) - 30 AWG

• 3A. contact (Micro) - 26 AWG

• 5A. contact (Size 23) - 24 AWG

B° A°

Dimensions in Inches (millimeters) are subject to change without notice.
