Preliminary Product Specifications

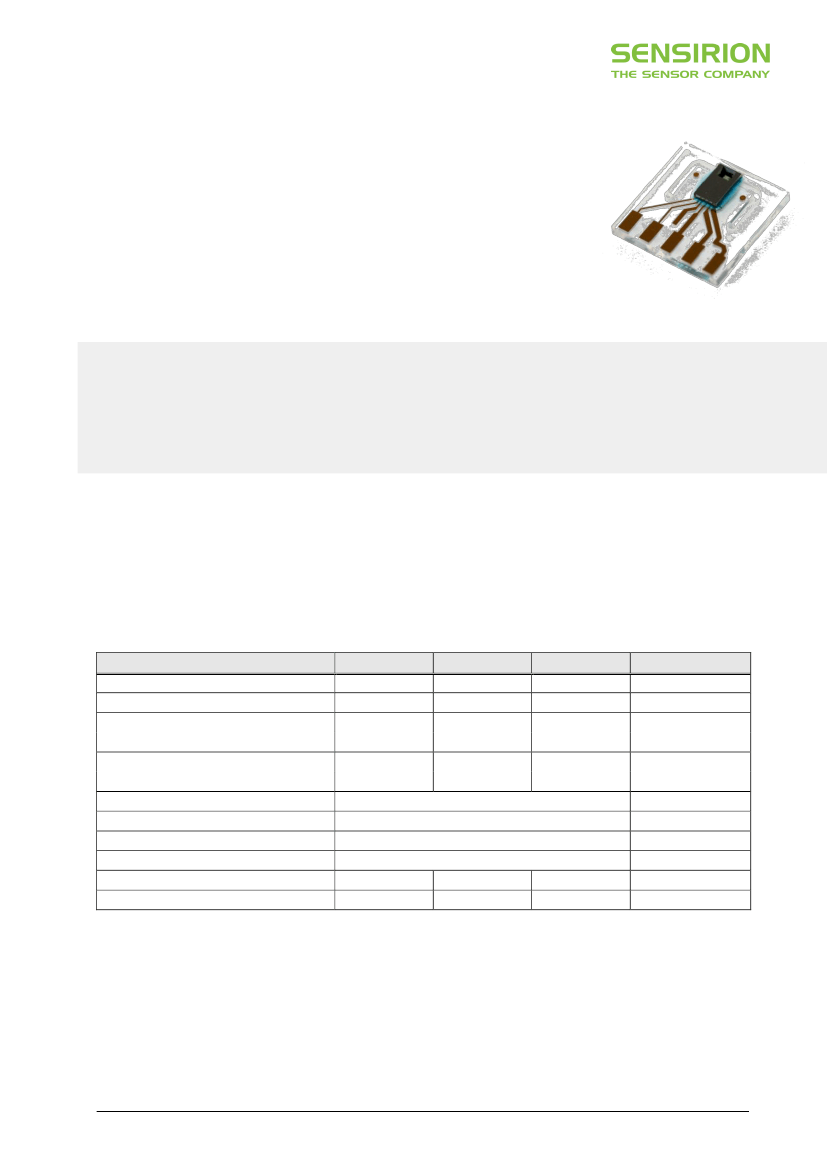

LPG10 Liquid Flow Sensor (Preliminary Datasheet)
Digital Planar Package Sensor
Ultra small size
Excellent repeatability
Bio-compatible & inert materials
Calibrated and temperature compensated digital output (I
2
C)
Product Summary
Unique CMOSens
®
planar packaging technology
allows low fabrication costs by enabling non-invasive
measurement of liquid flow inside a cost-effective
planar substrate (US Patent 7905140). The flow
channel passes through this planar substrate and will
be connected to fluidic channels in a manifold. The
fluid will only be in contact with the glass channel.
The digital microsensor chip provides the full signal
processing functionality for a fully calibrated,
temperature compensated digital output
Integrating the LPG10 sensor models
Due to the dramatically reduced size and downmount fluidic connections, the LPG10 sensor family allows an
outstanding mechanical, fluidic and electronic integration. An evaluation kit with sample-manifold is available for
initial testing.
1
Sensor Performance (subject to change)
Table 1: Performance of LPG10 models (all data for medium H
2
O, 20°C, 1 bar
abs
unless otherwise noted)
Parameter
LPG10-0150
LPG10-0500
LPG10-1000
Unit
Full Scale Flow Rate
Sensor Output Limit
a
Accuracy below full scale
(whichever error is larger)
Repeatability error from zero to full scale
(whichever error is larger)
Flow Detection Response Time
63
Response Time On Power-Up
Operating Temperature
Ambient Storage Temperature
b
Operating Pressure
Proof Pressure
c
a
Flow rate at which the sensor output
b
Non-condensing,
10
15
5
tbd
1
tbd
100
150
5
0.2
1
0.04
40
120
+10 … +50
-40 … +80
10
20
1000
1500
5
0.25
1
0.05
tbd
tbd
3
7
l/min
l/min
% of measured value
% of full scale
% of measured value
% of full scale
ms
ms
°C
°C
bar (psi)
bar (psi)
saturates, see Section 2 for performance specifications between full scale and saturation point
flow path empty
c
Pressures listed are mechanical limits of glass substrate; Proof pressure of manifold assembly depends on customer manifold seal design
www.sensirion.com
Version 4 (Subject to Change) – July 2015
1/5
LPG10 Series Liquid Flow Sensor
2

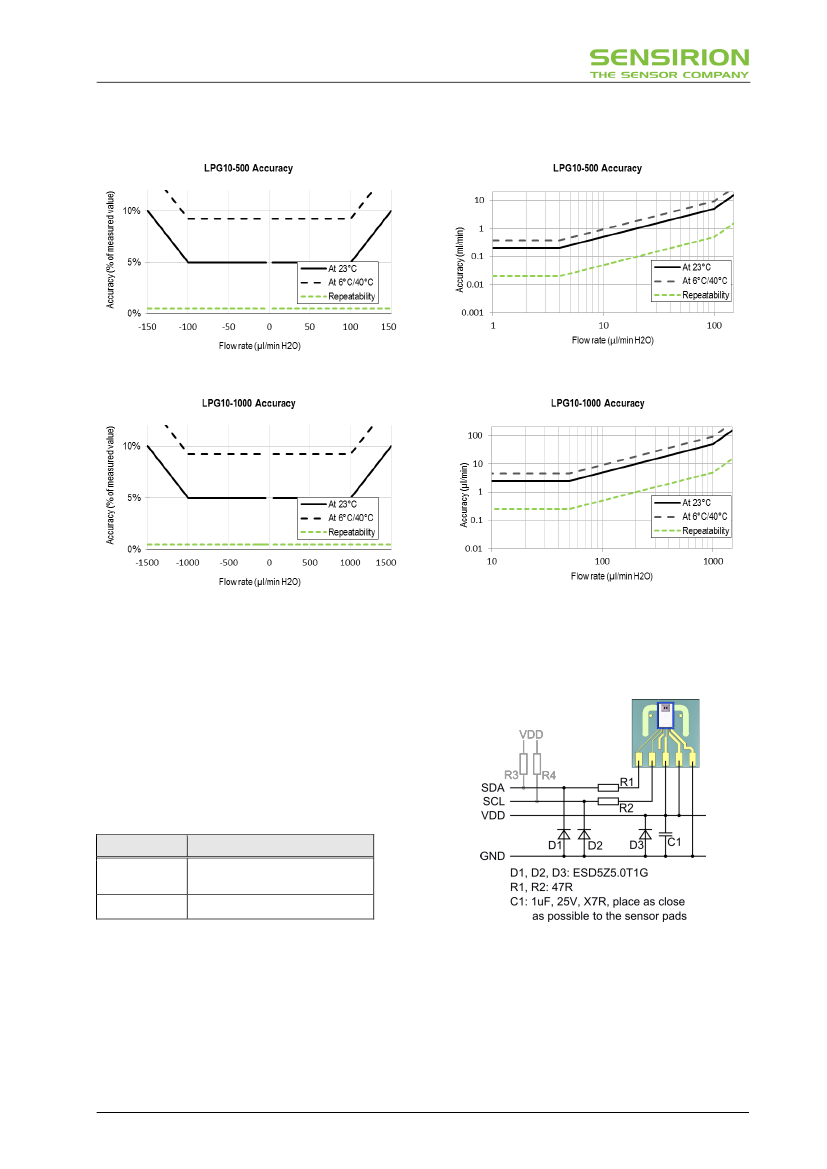

Specifications Charts
Figure 1: Sensor accuracy and repeatability (% of
measured value) across the sensor’s flow range
Figure 2: Sensor accuracy and repeatability (µl/min)
across the sensor’s flow range
Figure 3: Sensor accuracy and repeatability (% of
measured value) across the sensor’s flow range
Figure 4: Sensor accuracy and repeatability (µl/min)
across the sensor’s flow range
3
Communication with the Sensor
3.2 Sample Circuitry
The OEM
flow sensor models LPG10
show bi-
directional, linear transfer characteristics. The
product comes fully calibrated for water.
Digital Sampling Time, 16 bit
Digital Sampling Time, 9 bit
74 ms
1 ms
3.1 Electrical Specifications
Table 2: DC Characteristics
Parameter
LPG10 Series
Operating
voltage
Current drain
3.3– 3.6 V
DC
(Recommended: 3.4-3.5 V)
< 6 mA typical in operation
For electrical connection to the LPG10 flow sensor
family please follow the schematic shown in 3.2.
The required electrical connection can be realized in
different ways, e.g. using spring contacts.
Pad assignment from left to right:
1
SDA, Data
2
SCL, Clock
3
VDDA, Analog Supply
Voltage
4
VDDD, Digital Supply
Voltage
5
GND, Ground
www.sensirion.com
Version 4 (Subject to Change) – July 2015
2/5
LPG10 Series Liquid Flow Sensor
3.3 Digital Communication via I²C-Bus
Digital
communication between a master and the
LPG10
sensor runs via the standard I²C-interface.
The physical interface consists of two bus lines, a
data line (SDA) and a clock line (SCL) which need
to be connected via pull-up resistors to the bus
voltage of the system.
These lines can be used on a 3.3V level with a clock
frequency of 100 kHz. For the detailed specifications of
this I²C communication, please refer to specific I²C
Application Notes
from Sensirion.
4
Fluidic Connection
LPG10-0150
LPG10-0500
Borosilicate glass
Down mount
tbd
tbd
0.2 mbar
~3.2
l
0.1 mbar
~11.7
l
LPG10-1000
Table 3: Fluidic Specifications and Pressure Rating
Parameter
Wetted Materials:
Internal Substrate Flow Channel Material
Fluid Connector Ports (Fittings)
Pressure Drop (at full scale flow rate, H
2
O, 23°C)
Total Internal Volume
REACH, RoHS and WEEE compliant
5
Mechanical Specifications
LPG10-0150
tbd
tbd
tbd
LPG10-0500
10 x 10 x 1.65 mm
0.23 g
0.5 mm x 0.4 mm
LPG10-1000
10 x 10 x 2.2 mm
0.32 g
0.9 mm x 0.9 mm
Table 4: Mechanical Specifications
Parameter
Largest dimensions (approximately)
Total Mass
Cross Section Sensor Tube (approximately)
channel cross section
approx. 0.5mm by 0.4mm
Flow Chip
Inlet
Outlet
VDDD
VDDA
GND
SDA
SCL
Contact pads
All dimensions in mm
Note: Example of LPG10-0500. For other versions, layout will be exactly identical, but size of channel and fluidic
ports will be slightly different.
www.sensirion.com
Version 4 (Subject to Change) – July 2015
3/5
LPG10 Series Liquid Flow Sensor
6
Ordering Information
Manifold body for selected type of sensor
Connector cap with 4-pin molex connector
Screws and O-rings required for assembly
SCC1-USB Sensor Cable with USB connector
for plug-and-play connection to a PC
Adapter cable for 4-pin molex to SCC1 Sensor
Cables
4-pin molex ribbon cable
For OEM applications, the LPG10 flow meters can be
purchased in larger quantities without any additional
parts (100 pcs. minimum order quantity).
For initial testing and technology evaluation, the
LPG10 evaluation kit can be ordered.
This evaluation package contains:
Liquid Flow Meter LPG10-xxxx
Product
LPG10-0500
LPG10-1000
Evaluation Kit LPG10-0500
Evaluation Kit LPG10-1000
Article No
1-101119-01
1-101126-01
1-101318-01
1-101319-01
www.sensirion.com
