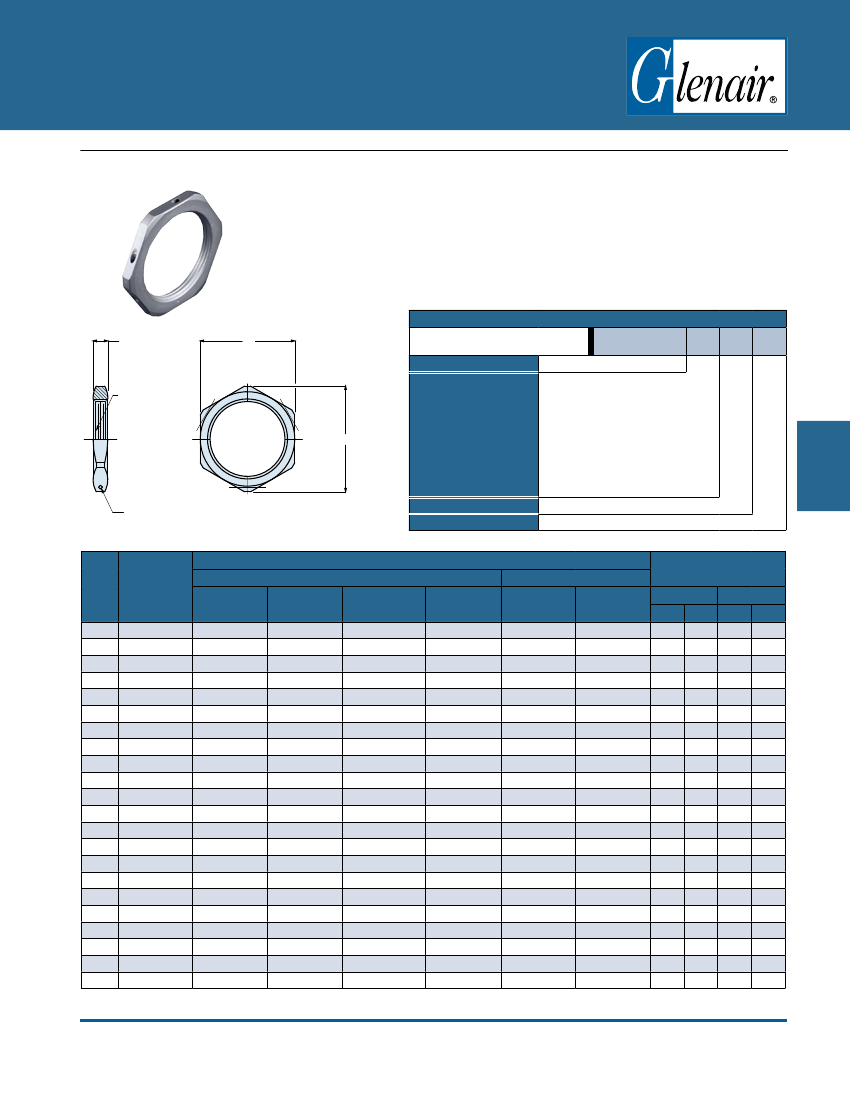

Hex Nuts 809-035
Hex jam nuts for Mighty Mouse receptacles
Replace low-profile spanner-style jam nuts with hex nuts for applications where jam nuts
must be safety-wired to prevent loosening. These hex nuts fit all standard Series 80 jam nut
receptacles except for Series 803 bayonet-coupling versions. Use Glenair Modification Code
501 to specify hex nuts to be supplied with connector.
How To Order
.100 ±.005
(2.54 ± 0.13)
THREAD
A
Sample Part Number
Series (See Table I)
809-035
809-035
-M
03
W
(SEE TABLE I)
C
= Aluminum / Black Anodize (Non-
Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel
NF
= Aluminum / Cadmium with
Shell Material and Finish
Olive Drab
ZN
= Aluminum / Zinc-Nickel with
Olive Drab Chromate
Z1
= Stainless Steel / Passivated
Dash No.
Wire Holes
See Table
W
= Wire Holes
Omit
for none
øB
HOLE FOR .032 (0.81) MAX DIA
SAFETY WIRE (3 @ 120°)
Part Number
Dash Thread Size
No
Class 2B
Electroless
Nickel
01
02
03
04
05
23
06
16
07
08
09
10
17
11
12
13
14
15
19
20
22
21
Aluminum
Olive Drab
Cadmium
Black Zinc
Nickel
Nickel-PTFE
Stainless Steel
Passivated
Black Zinc-
Cobalt
Dimensions
A Hex
In. mm.
9.53
11.11
B Dia.
In. mm.
.403
.475
.475
.547
.620
.690
.755
.755
.755
.830
.898
10.24
12.07
12.07
13.89
15.75
17.53
19.18
19.18
19.18
21.08
22.81
.2500-32 UNEF
809-035M01W 809-035NF01W 809-035ZNU01W 809-035MT01W 809-035Z101W 809-035ZC01W
.375
.3125-28 UN
809-035M02W 809-035NF02W 809-035ZNU02W 809-035MT02W 809-035Z102W 809-035ZC02W
.4375
.3125-32 UNEF
809-035M03W 809-035NF03W 809-035ZNU03W 809-035MT03W 809-035Z103W 809-035ZC03W
.4375 11.11
.3750-28 UN
809-035M04W 809-035NF04W 809-035ZNU04W 809-035MT04W 809-035Z104W 809-035ZC04W
.500 12.70
.4375-28 UNEF
809-035M05W 809-035NF05W 809-035ZNU05W 809-035MT05W 809-035Z105W 809-035ZC05W
.5625 14.29
.5000-32 UN
809-035M23W 809-035NF23W 809-035ZNU23W 809-035MT23W 809-035Z123W 809-035ZC23W
.625 15.88
.5625-24 UNEF
809-035M06W 809-035NF06W 809-035ZNU06W 809-035MT06W 809-035Z106W 809-035ZC06W
.6875 17.46
.5625-28 UN
809-035M16W 809-035NF16W 809-035ZNU16W 809-035MT16W 809-035Z116W 809-035ZC16W
.6875 17.46
.5625-32 UN
.6250-28 UN
.6875-28 UN
.7500-28 UN
.8125-28 UN
.8750-28 UN
809-035M07W 809-035NF07W 809-035ZNU07W 809-035MT07W 809-035Z107W 809-035ZC07W
.6875 17.46
809-035M08W 809-035NF08W 809-035ZNU08W 809-035MT08W 809-035Z108W 809-035ZC08W
.750 19.05
809-035M09W 809-035NF09W 809-035ZNU09W 809-035MT09W 809-035Z109W 809-035ZC09W
.8125 20.64
809-035M10W 809-035NF10W 809-035ZNU10W 809-035MT10W 809-035Z110W 809-035ZC10W
.875 22.23 .970 24.64
809-035M17W 809-035NF17W 809-035ZNU17W 809-035MT17W 809-035Z117W 809-035ZC17W
.9375 23.81 1.030 26.16
809-035M11W 809-035NF11W 809-035ZNU11W 809-035MT11W 809-035Z111W 809-035ZC11W
1.000 25.40 1.078 27.38
.9375-20 UNEF
809-035M12W 809-035NF12W 809-035ZNU12W 809-035MT12W 809-035Z112W 809-035ZC12W
1.0625 26.99 1.187 30.15
.9375-28 UN
809-035M13W 809-035NF13W 809-035ZNU13W 809-035MT13W 809-035Z113W 809-035ZC13W
1.0625 26.99 1.187 30.15
1.0000-28 UN
809-035M18W 809-035NF18W 809-035ZNU18W 809-035MT18W 809-035Z118W 809-035ZC18W
1.125 28.58 1.200 30.48
1.0625-20 UN
1.1250-28 UN
1.1875-28 UN
1.2500-28 UN
1.5000-28 UN
809-035M14W 809-035NF14W 809-035ZNU14W 809-035MT14W 809-035Z114W 809-035ZC14W
1.1875 30.16
809-035M15W 809-035NF15W 809-035ZNU15W 809-035MT15W 809-035Z115W 809-035ZC15W
1.250 31.75
809-035M19W 809-035NF19W 809-035ZNU19W 809-035MT19W 809-035Z119W 809-035ZC19W
1.3125 33.34
809-035M20W 809-035NF20W 809-035ZNU20W 809-035MT20W 809-035Z120W 809-035ZC20W
1.375
809-035M21W 809-035NF21W
Inches (millimeters)
809-035MT21W 809-035Z121W 809-035ZC21W
1.625
Dimensions in
809-035ZNU21W
are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
1.264 32.11
1.325 33.66
1.415 35.94
34.93 1.490 37.85
41.28 1.750 44.45
Printed in U.S.A.
© 2014 Glenair, Inc.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-11
E-Mail: sales@glenair.com
Accessories
