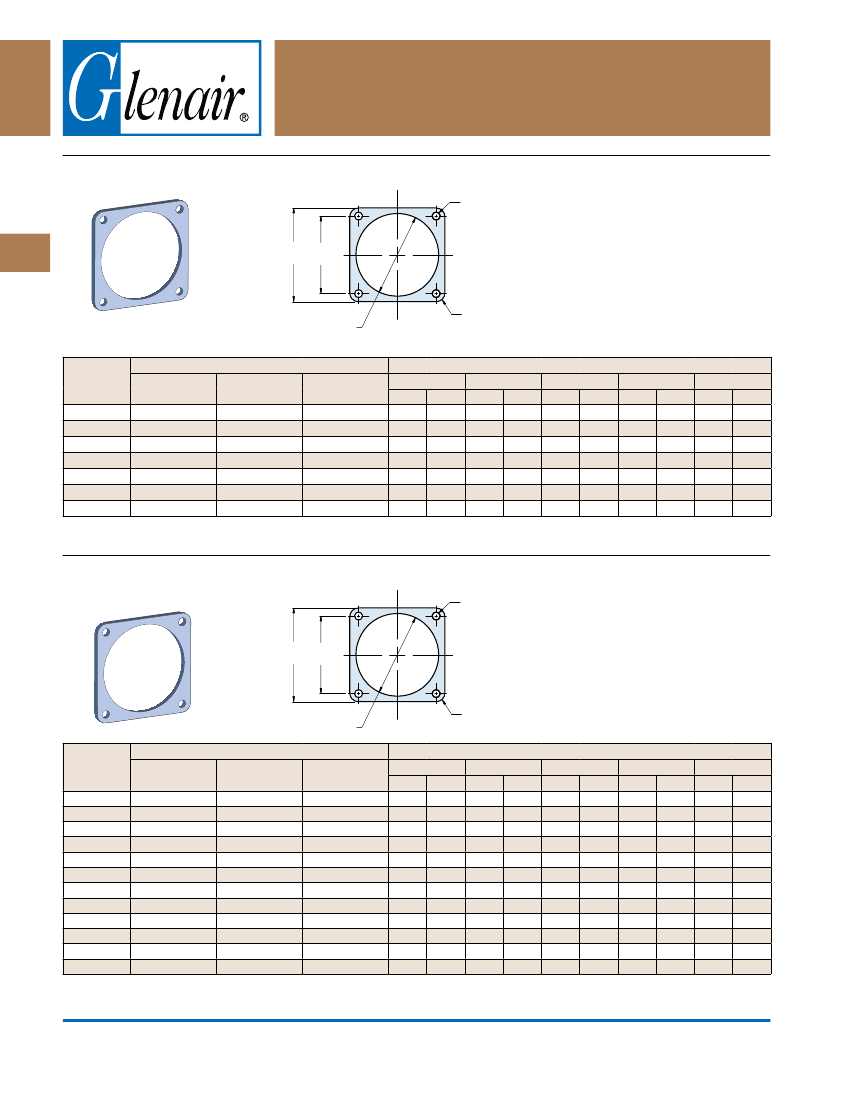

Series 80
Mighty Mouse
Series 800 Mighty Mouse
Flange Gaskets 809-108
Flange Gaskets for Series 800 Mighty Mouse Receptacles
D DIA
4 PLACES
C
C
A
TYP BSC
B DIA
E RAD
These flange gaskets provide sealing
between square flange receptacles
and the mounting panel. Choose
fluorosilicone, Vito
n
®
, or conductive
fluorosilicone material (Chomerics
1298 silver-filled). Gaskets are .032”
(0.8) thick.
Part Number
Shell Size
5
6
7
8
9
10
12
Fluorosilicone
809-108F01
809-108F02
809-108F03
809-108F04
809-108F05
809-108F06
809-108F07
Viton
®
809-108V01
809-108V02
809-108V03
809-108V04
809-108V05
809-108V06
809-108V07
Conductive
Fluorosilicone
809-108X01
809-108X02
809-108X03
809-108X04
809-108X05
809-108X06
809-108X07
A Bsc.
In.
mm.
.363
.423
.483
.542
.719
.719
.812
9.22
10.74
12.27
13.77
18.26
18.26
20.62
B Dia.
In.
mm.
.342
.405
.467
.530
.593
.655
.780
8.69
10.29
11.86
13.46
15.06
16.64
19.81
Dimensions
C Typ.
In.
mm.
.527
.588
.650
.709
.938
.938
1.031
13.39
14.94
16.51
18.01
23.83
23.83
26.19
D Dia.
In.
mm.
.093
.093
.125
.125
.125
.125
.125
2.36
2.36
3.18
3.18
3.18
3.18
3.18
E Rad.
In.
mm.
.078
.078
.078
.078
.105
.105
.105
1.98
1.98
1.98
1.98
2.67
2.67
2.67
Flange Gaskets for Series 801 Mighty Mouse Receptacles
D DIA
4 PLACES
C
A
TYP BSC
B DIA
E RAD
These flange gaskets provide sealing
between square flange receptacles
and the mounting panel. Choose
fluorosilicone, Vito
n
®
, or conductive
fluorosilicone material (Chomerics
1298 silver-filled). Gaskets are .032”
(0.8) thick.
Dimensions
C Typ.
In.
mm.
.530
.590
.650
.712
.850
.890
.935
1.030
1.219
1.280
1.432
1.570
13.46
14.99
16.51
18.08
21.59
22.61
23.75
26.16
30.96
32.51
36.37
39.88
Part Number
Shell Size Fluorosilicone Viton
®
5
6
7
8
9
10
11
13
16
17
19
21
809-108F11
809-108F12
809-108F13
809-108F14
809-108F16
809-108F15
809-108F45
809-108F17
809-108F18
809-108F19
809-108F44
809-108F43
809-108V11
809-108V12
809-108V13
809-108V14
809-108V16
809-108V15
809-108V45
809-108V17
809-108V18
809-108V19
809-108V44
809-108V43
Conductive
Fluorosilicone
809-108X11
809-108X12
809-108X13
809-108X14
809-108X16
809-108X15
809-108X45
809-108X17
809-108X18
809-108X19
809-108X44
809-108X43
A Bsc.
In.
mm.
.363
.423
.483
.545
.607
.670
.715
.812
.607
.812
1.191
1.322
9.22
10.74
12.27
13.84
15.42
17.02
18.16
20.62
15.42
20.62
30.25
33.58
B Dia.
In.
mm.
.342
.405
.467
.530
.560
.655
.717
.842
1.030
1.092
1.218
1.332
8.69
10.29
11.86
13.46
14.22
16.64
18.21
21.39
26.16
27.74
30.94
33.83
D Dia.
In.
mm.
.093
.093
.093
.093
.125
.125
.125
.125
.125
.125
.125
.125
2.36
2.36
2.36
2.36
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
E Rad.
In.
mm.
.078
.078
.078
.078
.105
.105
.105
.105
.105
.105
.105
.105
1.98
1.98
1.98
1.98
2.67
2.67
2.67
2.67
2.67
2.67
2.67
2.67
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-40
E-Mail: sales@glenair.com
Series 80 Mighty Mouse
Flange Gaskets 809-108

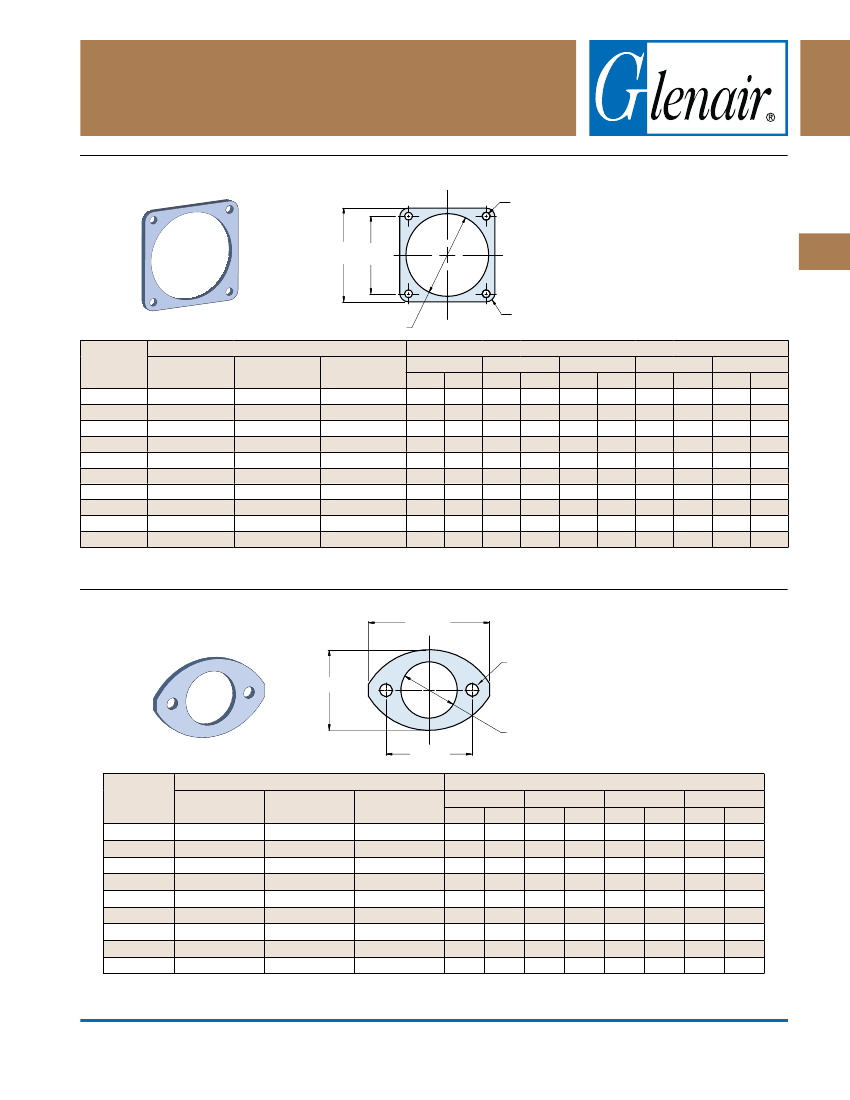

Flange Gaskets for Series 802 Mighty Mouse Receptacles
D DIA
4 PLACES
C
A
TYP BSC
These flange gaskets provide
sealing between square flange
receptacles and the mounting
panel. Choose fluorosilicone,
Viton, or neoprene material.
Gaskets are .032” (0.8) thick.
B DIA
E RAD
Part Number
Shell Size
5
6
7
8
9
10
12
14
15
21
Fluorosilicone
809-108F51
809-108F52
809-108F53
809-108F54
809-108F55
809-108F56
809-108F57
809-108F58
809-108F59
809-108F60
Viton
®
809-108V51
809-108V52
809-108V53
809-108V54
809-108V55
809-108V56
809-108V57
809-108V58
809-108V59
809-108V60
Neoprene
809-108N51
809-108N52
809-108N53
809-108N54
809-108N55
809-108N56
809-108N57
809-108N58
809-108N59
809-108N60
A Bsc.
In.
mm.
.500
.625
.688
.750
.812
.875
.938
1.125
1.188
1.375
12.70
15.88
17.48
19.05
20.62
22.23
23.83
28.58
30.18
34.93
B Dia.
In.
mm.
.448
.572
.635
.698
.760
.822
.885
1.072
1.135
1.448
11.38
14.53
16.13
17.73
19.30
20.88
22.48
27.23
28.83
36.78
Dimensions
C Typ.
In.
mm.
.885
1.010
1.072
1.135
1.195
1.260
1.323
1.510
1.573
1.760
22.48
25.65
27.23
28.83
30.35
32.00
33.60
38.35
39.95
44.70
D Dia.
In.
mm.
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
E Rad.
In.
mm.
.105
.105
.105
.105
.105
.105
.105
.105
.105
.105
2.67
2.67
2.67
2.67
2.67
2.67
2.67
2.67
2.67
2.67
Flange Gaskets for Series 803 Mighty Mouse Receptacles
C MAX
ø.115 TYP
D REF
ØB
A BSC
These flange gaskets provide
sealing between elliptical flange
receptacles and the mounting
panel. Choose fluorosilicone,
Vito
n
®
, or conductive
fluorosilicone material (Chomerics
1298 silver-filled). Gaskets are
.032” (0.8) thick.
Part Number
Shell Size
5
6
7
8
9
10
12
14
15
© 2013 Glenair, Inc.
Fluorosilicone
809-108F31
809-108F32
809-108F33
809-108F34
809-108F35
809-108F36
809-108F37
809-108F38
809-108F39
Viton
®
809-108V31
809-108V32
809-108V33
809-108V34
809-108V35
809-108V36
809-108V37
809-108V38
809-108V39
Conductive
Fluorosilicone
809-108X31
809-108X32
809-108X33
809-108X34
809-108X35
809-108X36
809-108X37
809-108X38
809-108X39
A Bsc.
In.
mm.
.513
.598
.708
.964
1.017
1.101
1.204
1.280
1.370
13.03
15.19
17.98
24.51
25.83
37.97
30.58
32.51
34.80
Dimensions
B Dia.
C Max.
In.
mm.
In.
mm.
.345
.405
.475
.545
.605
.682
.757
.910
.970
8.00
10.29
12.07
13.84
15.37
17.32
19.23
23.11
24.64
.710
.795
.900
1.160
1.215
1.295
1.400
1.555
1.640
18.03
20.19
22.86
29.46
30.86
32.89
35.56
39.50
41.66
D Ref.
In.
mm.
.460
.522
.590
.670
.721
.795
.874
1.050
1.150
11.68
13.26
14.99
17.02
18.31
20.19
22.20
26.67
29.21
Dimensions in Inches (millimeters) are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-41
E-Mail: sales@glenair.com
Series 80
Mighty Mouse
C
Series 80
Mighty Mouse
Series 80 Mighty Mouse
Flange Gaskets 809-108
Flange Gaskets for Series 805 Mighty Mouse Receptacles
D DIA
4 PLACES
C
C
A
TYP BSC
B DIA
E RAD
These flange gaskets provide
sealing between square flange
receptacles and the mounting
panel. Choose fluorosilicone,
Vito
n
®
, or conductive
fluorosilicone material (Chomerics
1298 silver-filled). Gaskets are
.032” (0.8) thick.
Part Number
Shell Size Fluorosilicone Viton
®
8
9
10
11
12
13
15
18
19
21
23
809-108F20
809-108F21
809-108F22
809-108F23
809-108F24
809-108F29
809-108F25
809-108F26
809-108F27
809-108F30
809-108F28
809-108V20
809-108V21
809-108V22
809-108V23
809-108V24
809-108V29
809-108V25
809-108V26
809-108V27
809-108V30
809-108V28
Conductive
Fluorosilicone
809-108X20
809-108X21
809-108X22
809-108X23
809-108X24
809-108X29
809-108X25
809-108X26
809-108X27
809-108X30
809-108X28
A Bsc.
In.
mm.
.660
.723
.785
.848
.909
16.76
18.36
19.94
21.54
23.09
B Dia.
In.
mm.
.530
.590
.660
.720
.780
13.46
14.99
16.76
18.29
19.81
Dimensions
C Typ.
In.
mm.
.850
.913
.975
1.039
1.099
21.59
23.19
24.77
26.39
27.91
D Dia.
In.
mm.
.093
.093
.093
.093
.093
2.36
2.36
2.36
2.36
2.36
E Rad.
In.
mm.
.078
.078
.078
.078
.078
1.98
1.98
1.98
1.98
1.98
.973
1.058
1.255
1.327
24.71
26.87
31.88
33.71
.842
.970
1.160
1.220
21.39
24.64
29.46
30.99
1.163
1.288
1.475
1.537
29.54
32.72
37.47
39.04
.093
.125
.125
.125
2.36
3.18
3.18
3.18
.078
.105
.105
.105
1.98
2.67
2.67
2.67
1.452
1.570
36
39.88
1.342
1.458
34.09
37.03
1.663
1.797
42.24
45.64
.125
.125
3.18
3.18
.105
.105
2.67
2.67
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-42
E-Mail: sales@glenair.com
