852-005

Description
Size 12 Coaxial Socket
File Size241KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

852-005 Overview

Size 12 Coaxial Socket

Size 12 Coaxial Socket
D38999
M39029/103
852-005
Shielded
Contacts
Ser. I, III, IV

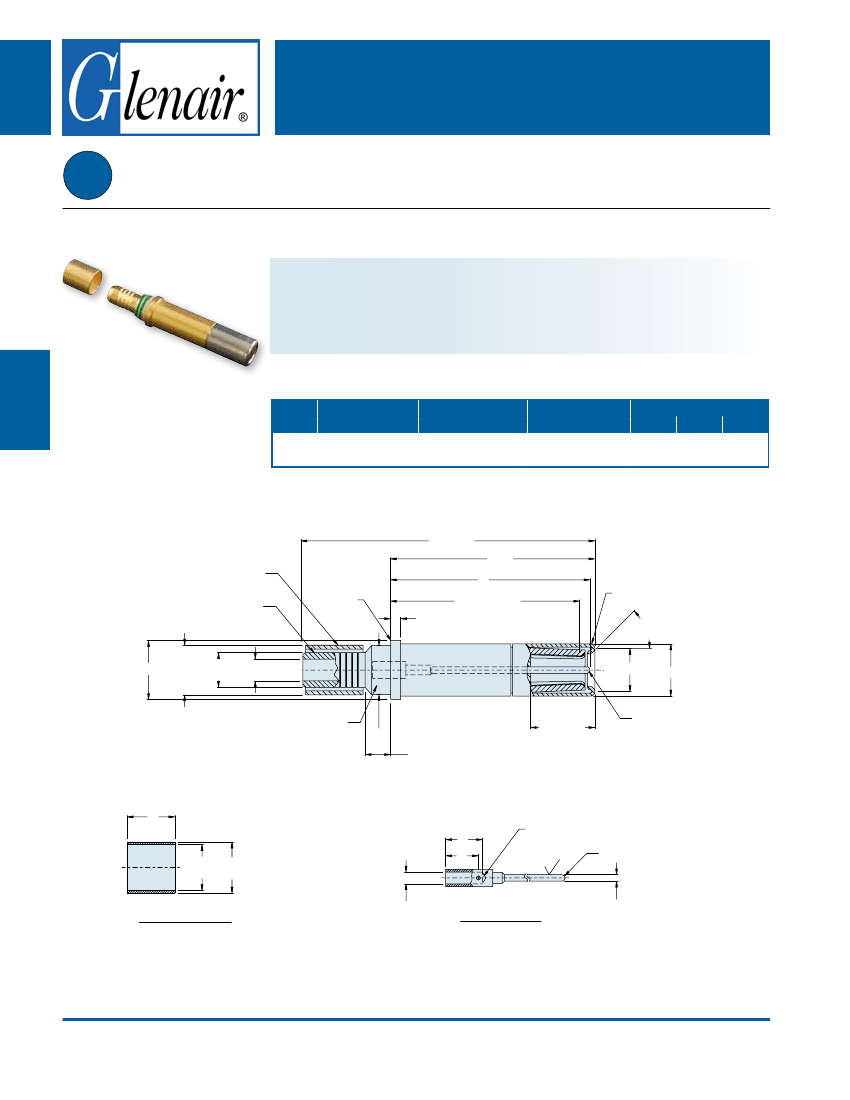

Size #12 Coaxial Socket Contacts for MIL-DTL-38999 Series I, III and IV Connectors
These contacts offer improved frequency response compared to standard coaxial contacts. VSWR
is 1.32:1 at 3GHz . Nominal impedance is 50 ohms. Insertion loss at 3GHz is 0.20 dB maximum. Inner
contact is rated at 1 amp, the outer contact 12 amps. DWV voltage rating is 1000 Vac rms sea level,
250 Vac at 50,000 feet. Contacts are packaged individually and shipped unassembled with instruction
sheet. Inner and outer contacts are gold-plated copper alloy. 5000 megohm insulation resistance.
B
Type
Socket
Cable
Accommodation Part Number
M17/113-RG316
M17/094-RG179
Military Part
Number
M39029/103-559
1st
Green
Color Band
2nd
3rd
Green
White
852-005-12-559
.896 Max
Shield Crimp Sleeve
Outer Contact Barrel
R .003 Max
.033
.029
X
.626
.620
R .002 Min
47°
43°
ØC
ØA
.585 Min *
ØF
ØG
After Ø Z
Crimp Max
ØD
Min
BIN Color Bands
(See Table)
ØE
.067 Min
.166 Min
Depth
Inner Pin Contact
K
N
P
.022 Thru One Wall Only
Ø .013 Radial Location Optional
32
Spherical Radius
ØH
Min
ØJ
Max
ØL
Min
Shield Crimp Sleeve
Inner Pin Contact
ØV
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-12
