Size 8 Coaxial Pin

Size 8 Coaxial Pin
D38999
Ser. I, III, IV

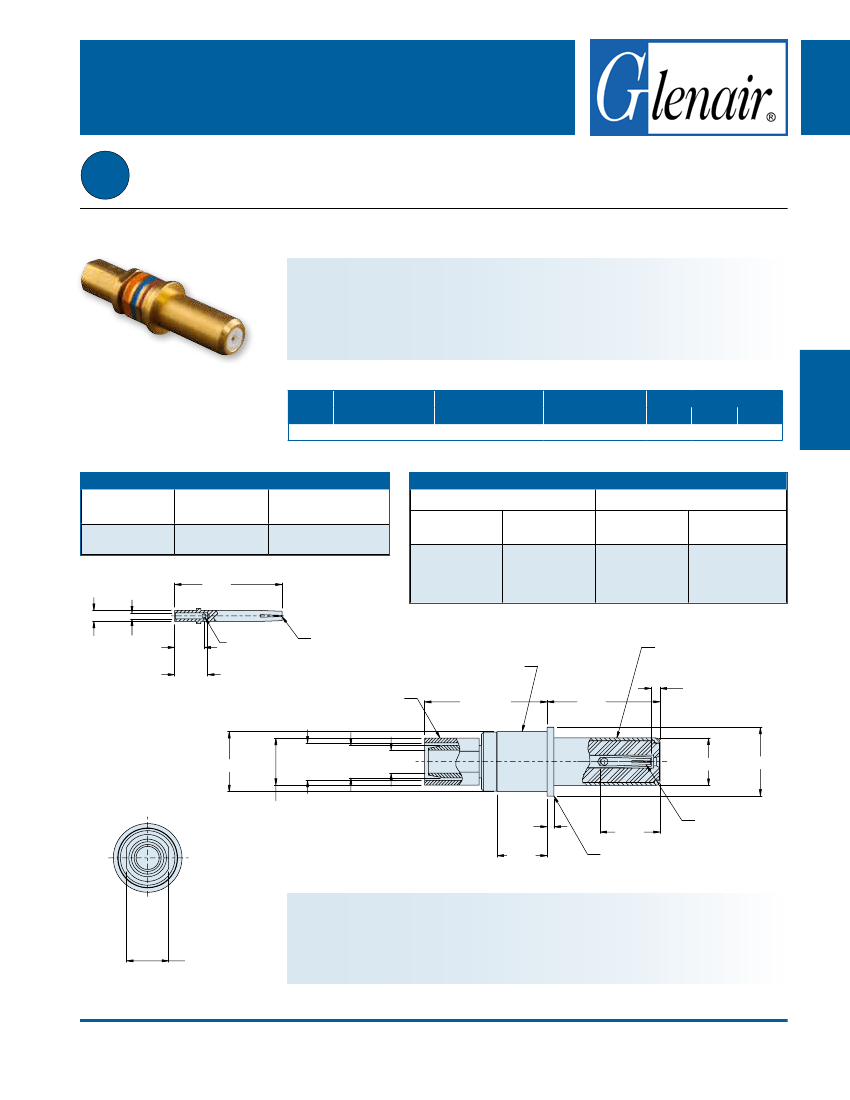

Size #8 Coaxial Pin Contacts for MIL-DTL-38999 Series I, III and IV Connectors
These #8 pin contacts accept 95 ohm coaxial cable. Inner contact is rated at 1 amp, the outer
contact 12 amps. DWV rating is 1,300 Vac rms sea level, 250 Vac at 50,000 feet. Contacts are
packaged individually and shipped unassembled with instruction sheet. One contact consists
of outer contact , fluorocarbon dielectric, inner contact and shield crimp sleeve. Inner and outer
contacts are gold-plated copper alloy. Approved to SAE AS39029. 5000 megohm insulation
resistance. Mates with: M39029/60.
Type
Socket
Cable
Accommodation Part Number
M17/095-RG180
852-007-08-367
Military Part
Number
M39029/60-367
1st
Color Band
2nd
3rd
Blue
Violet
Orange
Table II - Tools
Table III - Tools (contact)
Insertion Tool
None Required -
Hand Installed
Extraction
Tool
MIL-I-81969/14-06
±.020
Insulator Expander
Tool (crimp only)
11-10134
Center Contact Tooling
Basic
Crimping Tool
M22520/2-01
Shield Crimp Sleeve Tooling
Basic
Crimping Tool
M22520/5-01
M22520/10-1
Contact
Positioner
M22520/2-31
Die Part or
Identifying No.
M22520/5-05
Die Closure B
M22520/10-07
Die Closure B
.493
Ø .051 Ø .027
Min
Max
.141
.125
.165
.155
.020
Ø .014
Thru One
Side Only
Inner Contact
Socket
Mates With
Ø.0355±.0010 Pin
Outer Contact
BIN Color Bands
.562 Max
±.003
.517
.045 Max
To Engagement with
a Ø.0355 Basic Square
End Pin
+.002
±.0010
-.003
Ø .2180
Ø .314
Shield Crimp
Sleeve
+.002
-.003
Ø .274
Ø .165
Min
Ø .151
Max
Ø .106
Min
Ø .221 Max
Ø .219 Max
After Crimping
±.002
.031
.198
Min
.260
Min
.005/.002
Break or Radius
Leading Edge
Inner Contact
Socket Mates With
Ø.0355±.0010 Pin
Material and Finish
.242±.005
Wrench Flats
Contact Body: Copper Alloy/Gold Plated
Center Contact: Copper Alloy/Gold Plated
Ferrule: Copper Alloy/Gold Plated
Insulator: Teflon
CAGE Code 06324
Printed in U.S.A.
© 2011 Glenair, Inc.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-15
Shielded
Contacts
M39029/60
852-007
B
