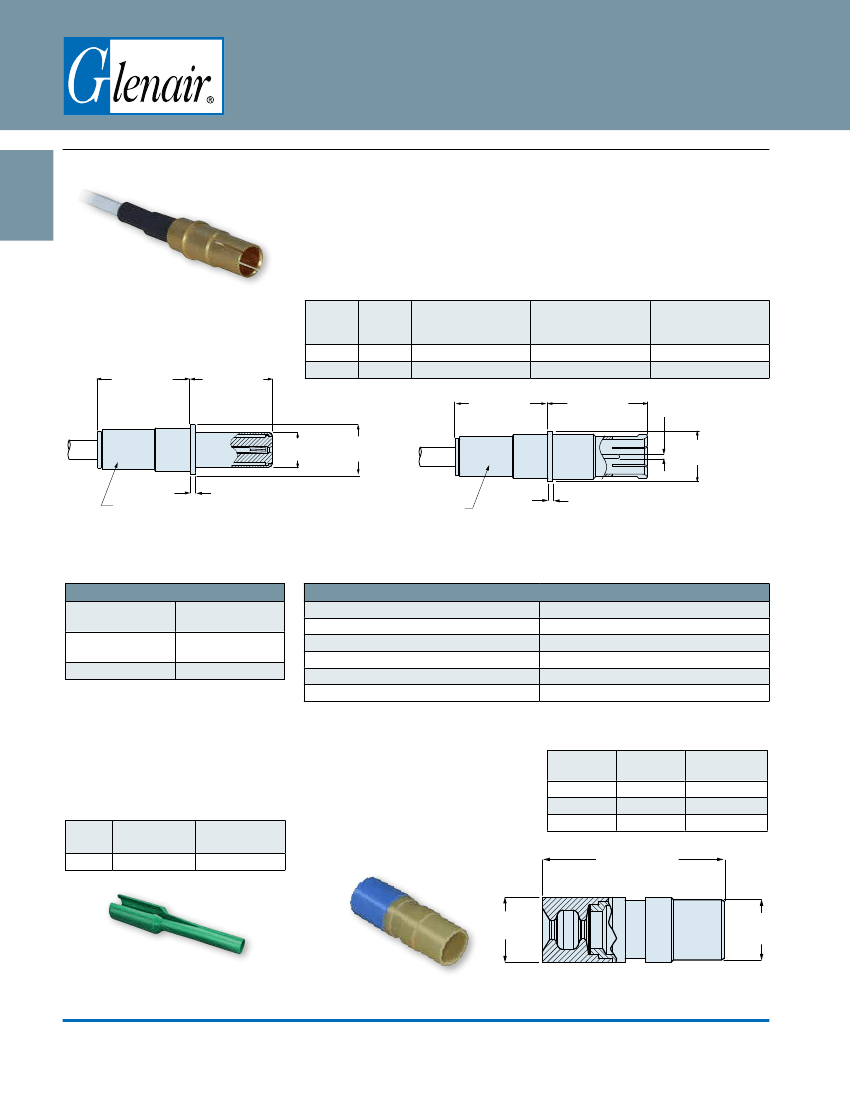

Mighty Mouse
with #8 Contacts
Mighty Mouse Connectors with Size #8 Quadrax, Twinax,
Coax or Power Contacts
Size #8 75 Ohm Coax Contacts 852-056-01 and 852-057-01
Size #8 coax contacts for 75 ohm video cable
K
Size 8 coax contacts fit aerospace-grade digital video cable. 75 ohm nominal
impedance. 0-4 GHz frequency range. Crimp termination. Supplied as unassembled
kit with contact body, center contact, outer ferrule and optional sealing boot.
These snap-in, rear-release contacts fit Glenair Series 80 Mighty Mouse connectors
and MIL-DTL-38999 Series I, III and IV connectors with size 8 contact cavities. Use
with aerospace-grade video cable shown on next page. Gold-plated copper alloy,
Teflon® insulator.
Fig.
Fig. 1
Fig. 2
Contact
Type
Pin
Socket
Part Number
Contact Only
852-056-01
852-057-01
.562 (14.27)
MAX
Part Number
Contact and Sealing
Boot
852-056-01F
852-057-01F
.625 (15.88)
± .006 (0.15)
Sealing Boot
859-042-01
859-042-01
Ø .0240 ± .0005
(0.61 ± 0.01)
Ø.316 (8.03)
.313 (7.95)
.033 (0.84)
.029 (0.74)
.562 (14.27)
MAX
.517 (13.13)
± .003 (0.08)
.219 (5.56) Ø.316 (8.03)
.313 (7.95)
.217 (5.51)
.033 (0.84)
.029 (0.74)
.218 (5.54)
HEX CRIMP
.218 (5.54)
HEX CRIMP
Fig. 1
Pin Contact
852-056-01
Materials, Finishes
Contact body, center
contact, ferrule
Contact finish
Dielectric
Copper Alloy
50 microinches gold
over nickel plating
Teflon®
DESCRIPTION
Nominal Impedance
Frequency Range
Dielectric Withstanding Voltage
Insulation Resistance
Durability
Fig. 2
Socket Contact
852-057-01
Specifications
REQUIREMENT
75 Ohms
0 – 4 GHz
1300 Vac sea level, 250 Vac at 50,000 feet
5000 megohms minimum
500 mating cycles
Contact Removal Tool
Plastic tool extracts wired contact from
connector. First, remove sealing boot,
then insert tool from rear of connector.
Size
#8
Part Number
859-049
Military Part
Number
M81969/14-12
Sealing Boot
Optional sealing boot is recommended.
Slide boot onto wire before terminating
contact. After contact is installed in
connector, slide boot forward into
connector grommet to seal the contact
cavity. "F" suffix on contact part number
specifies contact supplied with 859-
042-01 sealing boot.
Wire Dia.
(in.)
.090 - .130
.130 - .170
.170 - .205
Wire Dia.
(mm.)
2.3 - 3.3
3.3 - 4.3
4.3 - 5.2
Part Number
859-042-01
859-042-02
859-042-03
.985 (25.02)
MAX
.326
(8.28)
.350
(8.89)
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
K-24
E-Mail: sales@glenair.com

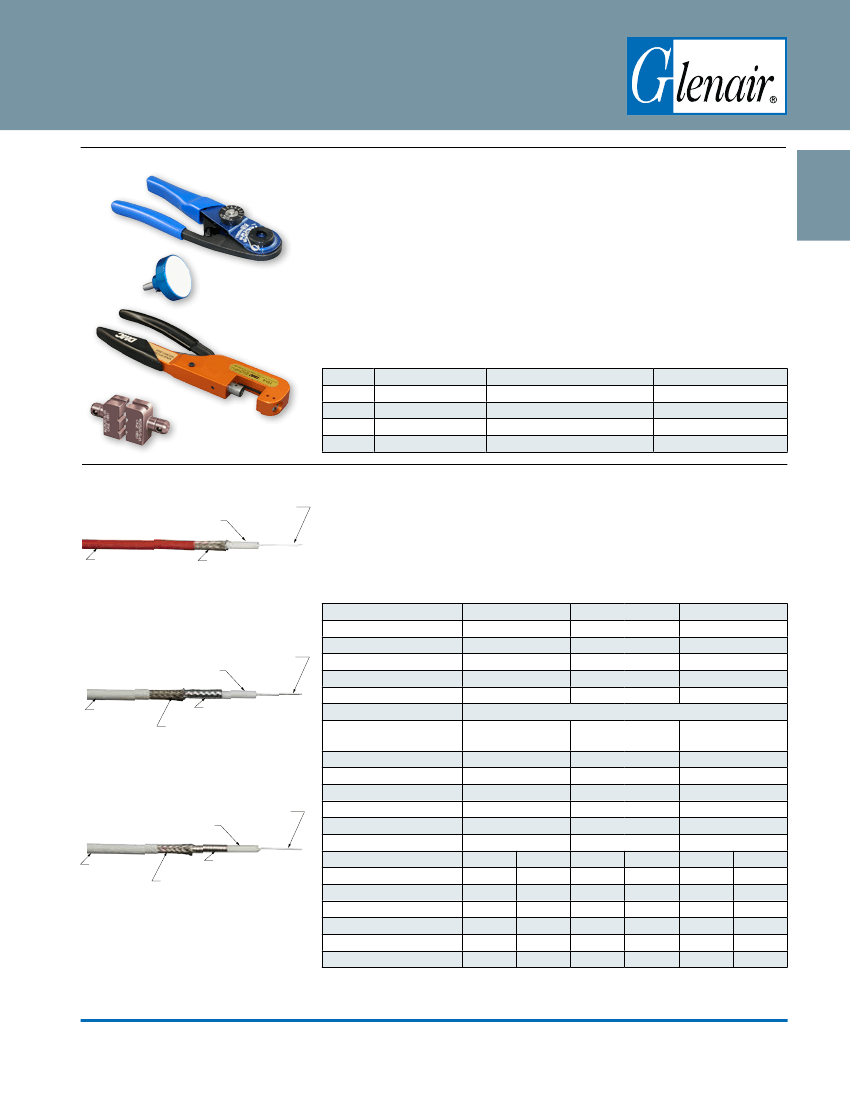

Size #8 75 Ohm Coax Contacts 852-056-01 and 852-057-01
Termination tools for size #8 75 ohm coax contacts
A
B
Terminate contacts to coaxial cable with precision hand tools. The inner contact
is terminated to the center conductor of the cable with a M22520/2-01 hand tool
and bayonet-type positioner. The outer ferrule is terminated to the cable shield
with a M22520/5-01 parallel action crimper and a hex die.
M22520/2-01 crimper. Requires
B
positioner,
ordered separately. These crimp tools
perform precision indents for gas-tight wire
terminations and excellent tensile strength.
Length is 6.75 inches, weight is approx. 10 oz.
A
B
C
Parallel action tool terminates cable shield
to contact ferrule. Use with
D
hex crimp dies.
11 inches OAL, 2.0 pounds. Anodized aluminum
frame, steel mechanism, plastic handles. Accepts
all M22520/5 die sets.
Hex die set for terminating cable shield to
contact ferrule. Hardened steel, black oxide
Daniels Part Number
AFM8
—
HX4
Y143
C
Positioner. Use with
A
crimper, ordered
separately. Positioner holds contact at proper
depth.
Figure
A
B
C
D
Part Number
809-015
859-072
809-129
859-047
D
finish.
Military Part Number
M22520/2-01
(none)
M22520/5-03
M22520/5-45
D
High performance 75 ohm coaxial cable
FOAMED FEP DIELCTRIC
Ø .086 (2.18)
SILVER-PLATED
CONDUCTOR
Ø .019 (0.48)
FEP JACKET
Ø .122 (3.10)
TINNED COPPER BRAID
Ø .102 (2.59)
E
75 ohm coaxial cable for RS170 video
applications. 50 dB shielding effectiveness.
Tinned copper braid shield. Red FEP jacket.
PIC™ brand video cable is specially designed and manufactured for reliable
performance in aircraft systems and other harsh environments involving high
temperature, EMI and corrosive materials. Improved strength, lower attenuation and
better shielding compared with M17/94-RG179. Silver-plated conductor, foamed FEP
dielectric, tinned copper braid, FEP or ETFE jacket. Syydrol resistant, RoHS compliant,
meets FAA FAR Parts 23 and 25, Appendix F flammability, complies with MIL-DTL-17.
E
960-130
V75268
75
50
RS170
None
F
960-131
V76261
75
90
RS170
G
960-132
V73263
75
110
SMPTE 292M
Glenair Part No.
SILVER-PLATED
CONDUCTOR
Ø .019 (0.48)
Ref. PIC™ Part No.
Impedance (ohms)
Shielding Effectiveness (dB)
Video Application
First Shield
Second Shield
Temperature Rating
Minimum Bend Radius
Weight (lbs/100 ft.)
Capacitance (pF/ft)
Velocity of Propagation %
Time Delay
Attenuation (dB/100 ft)
1 MHz
10 MHz
100 MHz
400 MHz
1.45 GHz
3 GHz
FOAMED FEP DIELCTRIC
Ø .086 (2.18)
ETFE JACKET
Ø .122 (3.10)
F
ALUMINIZED PLASTIC
FOIL
TINNED COPPER BRAID
Ø .107 (2.72)
75 ohm coaxial cable for RS170 video
applications. 90 dB shielding effectiveness.
100% coverage aluminized plastic foil under
tinned copper braid shield. ETFE jacket, white.
FOAMED FEP DIELCTRIC
Ø .086 (2.18)
SILVER-PLATED
CONDUCTOR
Ø .019 (0.48)
Tinned copper braid, 95% coverage
Aluminized film,
Silver plated helical
100% coverage
copper strip, 100%
-65° to +165° C
0.6 in. (15mm.)
1.1 lbs
16.0
80
1.28
Max.
0.55
1.77
5.7
11.8
24.6
37.4
Nominal
0.49
1.6
5.1
10.6
21.9
33.7
Max.
0.52
1.71
5.5
11.3
23.4
36.1
-65° to +165° C
0.65 in. (16.5mm.)
1.5 lbs
16.0
80
1.28
Nominal
0.43
1.4
4.5
9.6
20.0
30.9
Max.
0.58
1.6
5.0
10.6
22.0
34.0
-65° to +165° C
0.6 in. (15mm.)
1.2 lbs
16.0
80
1.28
Nominal
0.51
1.70
5.3
11.1
23.0
35.0
ETFE JACKET
Ø .125 (3.18)
75 ohm coaxial cable for SMPTE 292M
video applications. 110 dB shielding
effectiveness. 100% coverage helical copper
strip under tinned copper braid shield. ETFE
jacket, white.
G
SILVER PLATED
HELICAL COPPER STRIP
TINNED COPPER BRAID
Ø .107 (2.72)
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
K-25
E-Mail: sales@glenair.com
Mighty Mouse
with #8 Contacts
Mighty Mouse Connectors with Size #8 Quadrax, Twinax,
Coax or Power Contacts
K
