853-001 Overview

Size 8 Concentric Twinax Pin

Preview

Download Datasheet

View All

Size 8 Concentric Twinax Pin

D38999

M39029/90

853-001

Shielded

Contacts

Ser. I, II, III, IV

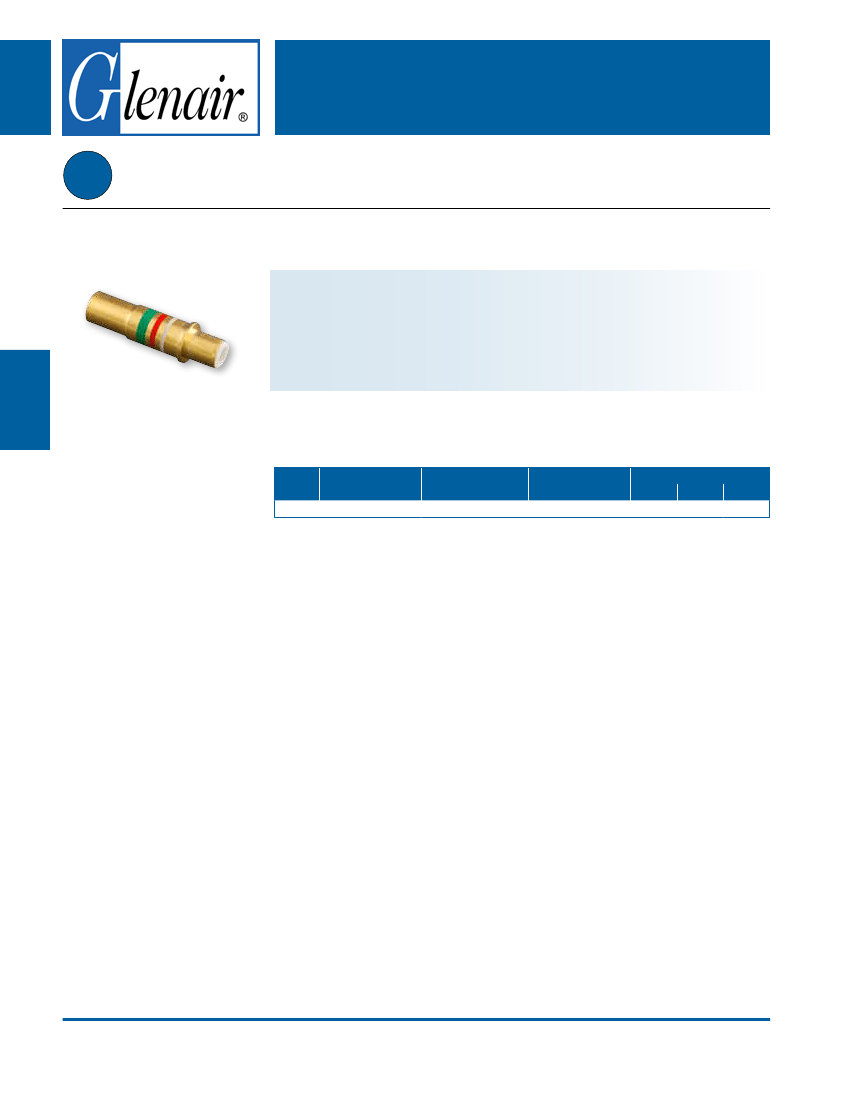

Size #8 Concentric Twinax Pin for MIL-DTL-38999 Series I, II, III and IV Connectors

(Inactive for New Design—Replaced by M39029/113)

These #8 concentric twinax pin contacts accept MIL-STD-1553 data bus twinax cable. Center

and intermediate contacts are rated at 1 amp, the outer contact 12 amps. DWV rating is 500 Vac

rms sea level, 125 Vac at 70,000 feet. Operating frequency is 0-20 MHz. Contacts are packaged

individually and shipped unassembled with instruction sheet. One contact consists of outer

contact , fluorocarbon dielectric, inner contact , intermediate contact and shield crimp bushing.

All contacts are gold-plated copper alloy. Approved to SAE AS39029. 5000 megohm insulation

resistance. Mates with: M39029/91.

Type

Cable

Accommodation Part Number

M17/176-00002

853-001-08-529

Military Part

Number

M39029/90-529

1st

Green

Color Band

2nd

3rd

Red

White

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

B-22
