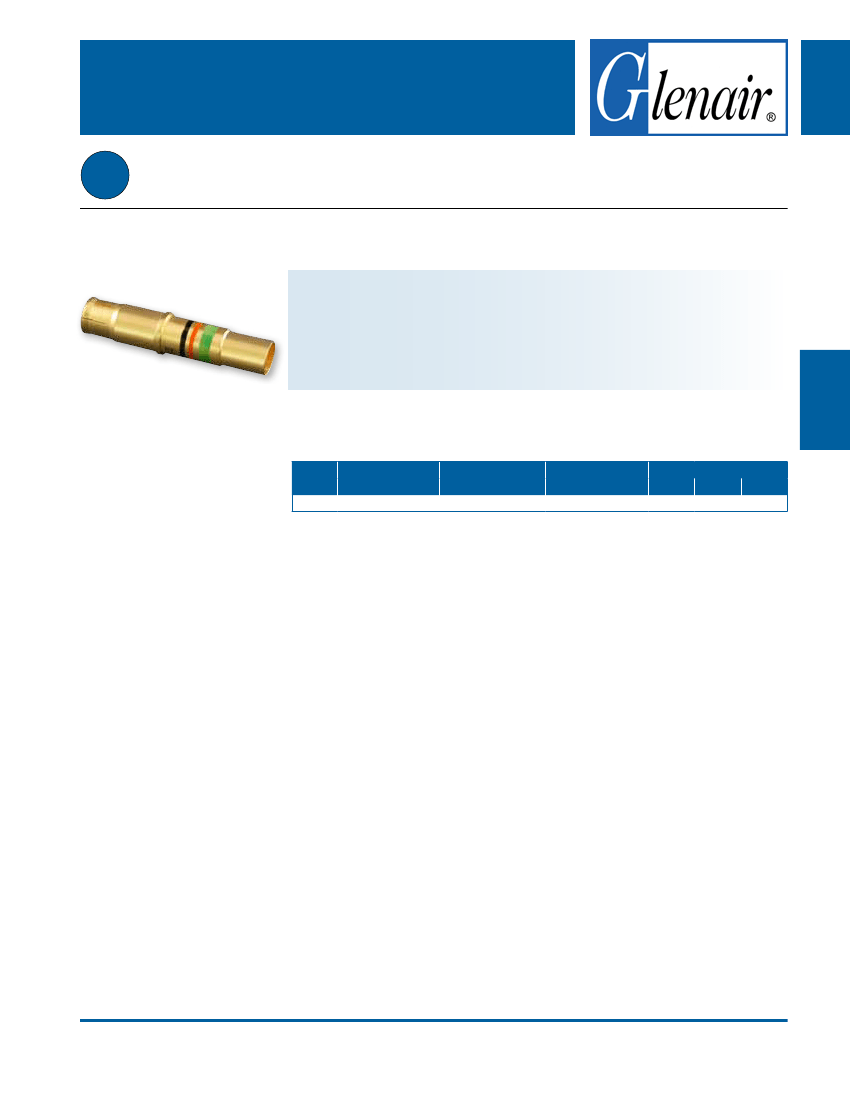

Size 8 Concentric Twinax Socket
D38999
Ser. I, III, IV
Size #8 Concentric Twinax Socket for MIL-DTL-38999 Series I, III and IV Connectors
(Inactive for New Design—Replaced by M39029/114)
These #8 concentric twinax socket contacts accept MIL-STD-1553 data bus twinax cable. Center
and intermediate contacts are rated at 1 amp, the outer contact 12 amps. DWV rating is 500 Vac
rms sea level, 125 Vac at 70,000 feet. Operating frequency is 0-20MHz. Contacts are packaged
individually and shipped unassembled with instruction sheet. One contact consists of outer
contact , fluorocarbon dielectric, inner contact , intermediate contact and shield crimp bushing.
All contacts are gold-plated copper alloy. Approved to SAE AS39029. 5000 megohm insulation
resistance. Mates with: M39029/90.
Type
Socket
Cable
Accommodation Part Number
M17/176-00002
853-002-08-530
Military Part
Number
M39029/91-530
1st
Green
Color Band
2nd
3rd
Orange
Black
