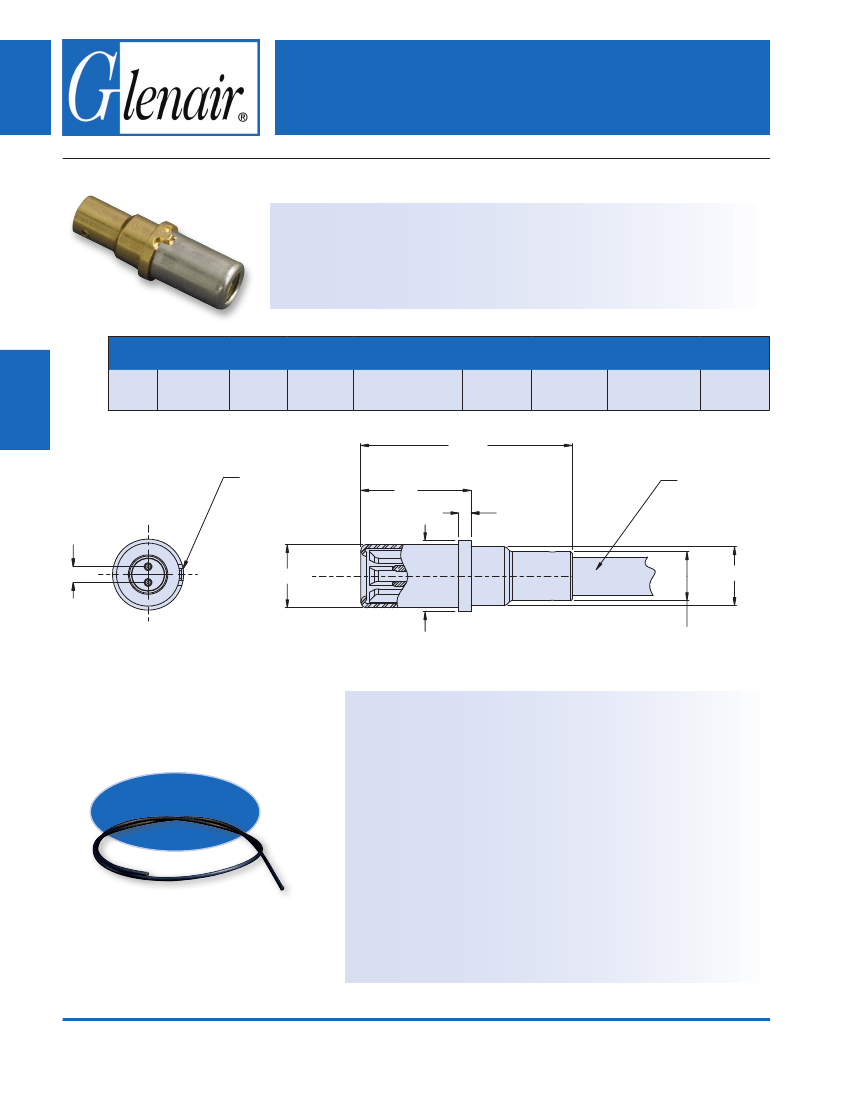

For Use with Mighty Mouse and Series 79 Micro-Crimp
853-015
Size #12 Differential Twinax Socket Contact
Shielded
Contacts
Type
Glenair
Part No.
853-015-01
Military
Part No.
N/A
Size #12 Differential Twinax Socket Contact for Multi-Gigabit Data Rate Applications
These solder terminated #12 twinax socket contacts accept 100 ohm twinax cable. Current rating
is 1 Amp. DWV rating is 500 Vac rms sea level, 125 Vac at 70,000 feet. Contacts are packaged
individually and shipped unassembled with instruction sheet. One contact consists of outer
contact and center contact. All contacts are gold-plated copper alloy. 5000 megohm insulation
resistance at 200Vdc. Mates with: 853-016. Ideally suited for multi-gigabit data rate applications
such as 1000 Base-T gigabit ethernet.
AWG
Wire Size
30
Cable
Accommodation
963-102-30
Impedence
100-Ohms
Nominal
Frequency
Range
DC to
10 GHz
VSWR
Insertion
Loss
B
Socket
1.1 + (.03 * F GHz) 1/3 *F GHz
.550 (14.0)
Max
Alignment Key
.290
(7.40)
Max
Glenair Differential
Pair Cable
(Ref. Only)
.033 (.084)
.040
(1.02)
Ø .161 (4.10) Max
Ø .151 (3.84) Max
Ø .188 (4.78)
Max
Ø .127 (3.23)
Max
Material and Finish
e
d
fo
r
u
s
e
w
i
t
h
8
5
3
-
0
1
5
-
01
963-102-30
Differential Pair Cable
Contact Body: Copper Alloy/Gold Plated
Center Contact: Copper Alloy/Gold Plated
ign
D
es
Electrical Parameters
Differential Impedence: 100-ohms nominal
Frequency Range: DC to 10 Ghz
VSWR: 1.1+(.03* F GHz)
Insertion Loss: 1/3* F GHz
Dielectric Withstanding Voltage: 500 Vrms
Insulation Resistence: 5000 Megohms minimum
Notes
Contact is designed to accommodate Glenair P/N 963-102-30 cable.
For assembly instructions, see AI85014.
Socket contact shall mate with Glenair Pin Contact P/N 853-016-XX.
For use in Glenair Mighty Mouse and Series 79 Micro-Crimp connectors only.
PCB Tail-equipped contacts also available. Consult factory.
© 2012 Glenair, Inc.
CAGE Code 06324
Rev. 5.21.15
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-28
