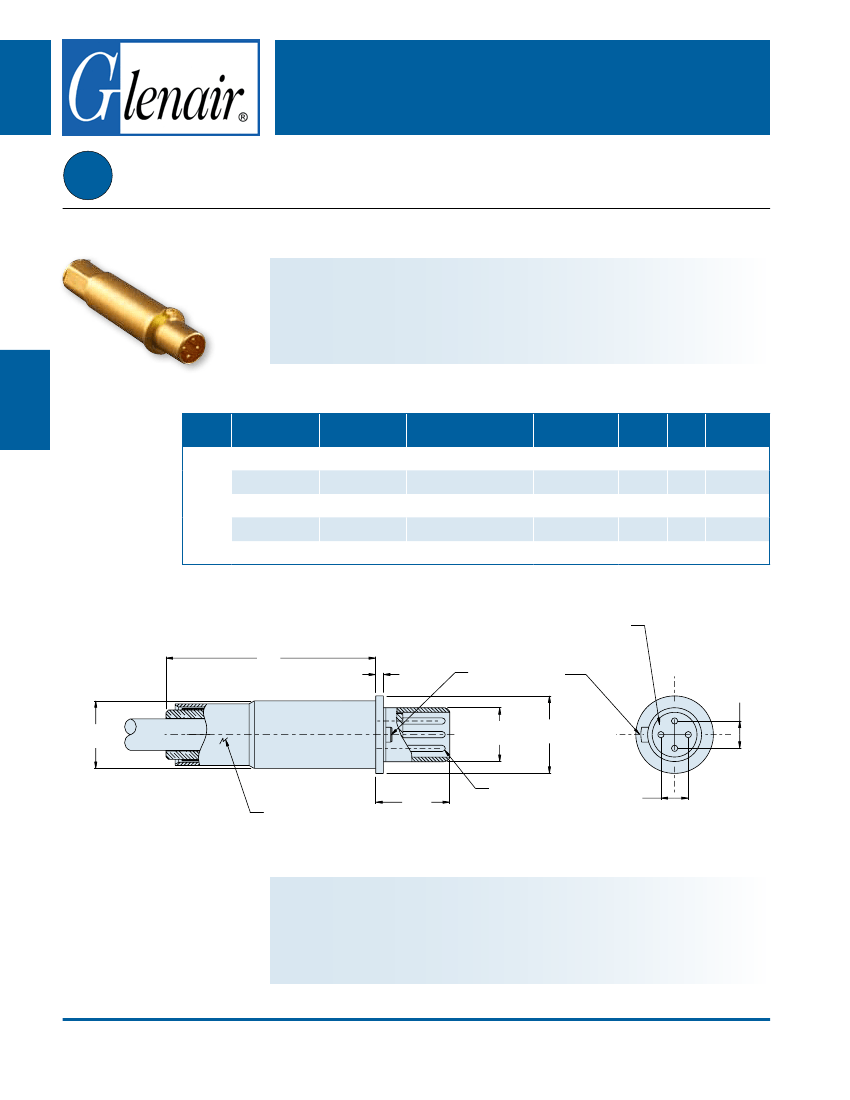

854-001

Crimp Quadrax Pin Contact

MIL-DTL-38999 Series III Type

.276

Ø .271

.219

Ø .217

“A” Hex Crimp

.305

.295

Ø .0250 ± .0005 Typ

.111

Material and Finish

Contact Body: Copper Alloy/Gold Plated

Inner Contact: Copper Alloy/Gold Plated

Crimp Bushing: Brass or equivalent/Gold Plated

Insulator: Teflon, Ultem Series 1000 or equivalent

Grommet/Follower: Fluorosilicone/Ultem 1000 or equivalent

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

B-26

.316

Ø .313

Shielded

Contacts

D38999

Series III

Size #8 Quadrax Pin Contact for Glenair 257-606 Connectors (D38999 Ser. III Type)

These #8 quadrax pin contacts accept 100 ohm quadrax cable. Center contacts are rated at 1 amp,

the outer contact 12 amps. DWV rating is 500 Vac rms sea level, 125 Vac at 70,000 feet. Contacts

are packaged individually and shipped unassembled with instruction sheet. One contact consists

of outer contact , fluorocarbon dielectric, inner contacts and shield crimp bushing. All contacts

are gold-plated copper alloy. 5000 megohm insulation resistance at 200Vdc. Mates with: 854-

002. Ideally suited for up to 1000 Base-T gigabit ethernet.

Type

Glenair

Part Number

854-001-01

854-001-02

854-001-03

854-001-04

854-001-05

Military

Part Number

N/A

Cable

Accommodation

Tensolite NF26Q100

Tensolite NF24Q100

Draka Fileca F-4704-6

Draka Fileca F-4704-4

Tensolite NF22Q100

Grommet

Follower

687-754-8-1

687-754-8-2

687-754-8-3

687-754-8-4

687-754-8-5

Cable

O.D.

.137

.163

.153

.175

.190

“A”

Hex

.218

.231

Wire Size

26 AWG

24 AWG

26 AWG

24 AWG

22 AWG

Pin No Designator

Ref Only, Not Marked on Part

.92

.033

.029

Polarization Key

.111
