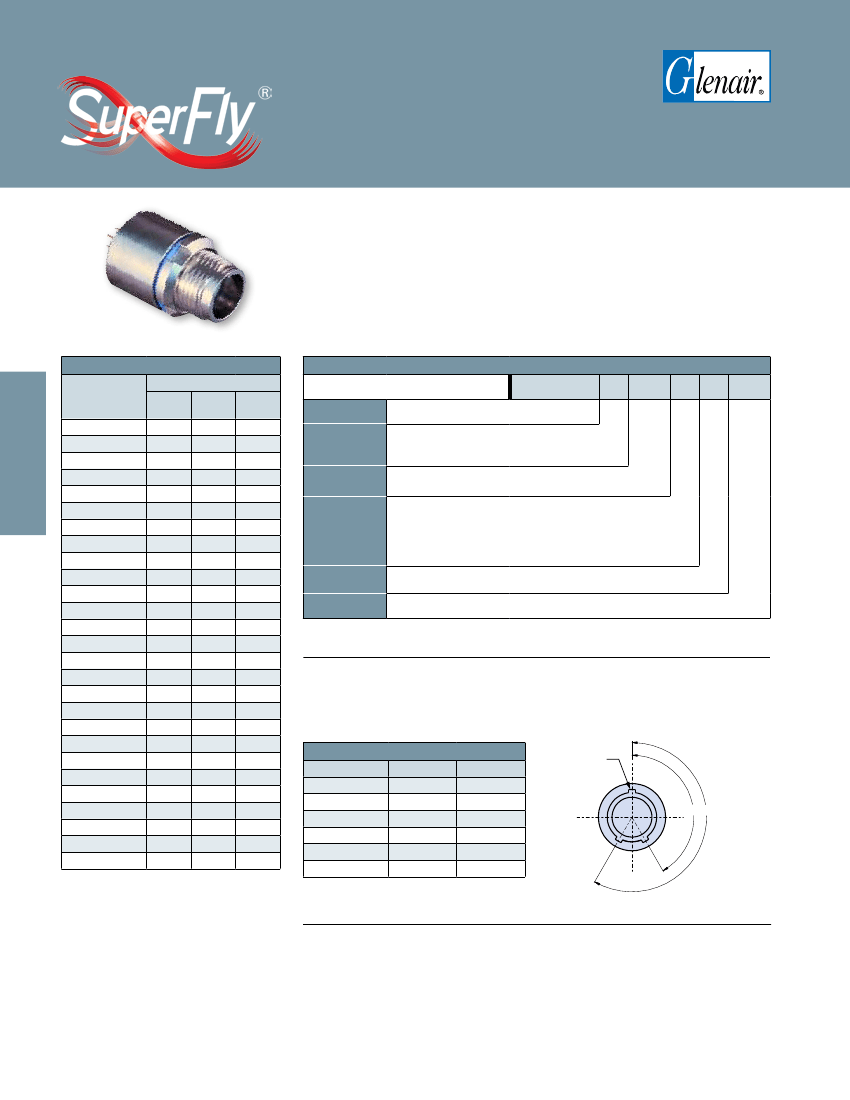

SERIES 880
Quick Disconnect
880-032R Rear Panel Mount,
Vertical PCB Receptacle
Series 880 Quick-Disconnect (QDC) rear panel mount, vertical PCB receptacles are
sealed with epoxy and meet IP67 requirements in mated condition. For open face
sealing in an unmated condition request modification code -518. Three contact
sizes are available with current ratings of 5A, 3A and 1A. Aluminum or stainless steel
housings and thermoplastic insulator. High performance crimp contacts factory
terminated to solid copper wire. Ultraminiature SuperFly® connectors are ideal for
soldier systems and other applications where reduced size and weight are critical.
Shell Size and Insert Arrangements
Insert
Arrangements
No. of Contacts
#23
Micro
Nano
5A.
3A.
1A.
—
—
7
—
—
—
2
3
—
—
—
4
—
—
—
4
7
—
—
—
—
10
—
6
—
7
—
—
—
—
2
3
—
—
4
—
4
—
7
—
4
—
—
10
—
6
6
—
—
—
—
—
19
13
22
10
2
—
2
—
—
19
4
—
—
22
8
4
—
—
31
10
12
—
37
14
44
19
—
19
—
How To Order
Sample Part Number
Series
Insert Style
Shell Size/
Insert Arr.
1
Material/
Finish
2
880-032R
A
= Unshrouded Contacts
B
= Shrouded Contacts
recessed within insulator
See Shell Size and Insert Arrangement Table
M
= Aluminum/electroless nickel RoHS compliant
ZR
= Aluminum/zinc-nickel, non-reflective with RoHS compliant
black chromate
MT
= Aluminum/nickel-PTFE RoHS compliant
ZMT
= Stainless steel/nickel-PTFE RoHS compliant
S
= Solder-dipped in 63/37 tin-lead
G
= Gold Plated
.080, .125, .175;
Length (‘L’) in inches
880-032R
A
-B7N
-M
S
-.125
B
B7N
C10N
C2M2N
D3M
D2W2N
E3W
E4M
E19N
E4M4N
F4W
F7M
F22N
F4M8N
F4W4N
G7W
G10M
G31N
G6M10N
G6M12N
H10W
H37N
H6W14N
J44N
J7W19N
K19M
K13M19N
L22M
PC Tail Finish
PC Tail Length
Standard Superfly connectors have a single master key. Versions with three keys are
also available if alternate key positions are required. Add sufix code 686 to the part
number per the following example: 880-032RA-B7N-M004-.125-686A
Plug Alternate Key Positions
Suffix Code
686A
686B
686C
686D
686E
686F
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
Master Key
MOD-686 POLARIZING OPTIONS
A° B°
First letter of insert arrangement represents
connector shell size, as in this example:
K13M19N
MOD-518 OPEN FACE SEALING
For IP67 performance in open face (unmated) condition, use suffix -518.
Example: 880-032RA-B7N-M004-.125-518
18
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 88 SuperFly® Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 880
Quick Disconnect
880-032R Rear Panel Mount,
Vertical PCB Receptacle

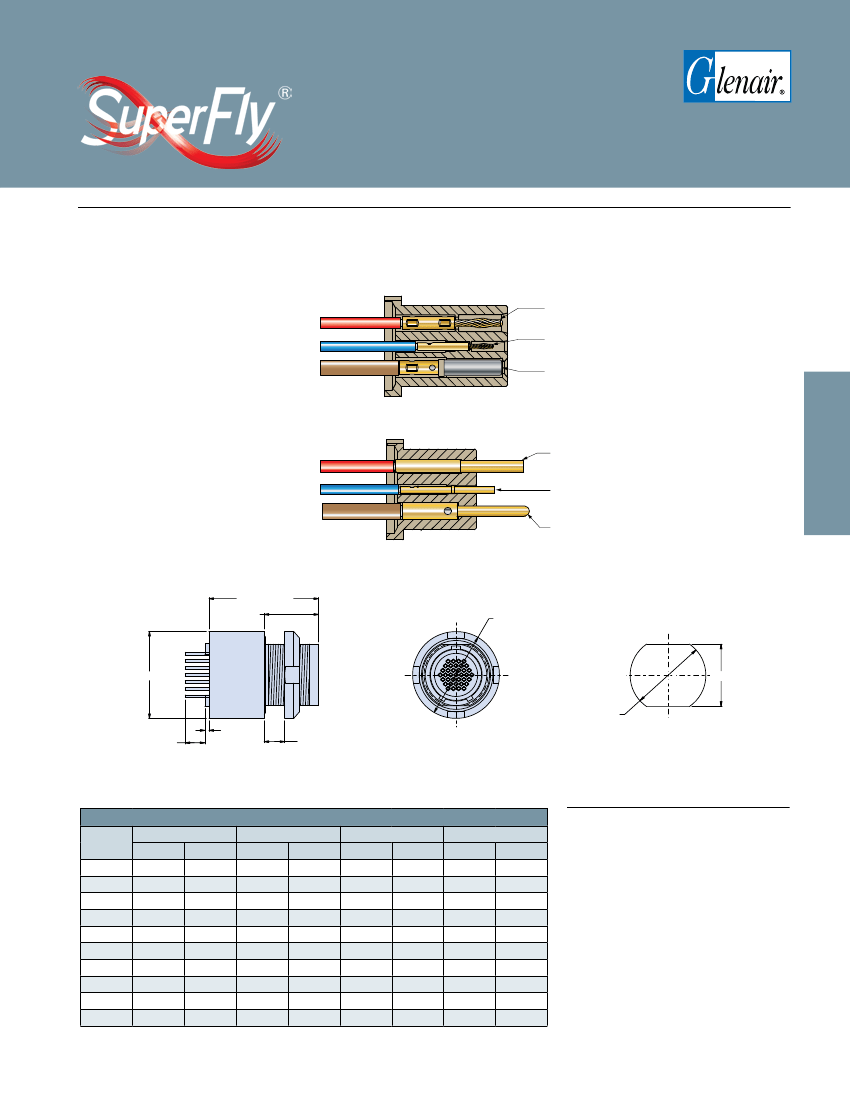

ABOUT SHROUDED AND UNSHROUDED SUPERFLY® CONFIGURATIONS
Shrouded contacts are recessed within the insert. Unshrouded contacts extend from the insert face. Shrouded inserts contain
1 amp and 3 amp Twistpin contacts along with 5 amp socket contacts. Unshrouded inserts contain 1 amp and 3 amp sockets
and 5 amp pin.
3 Amp
Micro Twistpin
Shrouded
Type B Insert
1 Amp
Nano Twistpin
5 Amp
#23 Socket
3 Amp
Micro Socket
Unshrouded
Type A Insert
B
1 Amp
Nano Socket
5 Amp
#23 Pin
.67 (17.02)
.33 (8.38)
ØA
ØB
øC
D
"L"
.025
(.64)
.125 (3.18) Max
Panel Thickness
RECOMMENDED
PANEL CUTOUT
Dimensions
Shell Size
B
C
D
E
F
G
H
J
K
L
øA
In
.392
.412
.432
.451
.471
.490
.530
.569
.589
.628
mm
9.9568
10.4648
10.9728
11.4554
11.9634
12.446
13.462
14.4526
14.9606
15.9512
In
.392
.412
.432
.451
.471
.490
.530
.569
.589
.628
øB
mm
9.96
10.46
10.97
11.46
11.96
12.45
13.46
14.45
14.96
15.95
In
.283
.305
.324
.344
.364
.383
.419
.459
.478
.518
øC
mm
7.19
7.75
8.23
8.74
9.25
9.73
10.64
11.66
12.14
13.16
D Flats
In
mm
.241
6.12
.261
.281
.300
.320
.340
.379
.418
.438
.478
6.63
7.14
7.62
8.13
8.64
9.63
10.62
11.13
12.14
1. See Section A for insert
arrangement layouts
2. See Section A for additional finish
options
NOTES
