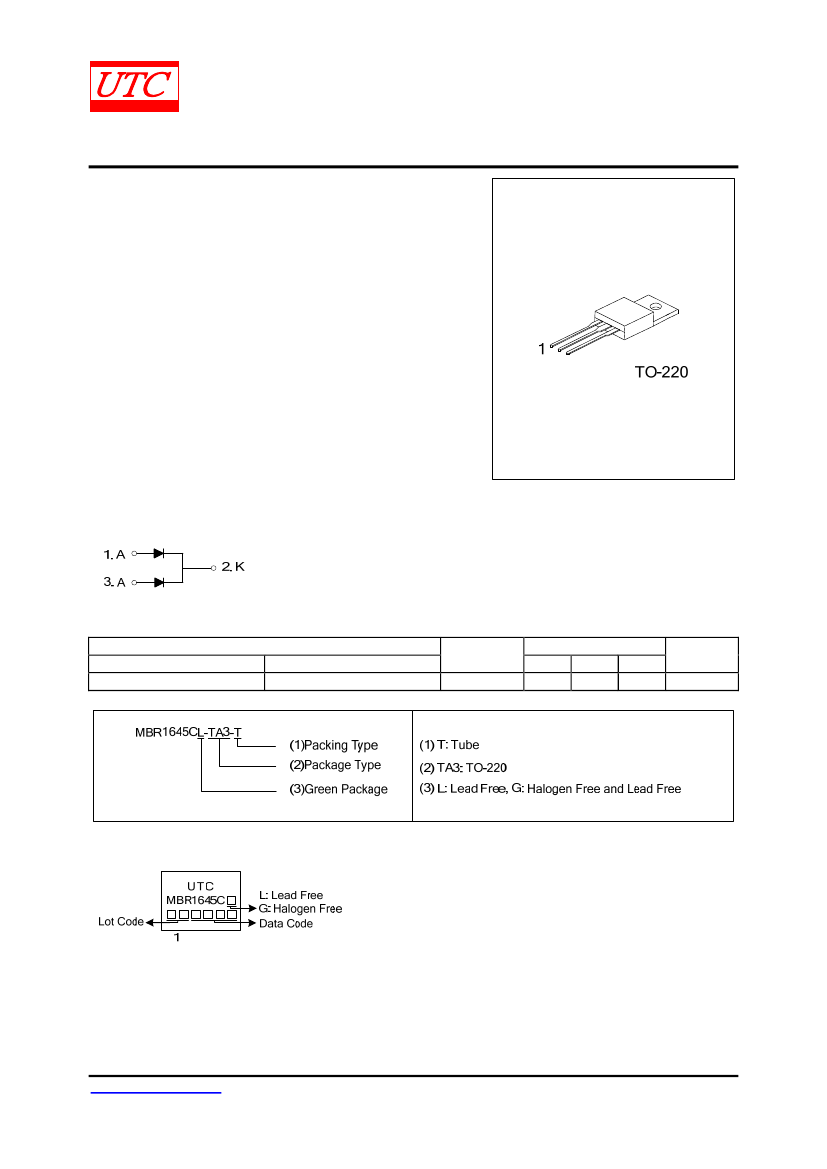

UNISONIC TECHNOLOGIES CO., LTD
MBR1645C
Preliminary
DIODE
10A SCHOTTKY BARRIER
RECTIFIER
DESCRIPTION
The UTC
MBR1645C
is a Schottky Barrier Rectifier with high
efficiency, low power dissipation and high current capacity. It can
be applied in high frequency, low voltage inverters, polarity
protection and free wheeling applications.
FEATURES
* High surge capability
* High efficiency, low power dissipation, high current capability, low
forward voltage drop
* Guardring for overvoltage protection
SYMBOL
ORDERING INFORMATION
Ordering Number
Halogen Free
MBR1645CG-TA3-T
K: Cathode
Package
TO-220
Pin Assignment
1
2
3
A
K
A
Packing
Tube
Lead Free
MBR1645CL-TA3-T
Note: Pin Assignment: A: Anode
MARKING
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 3
QW-R202-052.a
MBR1645C
Preliminary
DIODE
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C unless otherwise specified)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
PARAMETER
SYMBOL
RATINGS
UNIT
DC Blocking Voltage
V
RM
45
V
Working Peak Reverse Voltage
V
RWM
45
V
Peak Repetitive Reverse Voltage
V
RRM
45
V
RMS Reverse Voltage
V
R(RMS)
31.5
V
Average Rectified Output Current
Per Leg
8
A
I
O
(T
C
=105°C)
16
A
Total
Non-Repetitive Peak Forward Surge Current 8.3ms
I
FSM
125
A
Single Half Sine-Wave Superimposed on Rated Load
Operating Junction Temperature
T
J
+150
°C
Storage Temperature
T
STG
-55~+150
°C
Note: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. Thermal resistance junction to case mounted on heatsink.
THERMAL CHARACTERISTICS (PER LEG)
PARAMETER
SYMBOL
θ
JA
θ
JC
RATINGS
60
2
UNIT
°С/W
°С/W
Junction to Ambient
Junction to Case
ELECTRICAL CHARACTERISTICS (Per Leg)
(T
A
=25°C,
unless otherwise specified.)
SYMBOL
V
(BR)R
MIN
45
TYP MAX UNIT
V
0.70
V
0.57
V
100
μA
50
mA
PARAMETER
Reverse Breakdown Voltage (Note 1)
TEST CONDITIONS
I
R
=0.5mA
I
F
=8A, T
J
=25°C
Forward Voltage Drop
V
FM
I
F
=8A, T
J
=125°C
V
R
=45V, T
J
=25°C
Leakage Current (Note 1)
I
RM
V
R
=45V, T
J
=125°C
Notes: 1. Short duration pulse test used to minimize self-heating effect.
2. Thermal resistance junction to case mounted on heatsink.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R202-052.a
MBR1645C
Preliminary
DIODE
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
