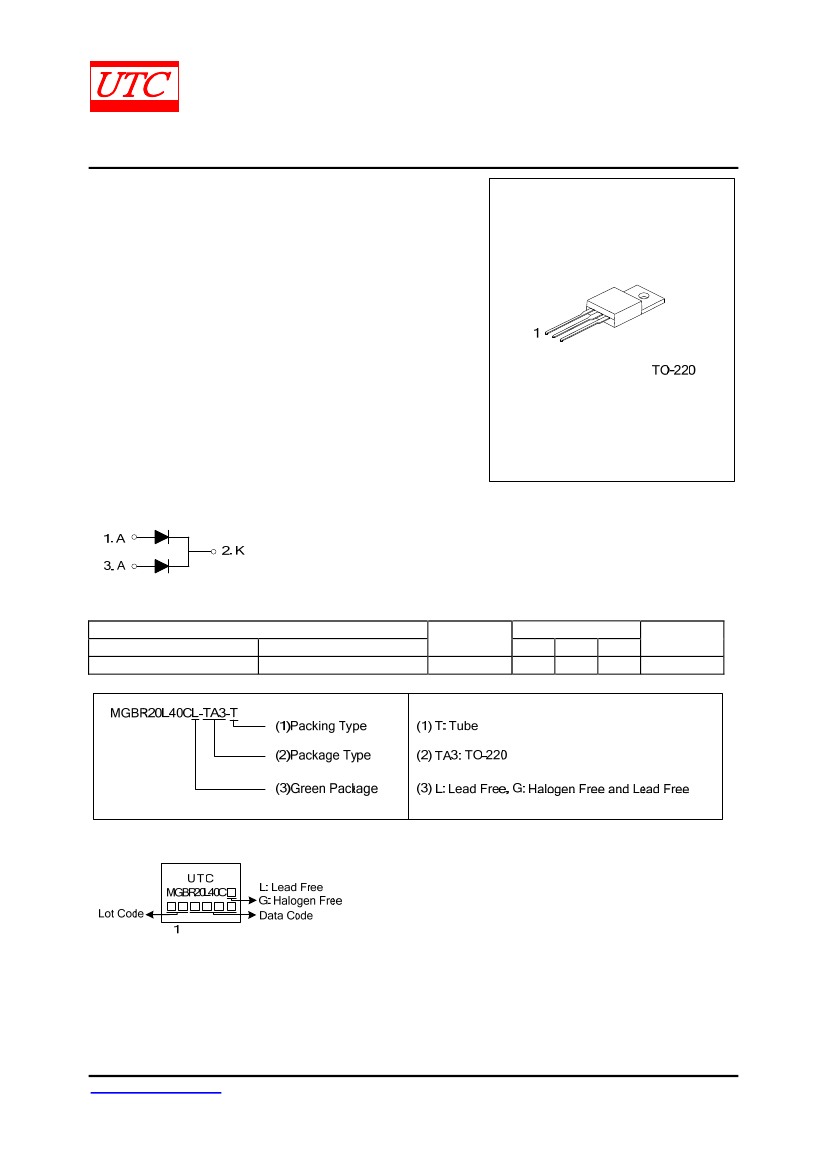

UNISONIC TECHNOLOGIES CO., LTD
MGBR20L40C
Preliminary
DIODE
DUAL MOS GATED BARRIER
RECTIFIERS
DESCRIPTION
The UTC
MGBR20L40C
is a dual mos gated barrier rectifiers, it
uses UTC’s advanced technology to provide customers with high
current capability, low forward voltage and high switching speed,
etc.
FEATURES
* Low forward voltage
* High switching speed
* High current capability
SYMBOL
ORDERING INFORMATION
Package
TO-220
Pin Assignment
1
2
3
A
K
A
Packing
Tube
Ordering Number
Lead Free
Halogen Free
MGBR20L40CL-TA3-T
MGBR20L40CG-TA3-T
Note: Pin Assignment: A: Anode K: Cathode
MARKING
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 3
QW-R204-058.b
MGBR20L40C
Preliminary
DIODE
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C unless otherwise specified)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
PARAMETER
SYMBOL
RATINGS
UNIT
DC Blocking Voltage
V
RM
40
V
Working Peak Reverse Voltage
V
RWM
40
V
Peak Repetitive Reverse Voltage
V
RRM
40
V
Average Rectified Forward Current
Per Leg
10
A
I
O
(Rated VR-20KHz Square Wave) – 50%
Total
20
A
duty cycle
Peak Forward Surge Current - 1/2 60Hz
I
FSM
120
A
Peak Repetitive Reverse Surge Current (2μS-1KHz)
I
RRM
2
A
Operating Junction Temperature
T
J
-65~+150
°C
Storage Temperature
T
STG
-65~+150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL CHARACTERISTICS (PER LEG)
SYMBOL
θ
JA
θ
JC
RATINGS
62.5
2
UNIT
°C/W
°C/W
PARAMETER
Junction to Ambient
Junction to Case
ELECTRICAL CHARACTERISTICS-(PER LEG)
(T
A
=25°C
unless otherwise specified.)
SYMBOL
V
(BR)R
MIN
40
TYP MAX UNIT
V
0.55
V
0.53
V
500
μA
100 mA
TEST CONDITIONS
I
R
=0.50mA
I
F
=20A, T
J
=25°C
Instantaneous Forward Voltage
V
FM
I
F
=20A, T
J
=125°C
V
R
=40V, T
J
=25°C
Instantaneous Reverse Current (Note 1)
I
RM
V
R
=40V, T
J
=125°C
Notes: 1. Short duration pulse test used to minimize self-heating effect.
2. Thermal resistance junction to case mounted on heatsink.
PARAMETER
Reverse Breakdown Voltage (Note 1)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R204-058.b
MGBR20L40C
Preliminary
DIODE
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
