24.0MHZIQXO-70A datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 24.0MHZIQXO-70A

24.0MHZIQXO-70A: DescriptionCRYSTAL OSCILLATOR, CLOCK, 24 MHz, HCMOS/TTL OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size490KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

24.0MHZIQXO-70A Overview

CRYSTAL OSCILLATOR, CLOCK, 24 MHz, HCMOS/TTL OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 4 PIN

24.0MHZIQXO-70A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compli
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL; BULK
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Nominal operating frequency	24 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/TTL
Output load	50 pF
physical size	7.5mm x 5.0mm x 1.5mm
longest rise time	7 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

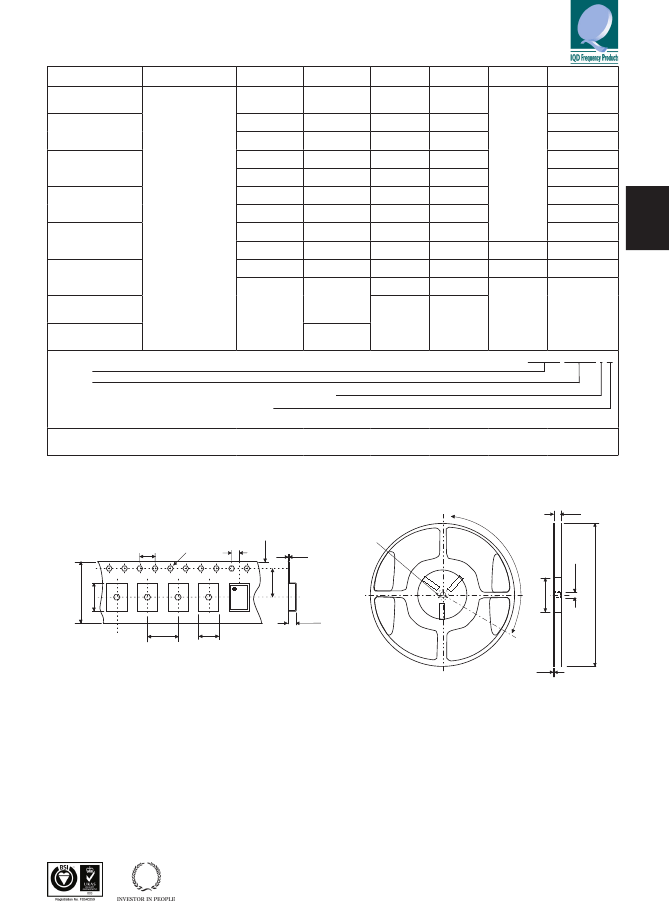

IQXO-70, -71 SMD CLOCK OSCILLATORS

ISSUE 10; 1 NOVEMBER 2008 - RoHS 2002/95/EC

Description

Outline (mm)

Fast Make Capability

▪

CLOCK

OSCILLATORS

0.1

Please see CFPP-72, 73 series Programmable Oscillators

for nearest equivalent fast make parts

7 x 5mm

12kHz to 170MHz

Tri-state HCMOS/TTL (5.0V) (IQXO-70), Load 50pF max

7.5

1.5

Package Outline

▪

5.0

▪

Surface mount oscillators in a ceramic package with a

hermetically sealed metal lid available in two voltages

Pad Connections

1. Enable/Disable

2. GND

3. Output

4. +Vs

Solder pad layout

1.21

2.6

5.08

1.4

2.0

1.8

Frequency Range

Output Compatibility & Load

Tri-state HCMOS (3.3V) (IQXO-71), Load 15pF max

±25ppm, ±50ppm, ±100ppm (inclusive of supply voltage and

output load variations over the operating temperature range)

–10 to 70°C (IQXO-70, -71)

–40 to 85°C (IQXO-70I, -71I)

–55 to 125°C

Logic ‘1’ (IQXO-70 2.2V min, IQXO-71 0.7Vs min) to pad 1

enables oscillator output

Logic ‘0’ (IQXO-70 0.8V max, IQXO-71 0.3Vs max) to pad 1

disables oscillator output; when disabled the oscillator output

goes to the high impedance state,

No connection to pad 1 enables oscillator output

Shock: MIL-STD-202F, Method 213B (1000G, 0.5ms, 1/2

sine)

Vibration: MIL-STD-202F, Method 204D, Test condition D

20G Frequency range 10-2000Hz, 4 hrs in X, Y & Z axes

(total 12 hrs)

Standard Frequency Stabilities

Output Waveform

5.08

Operating Temperature Range

+Vs

90%Vs

1.2

Storage Temperature Range

50%Vs

Tri-state Operation

10%Vs

Duty cycle = t x 100(%)

Environmental

Test Circuit

+Vs

Power

Supply

+Vs

Oscillator

0.1

Frequency

Counter

Marking Includes

Model Number + Frequency

Bulk or Tape and Reel

Frequency + Model Number + Operating Temperature Code

(if applicable) + Frequency Stability

Packaging

Minimum Order Information Required

Oscilloscope

15pF*

Inclusive of jigging and equipment capacitance

IQD Frequency Products Ltd, Station Road, Crewkerne, Somerset TA18 8AR, United Kingdom

Tel: +44 (1460) 270200; Fax: +44 (1460) 72578;

Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com

4.2

2.4V

1.4V

0.4V
