Series 970 PowerTrip™ Connectors and Accessories
Accessories

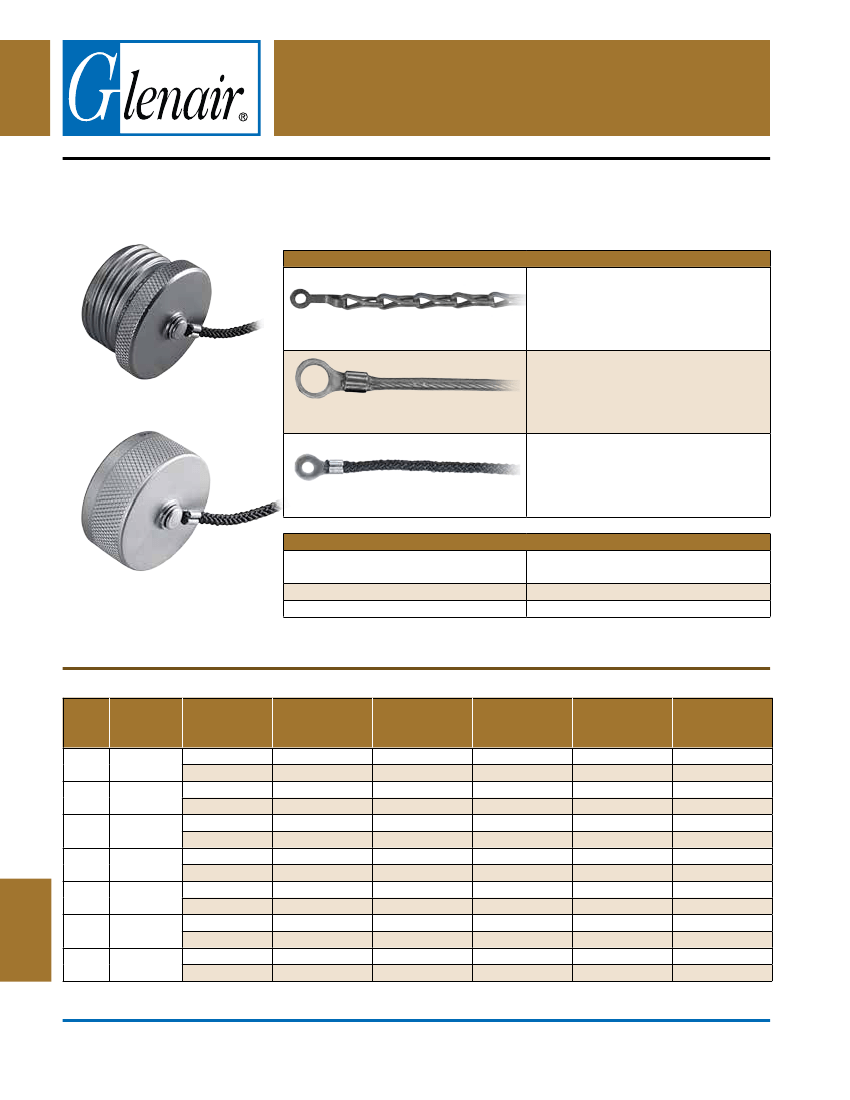

660PS097 & 098 Protective Covers
METAL PROTECTIVE COVERS
Metal covers protect unmated Series 970 connectors. Available with no attachment
(see table below for part numbers), or choose sash chain, wire rope or nylon cord
attachments from the ordering table on the following page.
H
Accessories
ATTACHMENT OPTIONS
#8 sash chain, 300 series stainless steel,
passivated. Glenair’s most popular attachment
option for circular connector covers.
Sash Chain
Tough, flexible translucent FEP teflon® jacket
over stainless steel, +200°C., resists weather,
chemicals and abrasion. Glenair’s best selling
wire rope. 1/16 inch diameter uncoated, .09
inch (2.3 mm) finished diameter.
Plug Cover
Teflon
®
Coated SST Wire Rope
Black braided nylon cord. Very flexible, very
good abrasion resistance, good chemical
resistance. .120” (3mm) diameter. +125°C.
Black Nylon Cord
MATERIALS AND FINISHES
Cover
Receptacle Cover
Aluminum or Stainless Steel. See ordering
information for finish options.
Silicone
Stainless Steel
Gasket (Receptacle Cover)
Rivet, RIng, Clevis
PROTECTIVE COVERS WITH NO ATTACHMENT (SEE NEXT PAGE FOR ATTACHMENT OPTIONS)
SHELL THREAD
SIZE
SIZE
18
20
24
28
32
36
40
1.125-.1P-.3L-TS
1.250-.1P-.3L-TS
1.500-.1P-.3L-TS
TYPE
Plug Cover
Receptacle Cover
Plug Cover
Receptacle Cover
Plug Cover
ALUMINUM/
NICKEL
660PS097ME18N
660PS098ME18N
660PS097ME20N
660PS098ME20N
660PS097ME24N
660PS098ME24N
660PS097ME28N
660PS098ME28N
660PS097ME32N
660PS098ME32N
660PS097ME36N
660PS098ME36N
660PS097ME40N
660PS098ME40N
ALUMINUM/
NICKEL-
PTFE
660PS097MT18N
660PS098MT18N
660PS097MT20N
660PS098MT20N
660PS097MT24N
660PS098MT24N
660PS097MT28N
660PS098MT28N
660PS097MT32N
660PS098MT32N
660PS097MT36N
660PS098MT36N
660PS097MT40N
660PS098MT40N
ALUMINUM/
OD
CADMIUM
660PS097NF18N
660PS098NF18N
660PS097NF20N
660PS098NF20N
660PS097NF24N
660PS098NF24N
660PS097NF28N
660PS098NF28N
660PS097NF32N
660PS098NF32N
660PS097NF36N
660PS098NF36N
660PS097NF40N
660PS098NF40N
CAGE Code 06324
ALUMINUM/
STAINLESS
BLACK
STEEL/
ZINC-NICKEL PASSIVATED
660PS097ZR18N
660PS098ZR18N
660PS097ZR20N
660PS098ZR20N
660PS097ZR24N
660PS098ZR24N
660PS097ZR28N
660PS098ZR28N
660PS097ZR32N
660PS098ZR32N
660PS097ZR36N
660PS098ZR36N
660PS097ZR40N
660PS098ZR40N
660PS097Z118N
660PS098Z118N
660PS097Z120N
660PS098Z120N
660PS097Z124N
660PS098Z124N
660PS097Z128N
660PS098Z128N
660PS097Z132N
660PS098Z132N
660PS097Z136N
660PS098Z136N
660PS097Z140N
660PS098Z140N
Printed in U.S.A.
Receptacle Cover
Plug Cover
1.750-.1P-.3L-TS
Receptacle Cover
Plug Cover
Receptacle Cover
Plug Cover
Receptacle Cover
Plug Cover
Receptacle Cover
2.000-.1P-.3L-TS
2.250-.1P-.3L-TS
2.500-.1P-.3L-TS
© 2013 Glenair, Inc.
Series 970 PowerTrip™
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
78
E-Mail: sales@glenair.com
660PS097 & 098 Protective Covers

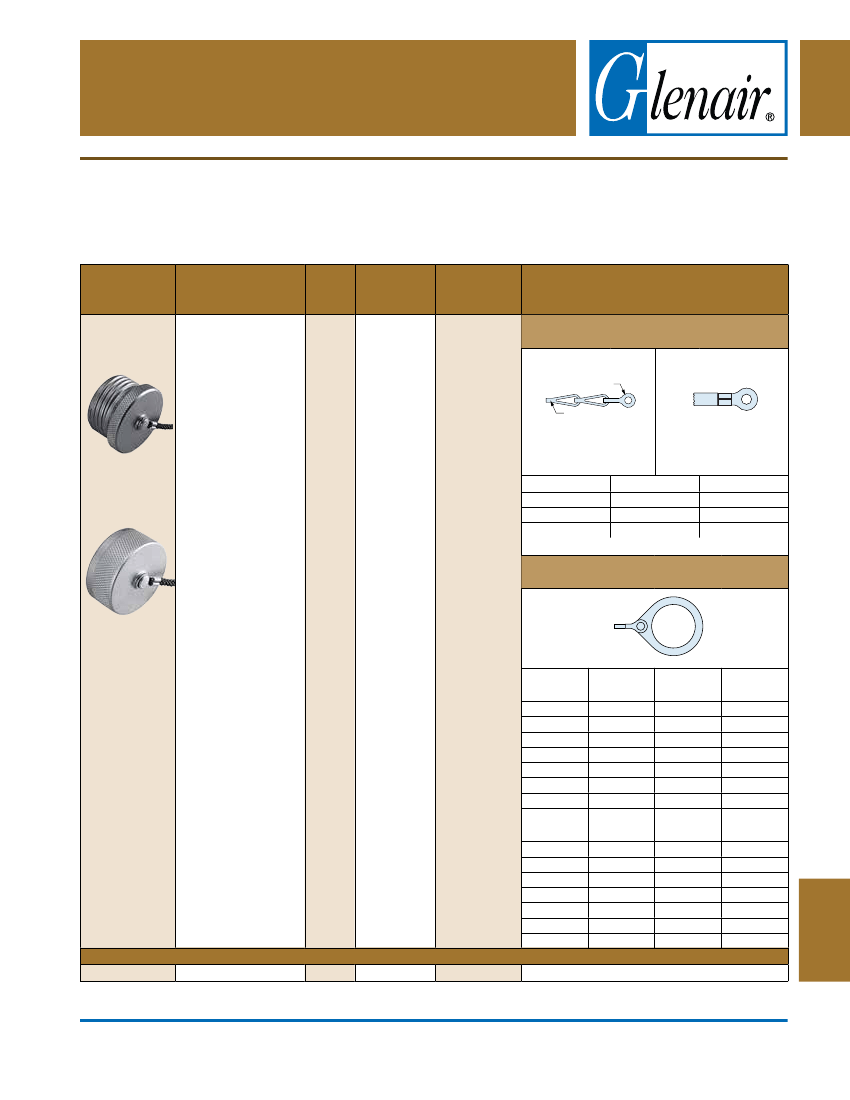

PROTECTIVE COVERS
Attach covers to panel or cable connector with sash chain or rope. Large ring fits under
jam nut of panel mount receptacle or over accessory thread of cable connector (captivate
with backshell or adapter). Ring terminal fits #4, #6 or #8 screws on backshell or square
flange panel receptacle mounting screws. Split rings also available-see next page.
HOW TO ORDER
SERIES
SHELL MATERIAL SHELL
ATTACHMENT ATTACHMENT
FITTING TYPE AND DIAMETER
/ FINISH
SIZE
TYPE
LENGTH
(SEE NEXT PAGE FOR ADDITIONAL SIZES)
660PS097
Plug Cover
Aluminum /
Electroless Nickel
RoHS Compliant
Aluminum /
Cadmium with Olive
Drab Chromate
ME
NF
18
20
24
28
32
36
40
No
attachment
Sash Chain
N
S
H
Length in
Inches
3 inches
Ring Terminal or Clevis for Attaching
With #4, #6 or #8 Screw
CLEVIS
SASH CHAIN
B
3
4
5
6
4 inches
5 inches
6 inches
Other
lengths are
available,
including
fractional
sizes.
EXAMPLE:
for a 7 ½
inch length,
use
7.5
Clevis Fitting
Type S Chain
Type H and G Rope
Ring Terminal
660PS098
Receptacle
Cover
Aluminum / Zinc-
Nickel with Non-
Reflective Black
Chromate
RoHS Compliant
Aluminum / Nickel-
PTFE
RoHS Compliant
Stainless Steel /
Passivated
RoHS Compliant
ZR
Teflon
Coated
SST Wire
Rope
Black Nylon
Rope
Code
G
-06
-09
-03
Screw Size
#4
#6
#8
.125
.156
.191
Ring I.D.
MT
Ring for Attaching Under Jam Nut
Receptacle or Over Accessory Thread
Z1
Code
-21
-23
-27
-31
-35
-40
-44
-19
-21
-23
-30
-33
-40
-44
Code
660PS097
© 2013 Glenair, Inc.
MT
24
Sample Part Number
Shell
Size
18
20
24
28
32
36
40
Shell
Size
18
20
24
28
32
36
40
Jam Nut
Thd.
1.250
1.4375
1.625
1.9375
2.125
2.375
2.625
1.265
1.453
1.640
1.953
2.140
2.406
2.656
Ring I.D.
Access.
Thd.
1.125
1.250
1.500
1.750
2.000
2.250
2.500
1.140
1.265
1.453
1.875
2.077
2.406
2.656
Ring I.D.
H
S
4
-06
Printed in U.S.A.
Series 970 PowerTrip™
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
79
E-Mail: sales@glenair.com
Accessories
Series 970 PowerTrip™ Connectors and Accessories
Accessories
Series 970 PowerTrip™ Connectors and Accessories
Accessories
660PS097 & 098 Protective Covers

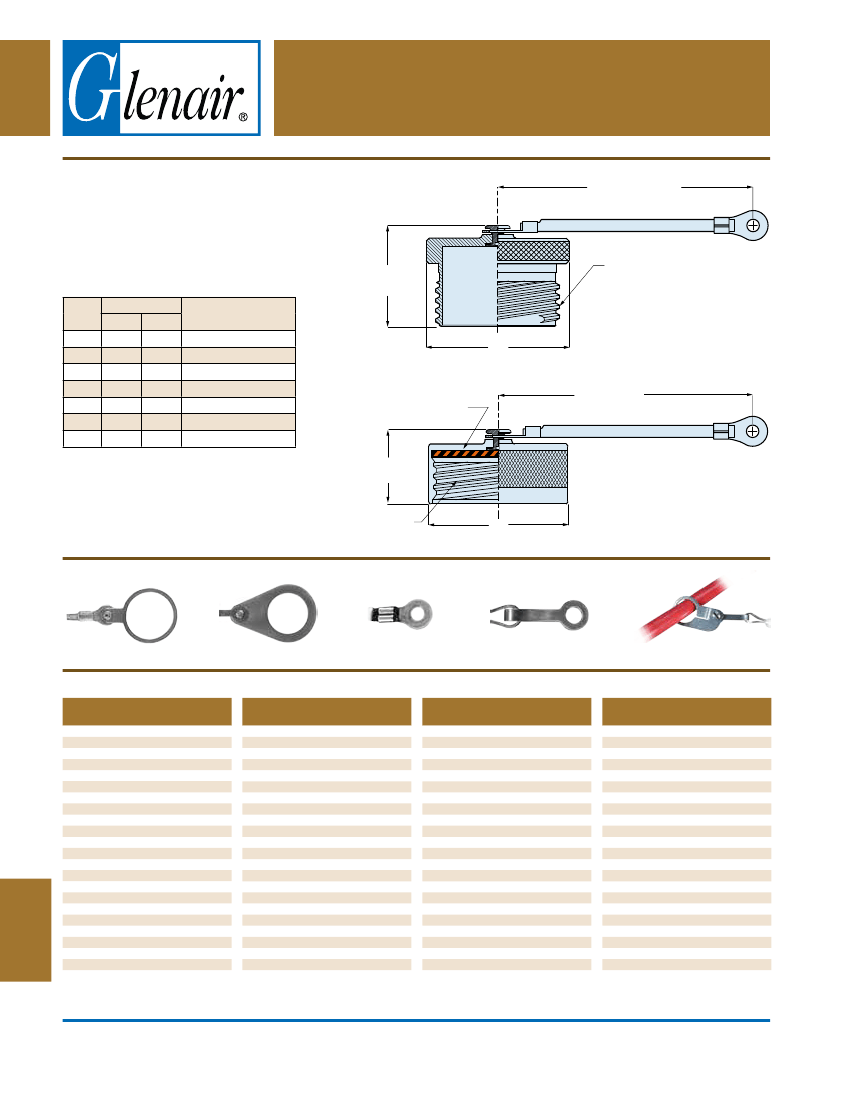

660PS097 AND -098 PROTECTIVE COVERS
LENGTH
± .25 (6.35)
SASH CHAIN IS
± ONE LENGTH
H
Accessories
Shell
Size
18
20
24
28
32
36
40
A Max.
In.
1.417
1.535
1.772
2.007
2.244
2.480
2.716
mm.
36.0
39.0
45.0
51.0
57.0
63.0
69.0
B Thread
1.14 (29.0)
MAX
B THREAD (2A)
1.125-.1P-.3L-TS
1.250-.1P-.3L-TS
1.500-.1P-.3L-TS
1.750-.1P-.3L-TS
2.000-.1P-.3L-TS
2.250-.1P-.3L-TS
2.500-.1P-.3L-TS
.906 (23.0)
MAX
660PS097 Plug Cover
SILICONE
GASKIET
øA
LENGTH
± .25 (6.35)
SASH CHAIN IS
± ONE LENGTH
B THREAD (2B)
øA
660PS098 Receptacle Cover
RING STYLES
Style A Solid Ring
Code Ring Type
00
06
01
09
05
02
03
04
07
095
100
50
08
52
101
102
10
54
103
104
12
56
No Fitting
Ring terminal/Clevis
Ring terminal/Clevis
Ring terminal/Clevis
Ring terminal/Clevis
Ring terminal/Clevis
Ring terminal/Clevis
Ring terminal/Clevis
Ring terminal/Clevis
Solid Ring Style A
Solid Ring Style A
Split Ring
Solid Ring Style B
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
Style B Solid Ring
I.D.
In. mm.
Code Ring Type
13
105
205
14
15
58
106
206
16
17
60
107
207
18
62
64
19
108
308
208
20
66
Solid Ring Style B
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Solid Ring Style B
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Solid Ring Style B
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
Split Ring
Solid Ring Style B
Solid Ring Style A
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
Ring Terminal
I.D.
In. mm.
19.43
19.46
20.02
21.44
22.61
22.61
22.76
23.04
24.59
25.78
25.78
25.81
26.04
27.76
27.81
28.70
28.96
28.98
30.18
30.56
30.56
31.75
Clevis (Sash Chain)
I.D.
In. mm.
32.13
32.16
33.32
34.11
34.29
34.93
35.33
36.53
36.91
37.69
37.72
38.63
39.01
40.06
41.28
41.66
41.68
42.85
44.45
44.83
44.86
46.02
Split Ring
I.D.
In. mm.
47.63
48.01
48.03
49.23
49.61
49.99
50.29
52.32
52.76
52.78
54.36
55.55
56.77
58.67
61.11
61.11
62.87
63.75
67.44
67.46
71.37
76.99
77.34
RING REFERENCE TABLE (IN ASCENDING DIAMETER ORDER)
Code Ring Type
21
109
209
22
68
70
110
210
23
24
72
111
211
25
74
27
112
28
76
29
113
213
Solid Ring Style B
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Solid Ring Style B
SPLIT RING
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
Solid Ring Style B
Solid Ring Style A
Solid Ring Style B
Split Ring
Solid Ring Style B
Solid Ring Style A
Solid Ring Style A
Code Ring Type
78
30
114
214
31
32
80
82
33
115
35
36
84
86
116
40
88
117
90
44
92
48
94
Split Ring
Solid Ring Style B
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Solid Ring Style B
Split Ring
Split Ring
Solid Ring Style B
Solid Ring Style A
Solid Ring Style B
Solid Ring Style B
Split Ring
Split Ring
Solid Ring Style A
Solid Ring Style B
Split Ring
Solid Ring Style A
Split Ring
Solid Ring Style B
Split Ring
Solid Ring Style B
Split Ring
-
-
.125 3.18
.145 3.68
.156 3.96
.167 4.24
.182 4.62
.191 4.85
.197 5.00
.218 5.54
.312 7.92
.391 9.93
.425 10.80
.468 11.89
.485 12.32
.516 13.11
.583 14.81
.593 15.06
.640 16.26
.641 16.28
.708 17.98
.718 18.24
.750 19.05
.765
.766
.788
.844
.890
.890
.896
.907
.968
1.015
1.015
1.016
1.025
1.093
1.095
1.130
1.140
1.141
1.188
1.203
1.203
1.250
1.265
1.266
1.312
1.343
1.350
1.375
1.391
1.438
1.453
1.484
1.485
1.521
1.536
1.577
1.625
1.640
1.641
1.687
1.750
1.765
1.766
1.812
1.875
1.890
1.891
1.938
1.953
1.968
1.980
2.060
2.077
2.078
2.140
2.187
2.235
2.310
2.406
2.406
2.475
2.510
2.655
2.656
2.810
3.031
3.045
© 2013 Glenair, Inc.
Series 970 PowerTrip™
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
80
E-Mail: sales@glenair.com
