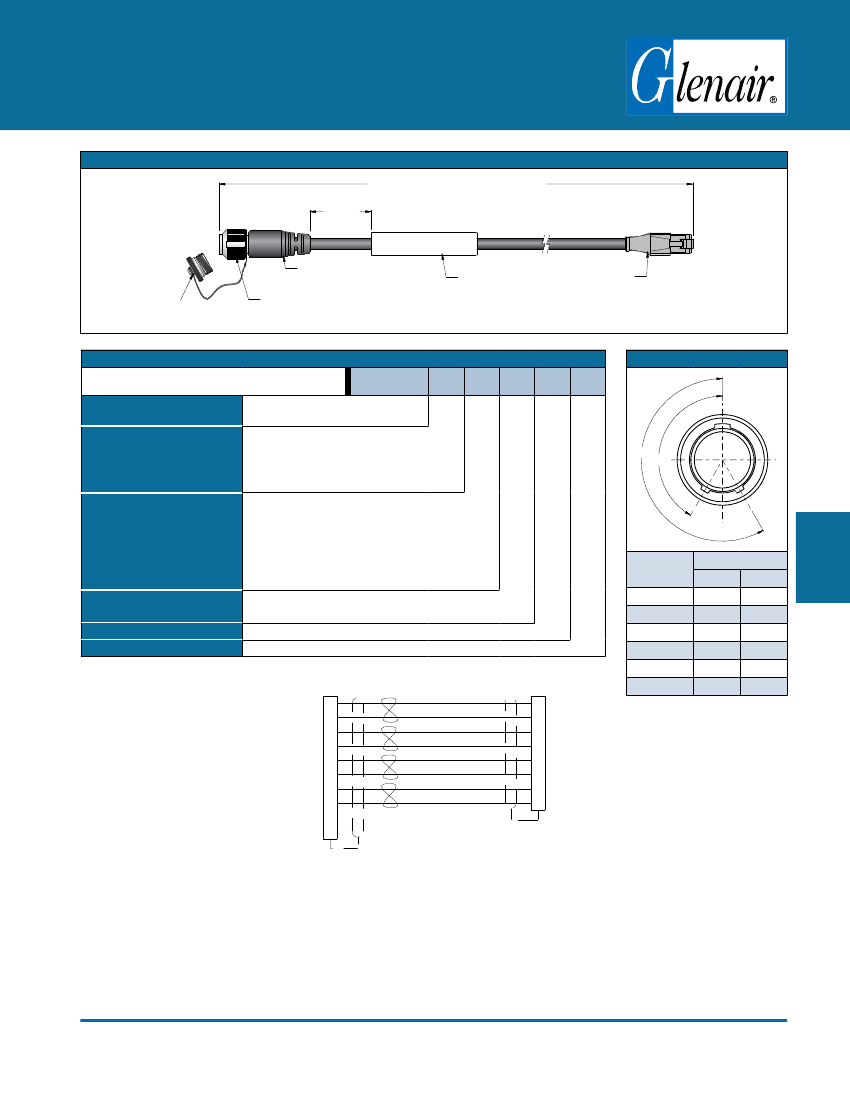

Mighty Mouse
High-Speed
Connector to L-COM 10GBASE-T
Ethernet Connector with Double-Start ACME Threads
801-077 Ordering Information
801-077: Series 801 Mighty Mouse
High-Speed
10Gbase-T Ethernet Overmolded Cordset
"LENGTH" MIN (SEE P/N DEVELOPMENT)
(2.00)
P1
POLYAMIDE
OVERMOLD
PROTECTIVE COVER,
667-217 OR 667-218
"PART NUMBER"
GLENAIR YYWW 06324
P2
BRADY LABEL,
LAT-18 OR EQ.
L-COM CAT6A
CABLE ASSY,
TRD695ABLK
GLENAIR HIGH-SPEED CONNECTOR,
801-036-16 PLUG OR 801-037-01 RECEPTACLE
7-10 INSERT ARRANGEMENT (GROMMET REMOVED)
How To Order
Sample Part Number
Series
Table I: Shell Key Positions
-A
NF
N
A
-48
801-077
801-077
= Series 801 Mighty Mouse
to L-COM Cat 6a cordset
-A
= Plug with Pin Contacts
-B
= Plug with Socket Contacts
P1 Connector
B°
-C
= Receptacle with Pin Contacts
-D
= Receptacle with Socket Contacts
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab
Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE, RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
P
= Metal Protective Covers Included
N
= No Covers Supplied
A
(Normal),
B, C, D, E, F
Overall Length In Inches
WIRING DIAGRAM
P1
8
4
7
3
1
5
10
6
2
9
WHT/ORN 26 AWG
ORN
GRN
BLU
WHT/BLU
WHT/BRN
BRN
26 AWG
26 AWG
26 AWG
26 AWG
26 AWG
26 AWG
WHT/GRN 26 AWG
P2
1
2
3
6
4
5
7
8
A°
Shell Material / Finish
Key Position
Normal (A)
B
C
D
E
F
Key Rotation
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
Protective Cover
Shell Key Position (See Table I)
Length
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
P-17
E-Mail: sales@glenair.com
Series 801
High-Speed
Series 801 10GBase-T Ethernet Cat 6a Cordsets
