Mighty Mouse
High-Speed
Back-to-Back
eSATA Cordset with Triple-Start ACME Threads
805-114 Ordering Information
805-114: Series 805 Mighty Mouse
High-Speed

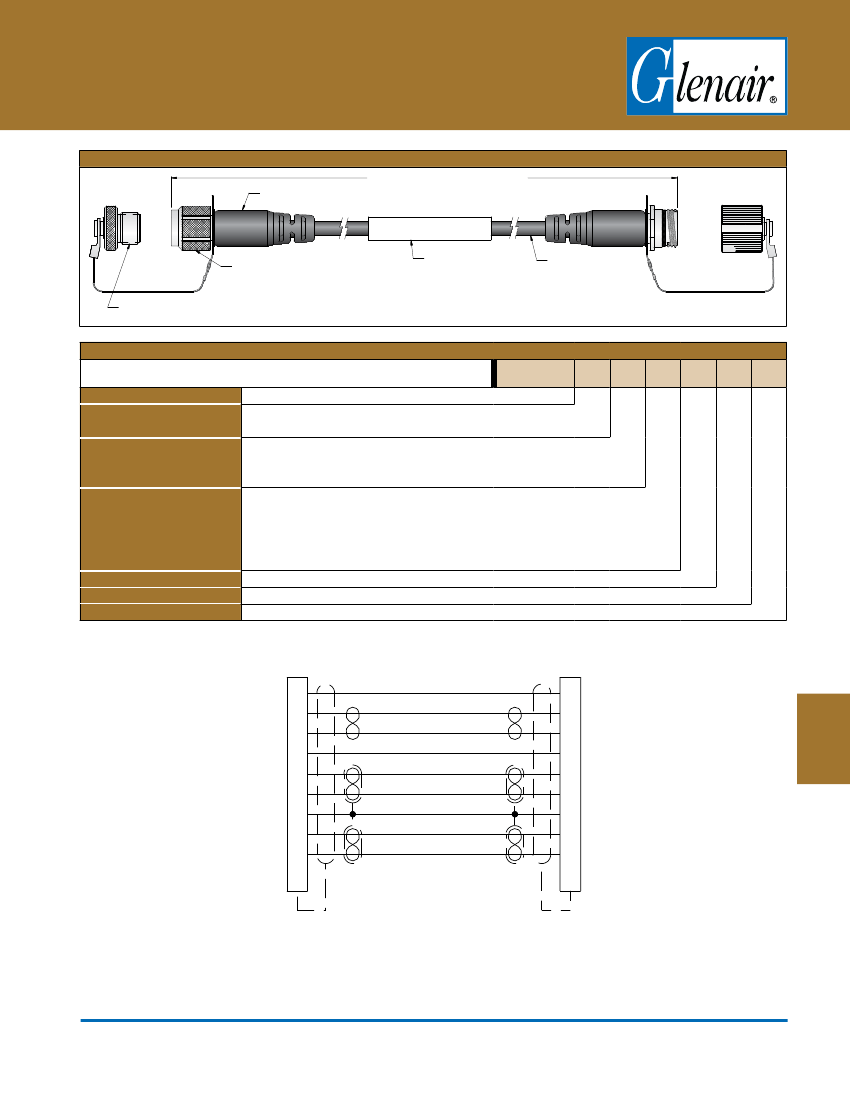

USB 3.0 Overmolded Cordset
"LENGTH" MIN (SEE P/N DEVELOPMENT)
POLYAMIDE OVERMOLD
P1
GLENAIR HIGH-SPEED CONNECTOR,
805-020-16 PLUG (REF) OR
805-022-01 RECEPTACLE (REF)
9-10 INSERT ARRANGEMENT
(GROMMETS REMOVED)
"PART NUMBER"
GLENAIR YYWW 06324
BRADY LABEL,
LAT-18 OR EQ.
APPROX LOCATION:
CENTER OF CABLE
GLENAIR BULK
USB 3.0 CABLE,
963-012
P2
PROTECTIVE COVER,
667-261 OR 667-262
How To Order
Sample Part Number
Series
P1 Connector
805-114
805-114
= Back-to-Back High-Speed USB 3.0 Overmolded cordset
-A
= Plug, Pin Contacts
-B
= Plug, Socket Contacts
-C
= Receptacle Pin Contacts
A
= Plug, Pin Contacts
C
= Receptacle, Pin Contacts
-A
D
NF
N
A
-48
P2 Connector
-D
= Receptacle, Socket Contacts
B
= Plug, Socket Contacts
D
= Receptacle, Socket Contacts
N
= No Connector (Single-Ended)
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
Shell Material / Finish
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE, RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
P
= Metal Protective Covers Included
A
(Normal),
B, C, D
Overall Length In Inches 118" Max
N
= No Covers Supplied
Protective Cover
Shell Key Pos. (See Page N3)
Length
P1
1
5
8
4
9
10
6
7
3
2
WIRING DIAGRAM
RED 24 AWG
WHT 26 AWG
GRN 26 AWG
BLK 24 AWG
BLU 26 AWG
YEL 26 AWG
DRAIN WIRES
VIO 26 AWG
ORN 26 AWG
P2
1
5
8
4
7
3
6
9
10
2
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
R-13
