50 Ohm 1 Watts Precision Brass SMA Male RF Load Up To 8 GHz
TECHNICAL DATA SHEET
50 Ohm 1 Watts Precision Brass SMA Male RF Load Up To 8 GHz
Configuration
RF Load Design
Connector
Heat Sink
Connection Method
Body Style
Precision
SMA Male
Brass, Gold
Standard
Straight
PE6151
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Input Power, Watts
DC to 8
50
1.15:1
1
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.815 [20.7]
0.312 [7.92]
Connector
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
SMA Male
Gold
Brass, Gold
5/16
5 [0.57]
Brass, Gold
PTFE
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 1 Watts Precision Brass SMA Male RF Load Up To 8 GHz PE6151
PE6151 REV
1
50 Ohm 1 Watts Precision Brass SMA Male RF Load Up To 8 GHz
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE6151
50 Ohm 1 Watts Precision Brass SMA Male RF Load Up To 8 GHz from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 1 Watts Precision Brass SMA Male RF Load Up To 8 GHz PE6151
URL:
http://www.pasternack.com/1-watts-sma-male-rf-load-up-to-8-ghz-precision-pe6151-p.aspx
PE6151 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE6151

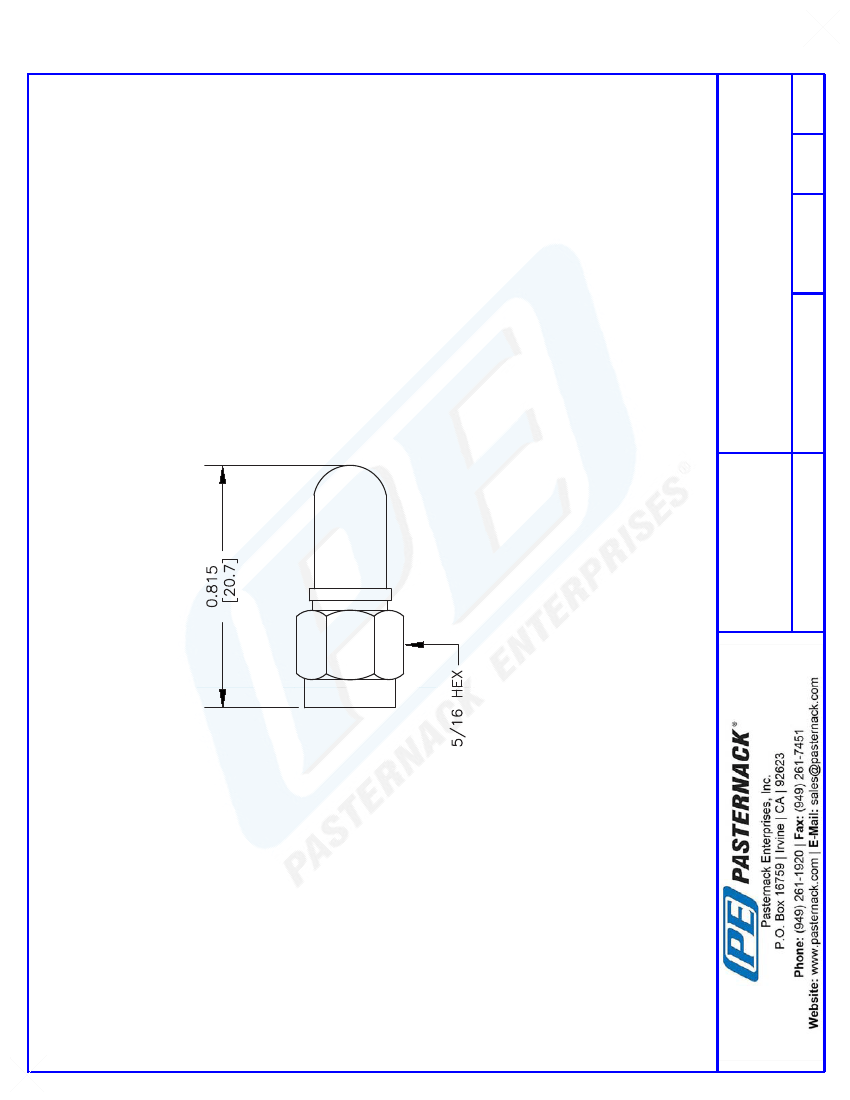

CAD Drawing
50 Ohm 1 Watts Precision Brass SMA Male RF Load Up To 8 GHz
PE6151 REV
PE6151
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE
070810-A
SCALE N/A
SIZE A
XXXX
3
