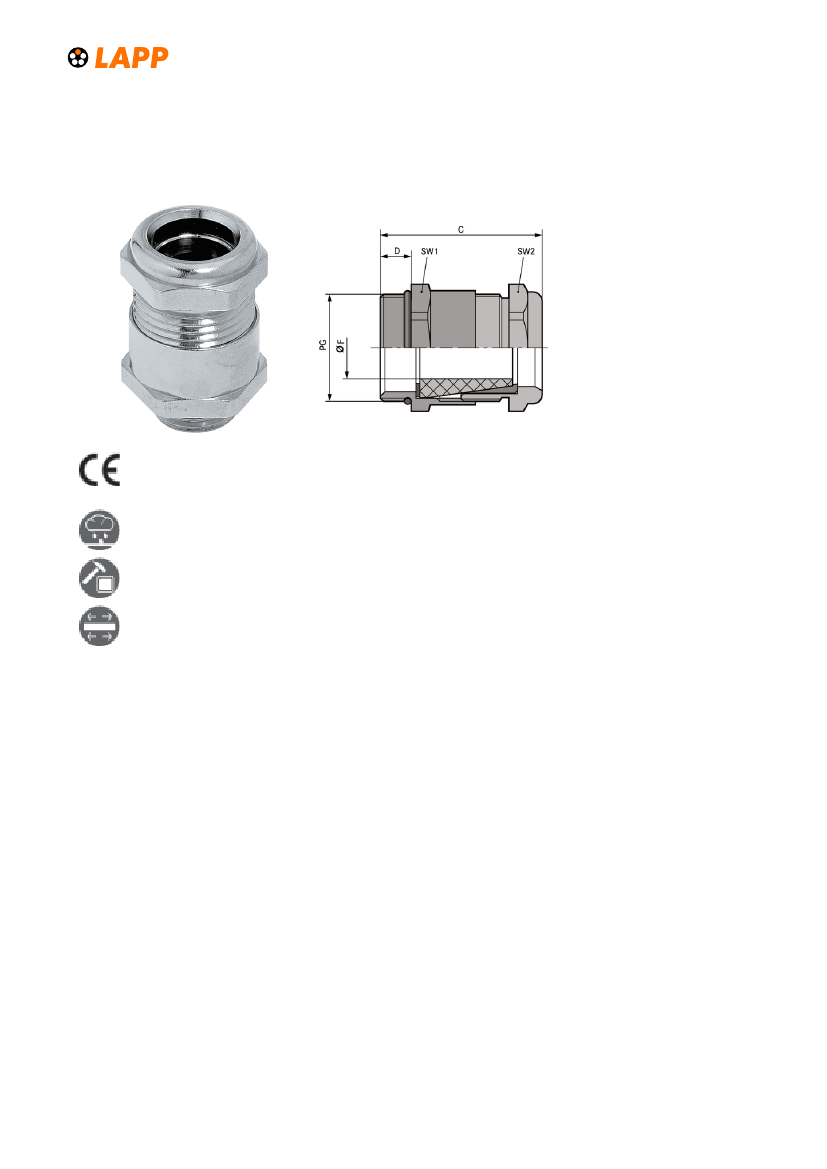

PRODUCT INFORMATION
SKINDICHT® SHV
SKINDICHT® SHV, watertight PG special sealing brass cable gland with high strain relief and gentle cable clamping
Waterproof
Robust
Optimum strain relief
Benefits
Watertight
Gentle cable clamping
Robust
High strain relief
Application range
Watertight cable gland with conical sealing element.
Pumps
Floater switches
Product Make-up
PG connection thread
Note
Counter nut to be used: SKINDICHT® SM
Suitable accessory: SKINDICHT® SHV sealing cones
Example order designation:
SHV 13.5/9/9
13.5 = PG thread of compression screw
9 = PG connection thread
9 = clear opening of sealing cone
Last Update (25.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
SKINDICHT® SHV
Technical Data
Classification ETIM 5:
Classification ETIM 6:
Caution:
Material:
ETIM 5.0 Class-ID: EC000441
ETIM 5.0 Class-Description: Cable screw gland
ETIM 6.0 Class-ID: EC000441
ETIM 6.0 Class-Description: Cable screw gland
The installation dimensions
can be found in appendix T21
Body: nickel-plated brass
Sealing cone: CR
O-ring: NBR
IP 68 - 10 bar
-20°C to +80°C
Protection rating:
Temperature range:
Note
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (25.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
Powered by TCPDF (www.tcpdf.org)
SKINDICHT® SHV
Article number
SKINDICHT® SHV
52002530
52002550
52002540
52002570
52002560
52010650
52010660
52010670
52010680
52002600
52002590
52010690
52010700
52010710
52010720
52010730
52010740
52002640
52002630
52002620
52010750
52010760
52010770
52002670
52002660
52002650
52002710
52002700
52002690
Article designation / size Clamping range ØF mm SW 1/2 mm
SHV 7/7/5
SHV 9/9/6
SHV 9/9/7
SHV 11/11/7
SHV 11/11/9
SHV 13,5/9/9
SHV 13,5/9/11
SHV 13,5/11/9
SHV 13,5/11/11
SHV 13,5/13,5/9
SHV 13,5/13,5/11
SHV 16/11/11
SHV 16/11/13
SHV 16/11/15
SHV 16/13,5/11
SHV 16/13,5/13
SHV 16/13,5/15
SHV 16/16/11
SHV 16/16/13
SHV 16/16/15
SHV 21/16/16
SHV 21/16/18
SHV 21/16/20
SHV 21/21/16
SHV 21/21/18
SHV 21/21/20
SHV 29/29/22
SHV 29/29/24
SHV 29/29/26
3.8 - 4.8
4.8 - 5.8
5.8 - 6.8
5.8 - 6.8
6.8 - 8.8
6.5 - 8.8
8.5 - 10.8
6.8 - 8.8
8.5 - 10.8
6.8 - 8.8
8.5 - 10.8
8.5 - 10.8
10.8 - 12.8
13.8 - 14.8
8.5 - 10.8
10.8 - 12.8
13.8 - 14.8
8.5 - 10.8
10.8 - 12.8
13.8 - 14.8
13.3 - 15.6
15.8 - 17.8
17.5 - 19.8
14.8 - 15.8
15.8 - 17.8
17.5 - 19.8
19.5 - 21.8
21.8 - 23.8
23.8 - 25.8
14
17
17
20
20
22
22
22
22
22
22
24
24
24
24
24
24
24
24
24
30
30
30
30
30
30
40
40
40
Overall length C mm
26.0
28.5
28.5
31.0
31.0
33.0
33.0
33.0
33.0
33.0
33.0
35.0
35.0
35.0
35.0
35.0
35.0
35.0
35.0
35.0
40.0
38.0
38.0
38.0
38.0
38.0
44.5
44.5
44.5
Thread length D mm
5
6
6
6
6
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
7
7
7
7
7
7
8
8
8
Pieces / PU
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
Last Update (25.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
25
25
25
25
25
10
10
10
