SKINDICHT® SHV FKM

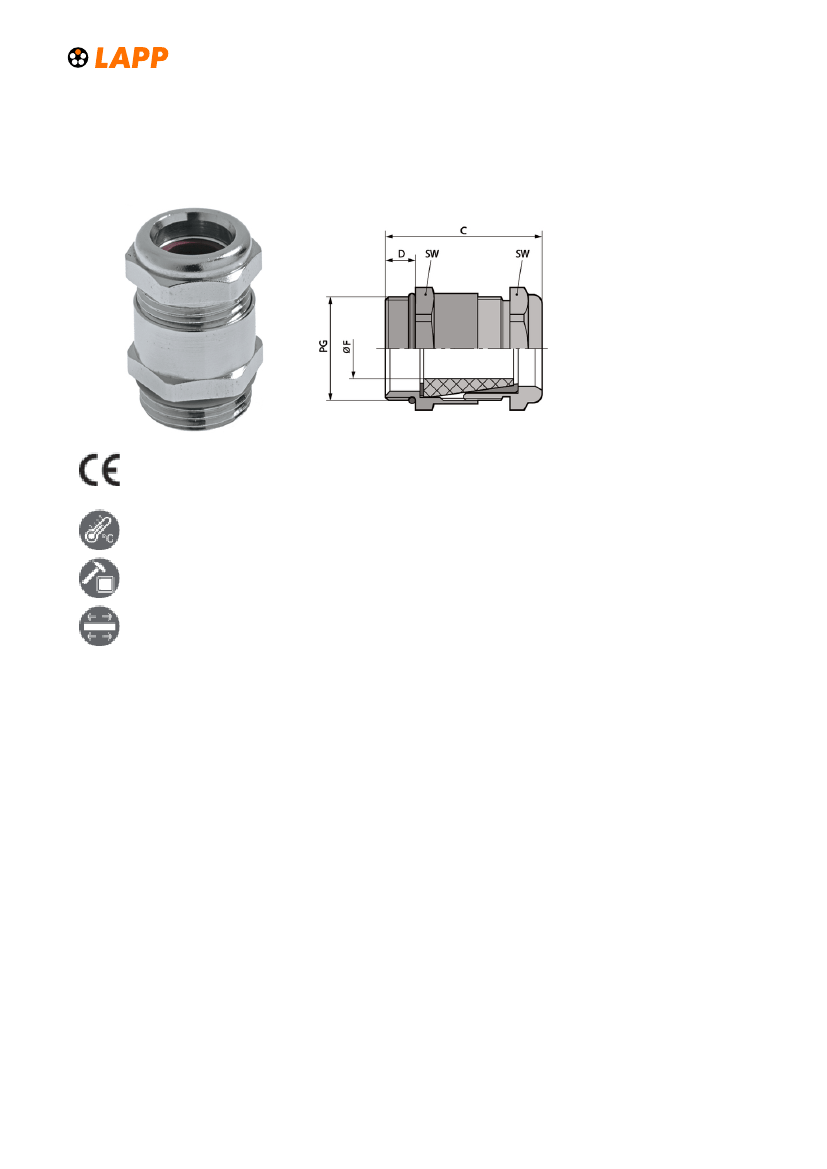

SKINDICHT® SHV FKM, watertight PG special sealing cable gland for high temperatures, resistant to oils, acids and chemicals
Temperature-resistant
Robust
Optimum strain relief
Benefits
For high temperatures
Resistant to oils, solvents, acids and chemicals
Watertight
High strain relief
Robust
Application range
Watertight and high temperature-resistant cable gland with special conical FKM sealing element
Brickworks
Sewage treatment plants
Car wash sites
Technical Data
Classification ETIM 5:
Classification ETIM 6:
Caution:
Material:
ETIM 5.0 Class-ID: EC000441
ETIM 5.0 Class-Description: Cable screw gland
ETIM 6.0 Class-ID: EC000441
ETIM 6.0 Class-Description: Cable screw gland
The installation dimensions
can be found in appendix T21
Body: nickel-plated brass
Sealing cone: FKM
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
SKINDICHT® SHV FKM
O-ring: FKM
Protection rating:
Temperature range:
IP 68 - 10 bar
-15°C to +200°C
Note
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
Powered by TCPDF (www.tcpdf.org)
SKINDICHT® SHV FKM
Article number
SKINDICHT® SHV FKM
52024934
54000015
52024935
52024936
52024937
52024970
52024968
52024969
52024961
52024962
52024971
52024973
52024964
52024965
52024966
52024967
52024974
Article designation / size Clamping range ØF mm SW wrench size mm
SHV-FKM 7/7/5
SHV-FKM 9/9/6
SHV-FKM 9/9/7
SHV-FKM 11/11/7
SHV-FKM 11/11/9
SHV-FKM 13,5/9/11
SHV-FKM 13,5/11/9
SHV-FKM 13,5/11/11
SHV-FKM 13,5/13,5/9
SHV-FKM 13,5/13,5/11
SHV-FKM 16/11/13
SHV-FKM 16/13,5/13
SHV-FKM 16/16/13
SHV-FKM 16/16/15
SHV-FKM 21/21/18
SHV-FKM 21/21/20
SHV-FKM 29/29/22
3.8 - 4.8
4.8 - 5.8
5.8 - 6.8
5.8 - 6.8
6.8 - 8.8
8.5 - 10.8
6.8 - 8.8
8.5 - 10.8
6.8 - 8.8
8.5 - 10.8
10.8 - 12.8
10.8 - 12.8
10.8 - 12.8
13.8 - 14.8
15.8 - 17.8
17.5 - 19.8
19.5 - 21.8
14
17
17
20
20
22
22
22
22
22
24
24
24
24
30
30
40
Overall length C mm
26.0
28.5
28.5
31.0
31.0
33.0
33.0
33.0
33.0
33.0
35.0
35.0
35.0
35.0
38.0
38.0
44.5
Thread length D mm
5
6
6
6
6
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
7
7
8
Pieces / PU
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
25
10
