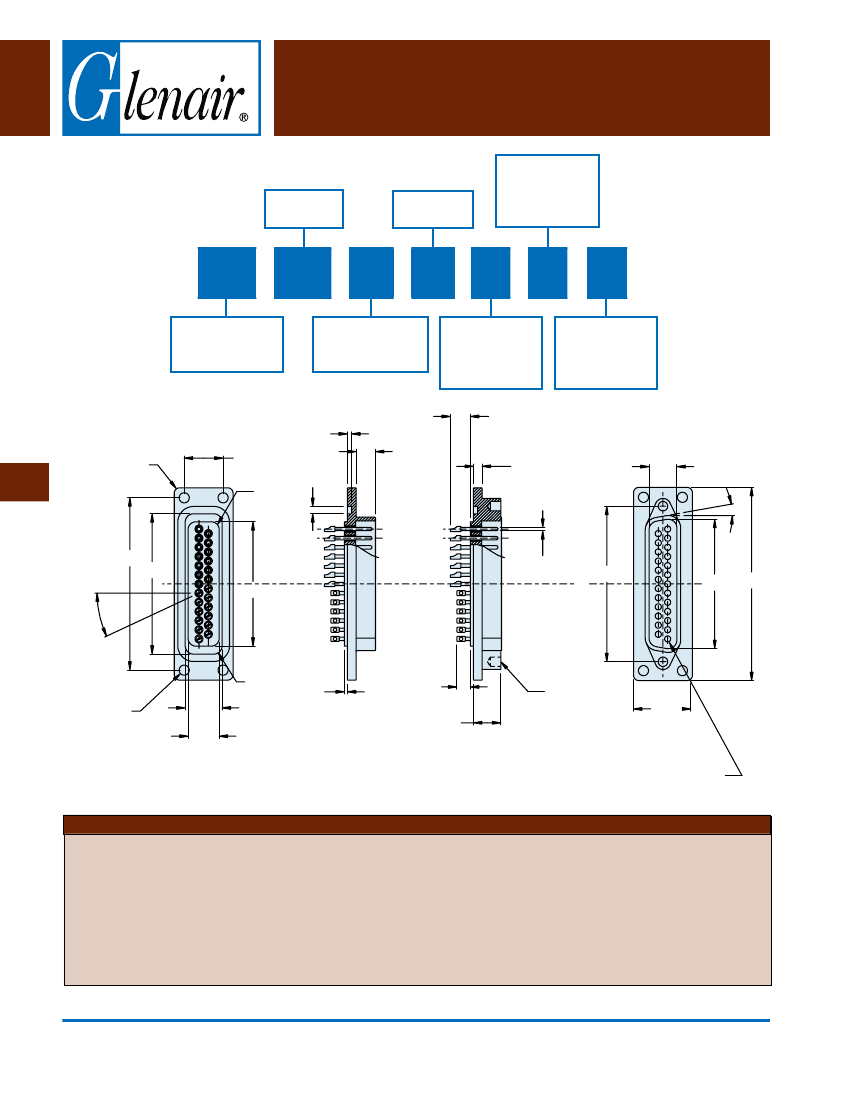

Glass-Sealed D-Subminiature Connector
Front Mount o-Ring Seal
Contact Style
(Pin Only)
P
= Solder Cup
X
= Eyelet
287-018
MIL-DTL-24308/9 Type Hermetic
MIL-DTL-24308
Type
Connector
Style
Shell Size
287
-
018
MIL-DTL-24308/9
D-Subminiature
Hermetic
K
Class
H
= Standard
K
= Space Grade
1
A
Flange Type
A
= Solid
B
= Two #4-40
Lockposts
P
-
1
O-Ring
Material
See Table III
(Omit for Viton
®
)
TERMINATION
VIEW
.050
. 090
. 086
.238 Max
K
H
J
R.062
Typ
L
R.093
Typ
ENGAGEMENT
VIEW
D
10°
Typ
25° Typ
Eyelets
M
N
Ø.040±.001
F
C
B
A
Ø.120
Typ 4 Pl
P
G
R.100
4 Pl
.046
.032
FLANGE
TYPE
A
.161 Max
.335
.316
#4-40 UNC-2B
X .125 Min
Full Thread
FLANGE
TYPE
B
.682
Insert Arrangements Shown
Are For Reference Only
APPLICATION NOTES
1.
2.
3.
To be identified with manufacturer’s name, part number and
date code, space permitting.
Contact Style: Eyelet or solder cup (see part development).
Material/Finish:
Shell: H = FT - Carbon steel/tin plated.
K = Z16 - Stainless steel/nickel plated dull finish.
Insulators: Glass bead/N.A.
Contacts: Pins, alloy 52/gold plated.
Metric dimensions (mm) are indicated in parentheses.
6.
7.
5.
Performance:
DWV - 750 VAC Pin-to-Shell
I.R. - 5,000 Megohms Min @ 500 VDC
Hermeticity - <1 x 10
-7
scc He/sec @ 1
atmosphere differential.
All dimensions are typical for flange types “A” and “B”. “C” dim is
not applicable to flange type “A”.
Glenair 287-018 will mate with any QPL MIL-DTL-24308/1, /2
and /23 receptacle of the same size and arrangement.
4.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
J-20
E-Mail: sales@glenair.com

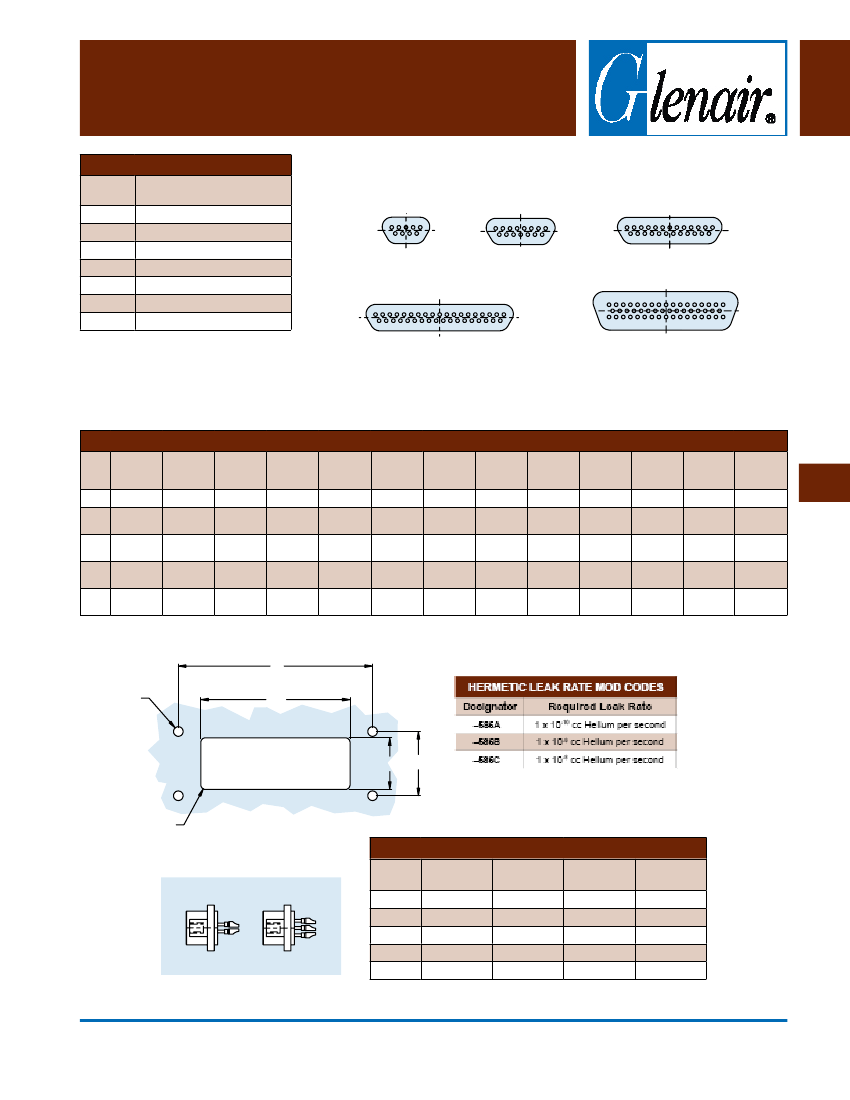

Glass-Sealed D-Subminiature Connector
Front Mount O-Ring Seal
TABLE III: O-RING MATERIAL
Dash
Number
None
-1
-2
-3
CE*
CF*
CS*
Viton
®
Nitrile
Fluorosilicone
Silicone
Conductive Epdm
Conductive Fluorsilicone
Conductive Silicone
Material
1
1 2 3 4 5
6 7 8 9
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
2
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25
3
9 CONTACTS
15 CONTACTS
25 CONTACTS
4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
5
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18
33
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
*Customer to specify Chomerics
®
compound of choice.
Example:
CF1217 = Silver-Plated copper in
fluorosilicone
37 CONTACTS
50 CONTACTS
TABLE I: CONNECTOR DIMENSIONS
Shell
Size
1
2
3
4
5
Dim A
± .015
(± 0.4)
1.413 (35.9)
1.741 (44.2)
Dim B
± .004
(± 0.1)
.667 (16.9)
.993 (25.2)
Dim C
± .005
(± 0.1)
.984 (25.0)
1.312 (33.3)
Dim D
± .004
(± 0.1)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.441 (11.2)
Dim E
± .010
(± 0.3)
.698 (17.7)
.698 (17.7)
.698 (17.7)
.698 (17.7)
.810 (20.6)
Dim F
± .010
(± 0.3)
.725 (18.4)
.932 (23.7)
1.479 (37.6)
2.125 (54.0)
2.000 (50.8)
Dim G
± .010
(± 0.3)
.369 (9.4)
.369 (9.4)
.369 (9.4)
.369 (9.4)
.500 (12.7)
Dim H
± .006
(± 0.2)
.094 (2.4)
.094 (2.4)
.103 (2.6)
.103 (2.6)
.103 (2.6)
Dim K
± .010
(± 0.3)
.235 (6.0)
.235 (6.0)
.230 (5.8)
.230 (5.8)
.230 (5.8)
Dim L
BSC
.462 (11.7)
.462 (11.7)
.462 (11.7)
.462 (11.7)
.654 (16.6)
M
BSC
1.177 (29.9)
1.499 (38.1)
1.972 (50.1)
2.693 (68.4)
2.599 (66.0)
N
± .005
(± 0.1)
.805 (20.4)
1.002
(25.5)
1.589
(40.4)
2.183
(55.4)
2.250
(57.2)
P
± .005
(± 0.1)
.440 (11.2)
.440 (11.2)
.440 (11.2)
.440 (11.2)
.570 (14.5)
2.288 (58.1) 1.535 (39.0) 1.852 (47.0)
2.929 (74.4) 2.183 (55.4) 2.500 (63.5)
2.835 (72.0) 2.079 (52.8) 2.406 (61.1)
RECOMMENDED PANEL CUTOUT
SEE TABLE 2
M
Ø.130
Typ 4 Pl
XA
Index
YA
L
R.062 Max
Typ
FRONT MOUNT
TABLE II: PANEL CUT-OUT
Shell
Size
1
2
3
Dim
XA
.745 (18.9)
.950 (24.1)
1.495 (38.0)
2.145 (54.5)
2.015 (51.2)
Dim
YA
.385 (9.8)
.385 (9.8)
.385 (9.8)
.385 (9.8)
.520 (13.2)
Dim
L
.462 (11.7)
.462 (11.7)
.462 (11.7)
.462 (11.7)
.654 (16.6)
Dim
M
1.177 (29.9)
1.499 (38.1)
1.972 (50.1)
2.693 (68.4)
2.599 (66.0)
Printed in U.S.A.
SOLDER CUP ORIENTATION
SIZES 1-4
© 2013 Glenair, Inc.
SIZE 5
4
5
Dimensions in Inches (millimeters) are subject to change without notice.
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
J-21
E-Mail: sales@glenair.com
MIL-DTL-24308
MIL-DTL-24308
Type
287-018
MIL-DTL-24308/9 Type Hermetic
A
B
C
D
E
F
G
H
J
K
L
M
N
