287-035
MIL-DTL-24308/9 Type Hermetic High Density
Glass-Sealed D-Subminiature Connector
MIL-DTL-24308
Type
Basic
Number
Shell Size
Shell Type
A
= Straight Flange
B
= Integral Jackpost

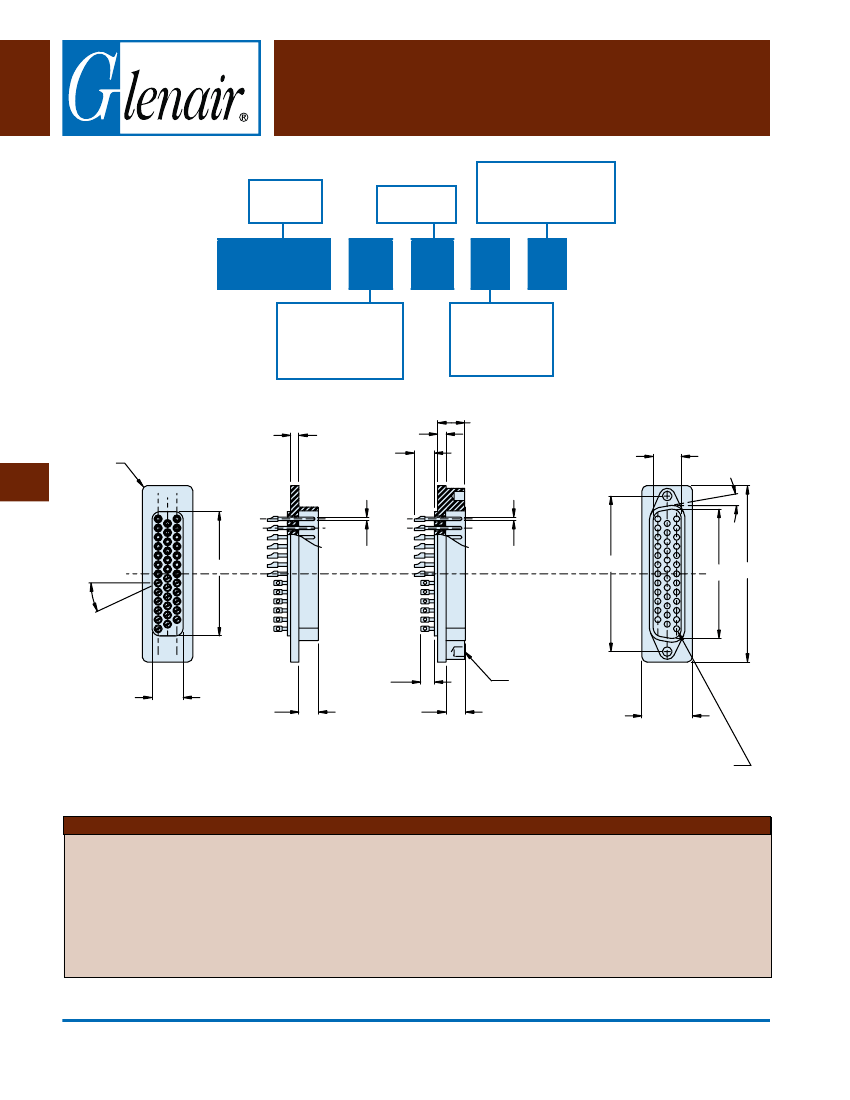

287-035
FT
1
P
A
Class
FT
= Fused Tin
Z1
= Passivated
ZL
= Nickel Plated
Contact Style
(Pin Only)
P
= Solder Cup
X
= Eyelet
H
J
R.062
TYP
.238
MAX
H
.335
.316
ENGAGEMENT
VIEW
D
10°
TYP
F
25° TYP
EYELETS
ø.030 ±.0005
ø.030 ±.0005
C
B
A
G
TERMINATION
VIEW
.161
MAX
K
SHELL
STYLE "A"
K
SHELL
STYLE "B"
#4-40 UNC-2B
x .125 MIN
FULL THREAD
E
INSERT ARRANGEMENT SHOWN
ARE FOR REFERENCE ONLY
APPLICATION NOTES
1.
2.
3.
To be identified with manufacturer’s name, part number and
date code, space permitting.
Contact Style: Eyelet or solder cup (see part development).
Material/Finish:
Shell: FT = Carbon Steel / Fused Tin
Z1 = CRES / Passivated
ZL = CRES / Nickel Plated
Insulators: Glass bead/N.A.
Contacts: Nickel-Iron Alloy / Gold Plated
4.
5.
Metric dimensions (mm) are indicated in parentheses.
Performance:
DWV - 500 VAC Pin-to-Shell
I.R. - 5,000 Megohms Min @ 500 VDC
Hermeticity - <1 x 10
-5
scc He/sec @ 1
atmosphere differential.
Glenair 287-035 will mate with any QPL MIL-DTL-24308/2, /6
and /23 receptacle of the same size and arrangement.
6.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
J-22
E-Mail: sales@glenair.com
287-035
MIL-DTL-24308/9 Type Hermetic High Density
Glass-Sealed D-Subminiature Connector

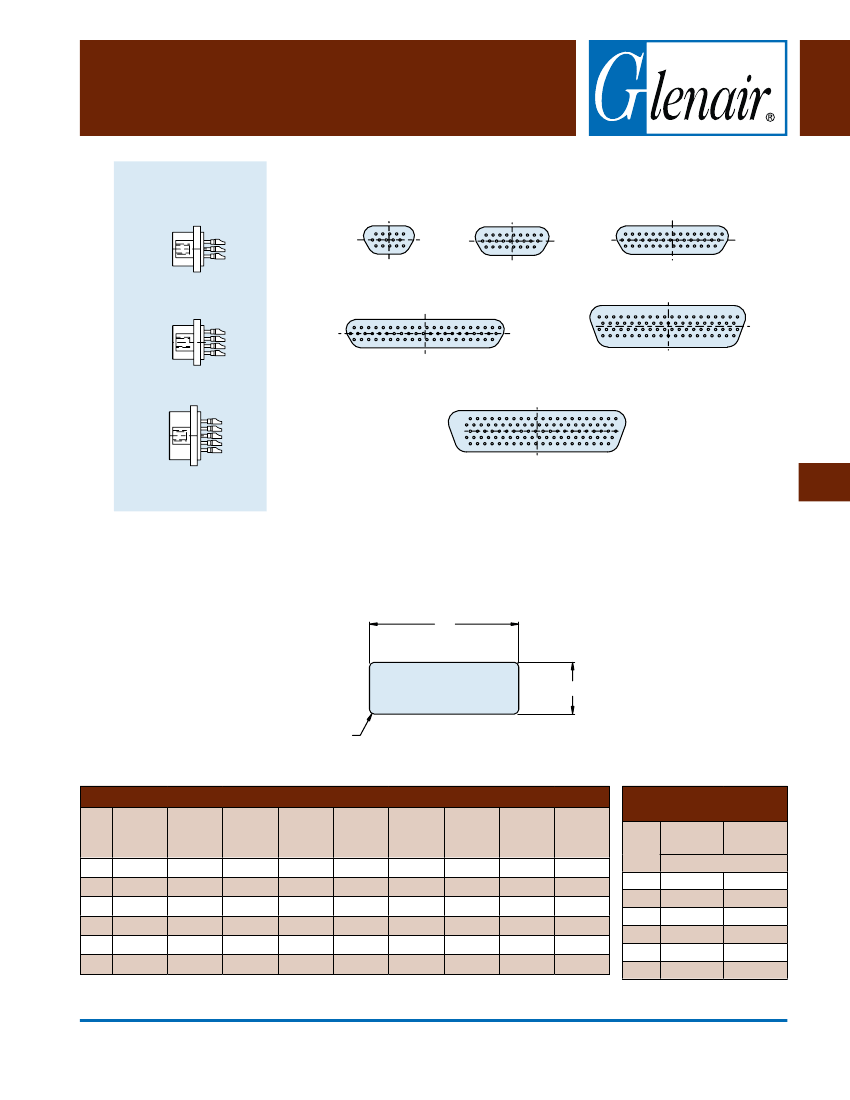

CONTACT ARRANGEMENT
SOLDER CUP
ORIENTATION
1
6
11
1
5
10
15
1
10
19
2
26
9
18
1
16
31
3
15
30
44
SIZES 1-4
15 CONTACTS
26 CONTACTS
21
42
44 CONTACTS
4
SIZE 5
1
22
43
62
5
1
21
40
60
20
39
59
78
62 CONTACTS
78 CONTACTS
21
42
63
84
6
SIZE 6
1
22
43
64
85
104
104 CONTACTS
RECOMMENDED PANEL CUTOUT
SEE TABLE II
XA
YA
R.062 MAX
TYP
REAR MOUNT
TABLE I: CONNECTOR DIMENSIONS
Shell
Size
1
2
3
4
5
6
Dim
A
± .015 (±
0.4)
1.213 (30.8)
1.541 (39.1)
2.088 (53.0)
2.729 (69.3)
2.635 (66.9)
2.729 (69.3)
Dim
B
± .005 (±
0.1)
.667 (16.9)
.993 (25.2)
1.535 (39.0)
2.183 (55.4)
2.079 (52.8)
2.212 (56.2)
Dim
C
± .005 (±
0.1)
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
2.500 (63.5)
Dim
D
± .004 (±
0.1)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.441 (11.2)
.503 (12.8)
Dim
E
± .010 (±
0.3)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.610 (15.5)
.668 (17.0)
Dim
F
± .010 (±
0.3)
.759 (19.3)
1.083 (27.5)
1.625 (41.3)
2.272 (57.7)
2.178 (55.3)
2.302 (58.5)
Dim
G
± .005 (±
0.1)
.422 (10.7)
.422 (10.7)
.422 (10.7)
.422 (10.7)
.534 (13.6)
.596 (15.1)
Dim
H
± .010 (±
0.3)
.094 (2.4)
.094 (2.4)
.103 (2.6)
.103 (2.6)
.103 (2.6)
.103 (2.6)
Dim
K
± .010 (±
0.3)
.235 (6.0)
.235 (6.0)
.230 (5.8)
.230 (5.8)
.230 (5.8)
.230 (5.8)
TABLE II: PANEL
CUT-OUT
Shell
Size
1
2
3
4
5
6
Dim.
XA
.775 (19.7)
1.099 (27.9)
1.642 (41.7)
2.288 (58.1)
2.194 (55.7)
2.318 (58.9)
Dim.
YA
.438 (11.1)
.438 (11.1)
.438 (11.1)
.438 (11.1)
.550 (14.0)
.612 (15.5)
± .005 (.13)
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
J-23
E-Mail: sales@glenair.com
