series 28
HiPer-D Accessories
Protective Covers for HiPer-D connectors
289-003, 289-004, 289-019

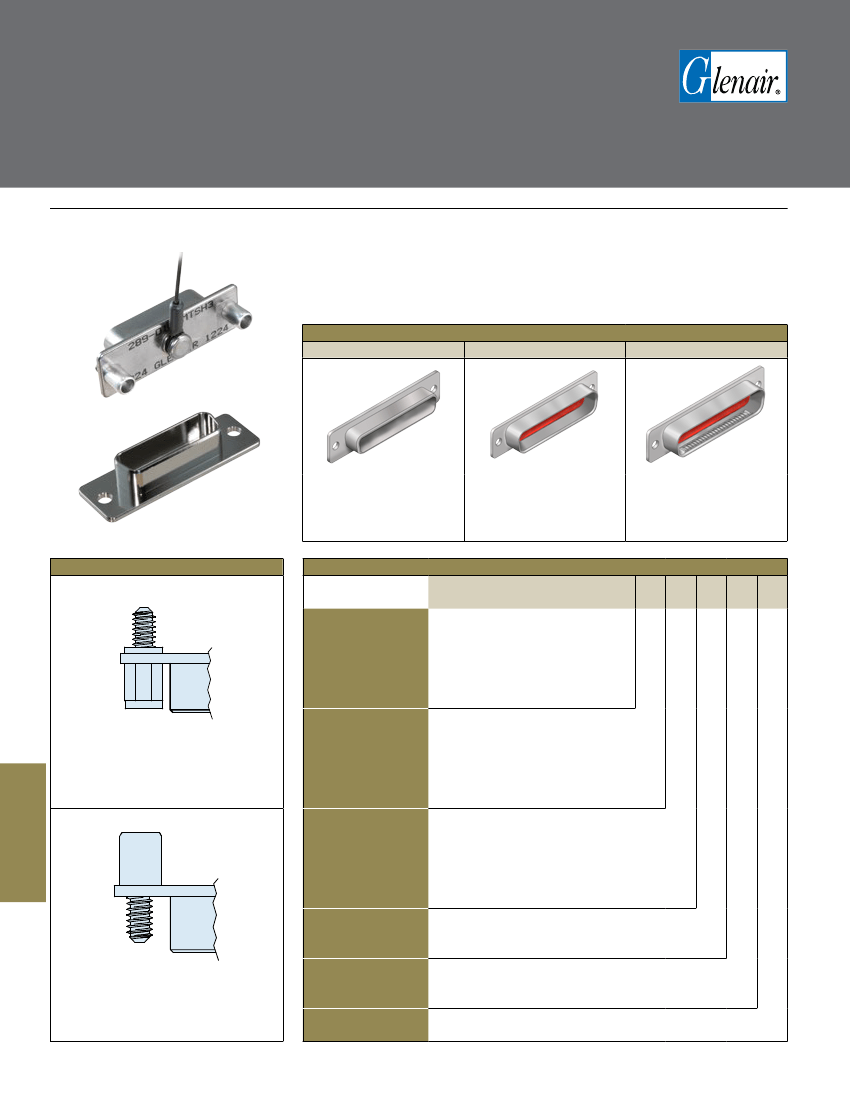

HIPEr-D ProTECTIvE CovErS
Aluminum or stainless steel protective covers fit Glenair Series 28 HiPer-D connectors
and MIL-DTL-24308 connectors. Cover for pin connector fits inside connector shell
and seats on connector face seal for watertight protection. Cover for socket connector
fits over connector shell and has rubber gasket. Attach to panel with optional stainless
steel lanyard and ring terminal.
Pin Cover
Protective Cover Types
Socket Cover
Socket Cover w/ EMI Spring
Cover for use with HiPer-D
pin connectors. Part number
289-003.
Fig. 1
Cover for use with HiPer-D socket
connectors. Supplied without
EMI spring. Fluorosilicone rubber
gasket. Part number 289-019.
Fig. 2
Cover for use with HiPer-D socket
connectors. Supplied with EMI
spring. Fluorosilicone rubber
gasket. Part number 289-004.
Fig. 3
Hardware options
Sample Part Number
ordering Information
289-003
289-003
= Pin Connector Cover (Fig.
1)
289-019
= Socket Connector Cover
(Fig.
2)
289-004
= Socket Connector Cover w/
EMI Spring (Fig.
3)
1
= Shell Size 1
2
= Shell Size 2
3
= Shell Size 3
4
= Shell Size 4
5
= Shell Size 5
6
= Shell Size 6
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
JF
= Cadmium with Yellow Chromate
Z2
= Gold (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
N
= No Hardware
P
= #4-40 Stainless Steel Jackposts (Fig.
4)
S
= Captive SST Hex Head Male Screwlocks (Fig.
5)
N
= No Attachment
F
= Nylon-Coated SST Lanyard w/ Ring Terminal
H
= Teflon®-Coated SST Lanyard w/ Ring Terminal
(Omit for No Attachment)
Length in Inches
2
Z2
P
F
4
Basic Part Number
Female Jackposts (P)
#4-40 Thread
Stainless Steel
Fig. 4
Shell Size
E
Finish
Hardware
Male Screwlocks (S)
#4-40 Thread
Stainless Steel
Fig. 5
Lanyard Type
Lanyard Length
E-2
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
series 28
HiPer-D Accessories
Protective Covers for HiPer-D connectors
289-003, 289-004, 289-019

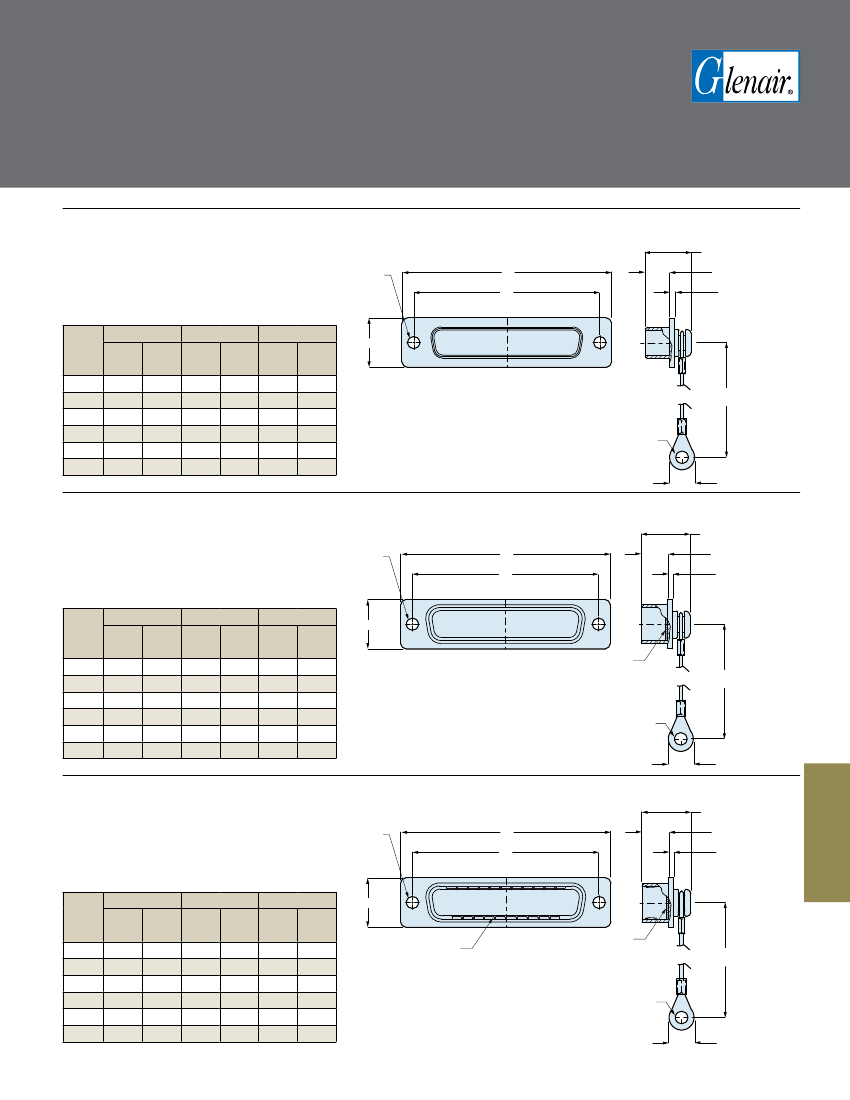

289-003 DIMENSIoNS
.500 (12.7) MAX
Ø .120 (3.05)
TYP 2 PLCS
A
C
.243 (6.17)
.049 (1.24)
Shell
Size
1
2
3
4
5
6
± .015
± 0.38
± .015
± 0.38
1.213
1.541
2.088
2.729
30.81
39.14
53.04
69.32
.494
.494
.494
.494
12.55
12.55
12.55
12.55
In .
A
mm.
In .
B
mm.
C Basic
In.
.984
1.312
1.852
2.500
B
mm.
24.99
33.32
47.04
63.50
LENGTH
2.635 66.93
2.729 69.32
.605 15.37
.668 16.97
2.406 61.11
2.500 63.50
Ø.130±.015
(3.30±0.38)
.33 (8.4) MAX
289-019 DIMENSIoNS
.520 (13.2) MAX
Ø .120 (3.05)
TYP 2 PLCS
A
C
.262 (6.65)
.049 (1.24)
Shell
Size
1
2
3
4
5
6
± .015
± 0.38
± .015
± 0.38
1.213 30.81
1.541 39.14
2.088 53.04
2.729 69.32
2.635 66.93
2.729 69.32
.494 12.55
.494 12.55
.494 12.55
.494 12.55
.605 15.37
.668 16.97
In .
A
mm.
In .
B
mm.
C Basic
In.
mm.
B
FLUOROSILICONE
RUBBER GASKET
.984 24.99
1.312 33.32
1.852 47.04
2.500 63.50
2.406 61.11
2.500 63.50
LENGTH
Ø.130±.015
(3.30±0.38)
.33 (8.4) MAX
289-004 DIMENSIoNS
.520 (13.2) MAX
Ø .120 (3.05)
TYP 2 PLCS
A
C
.262 (6.65)
.049 (1.24)
E
Shell
Size
1
2
3
4
5
6
E-3
± .015
± 0.38
± .015
± 0.38
1.213 30.81
1.541 39.14
2.088 53.04
2.729 69.32
2.635 66.93
2.729 69.32
.494 12.55
.494 12.55
.494 12.55
.494 12.55
.605 15.37
.668 16.97
In .
A
mm.
In .
B
mm.
C Basic
In.
mm.
B
FLUOROSILICONE
RUBBER GASKET
.984 24.99
1.312 33.32
1.852 47.04
2.500 63.50
2.406 61.11
2.500 63.50
OPTIONAL GROUND
SPRING 2 PLCS
LENGTH
Ø.130±.015
(3.30±0.38)
.33 (8.4) MAX
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
