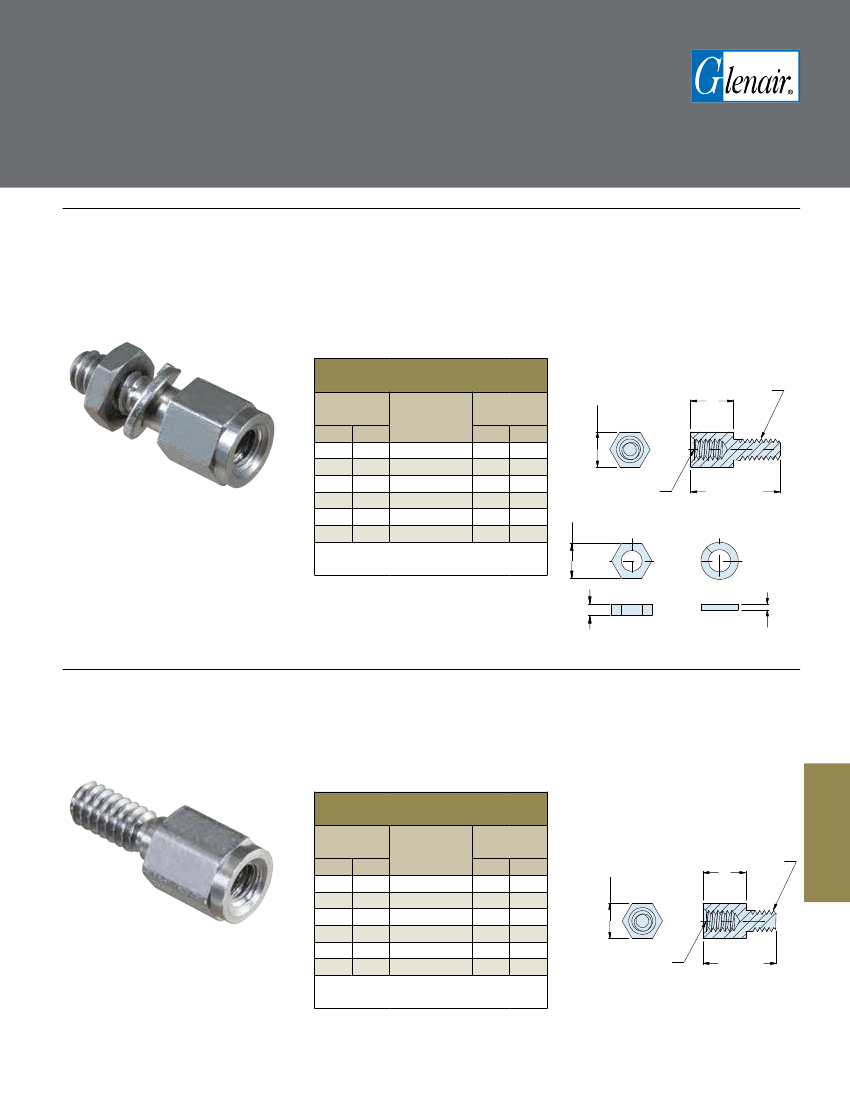

series 28

HiPer-D Accessories

Jackpost Kits

289-015 and 289-016

289-015 Jackpost kit for Hiper-D caBLe connectors

Jackpost kits for panel mounting of HiPer-D cable connectors. 289-015 jackposts fit

HiPer-D cable connectors 280-018P, 280-019S, 280-046P and 280-047S. For front-

mounted and cable-mounted connectors, use 289-015-A. For rear panel mounted

connectors, choose the correct jackpost based on panel thickness. #4-40 UNC 2B

threads. One kit consists of (2) jackposts, (2) hex nuts and (2) split lockwashers. 300

series stainless steel, passivated.

Hiper-D Jackpost kits for cable

connectors

Panel

Thickness

In.

mm.

3X .188 (4.78)

4-40 UNC THREAD

Part Number In.

mm.

(none) (none)

289-015-a

.250

6.35

.031

0.79

289-015-B

.219

5.56

.047

1.19

289-015-c

.203

5.16

.062

1.57

289-015-D

.188

4.78

(1)

.093

2.36

289-015-D

.188

4.78

(1)

.125

3.18

289-015-D

.188

4.78

Note (1) Panels thicker than .062 (1.57) must be

counterbored.

4-40 UNC THREAD

.1875 (4.76)

4-40 HEX NUT

.500±.010

(12.7±0.25)

4-40 LOCK WASHER

.061(1.55)

.031(0.79)

289-016 Jackpost kit for Low profiLe pcB connectors

Stainless steel jackposts for panel mounting of low profile HiPer-D PCB connectors.

For freestanding connectors, use 289-016-A. For rear panel mounted connectors,

choose the correct jackpost based on panel thickness. #4-40 UNC 2B threads. 300

series stainless steel, passivated. One kit consists of (2) jackposts. Install into connector

flange with threadlocking compound (not supplied).

Hiper-D Jackpost kits for pcB

connectors

Panel

Thickness

In.

mm.

3X .188 (4.78)

4-40 UNC THREAD

Part Number In.

mm.

(none) (none)

289-016-a

.250

6.35

.031

0.79

289-016-B

.219

5.56

.047

1.19

289-016-c

.203

5.16

.062

1.57

289-016-D

.188

4.78

(1)

.093

2.36

289-016-D

.188

4.78

(1)

.125

3.18

289-016-D

.188

4.78

Note (1) Panels thicker than .062 (1.57) must be

counterbored.

4-40 UNC THREAD

.400±.003

(10.16±0.08)

E-15
