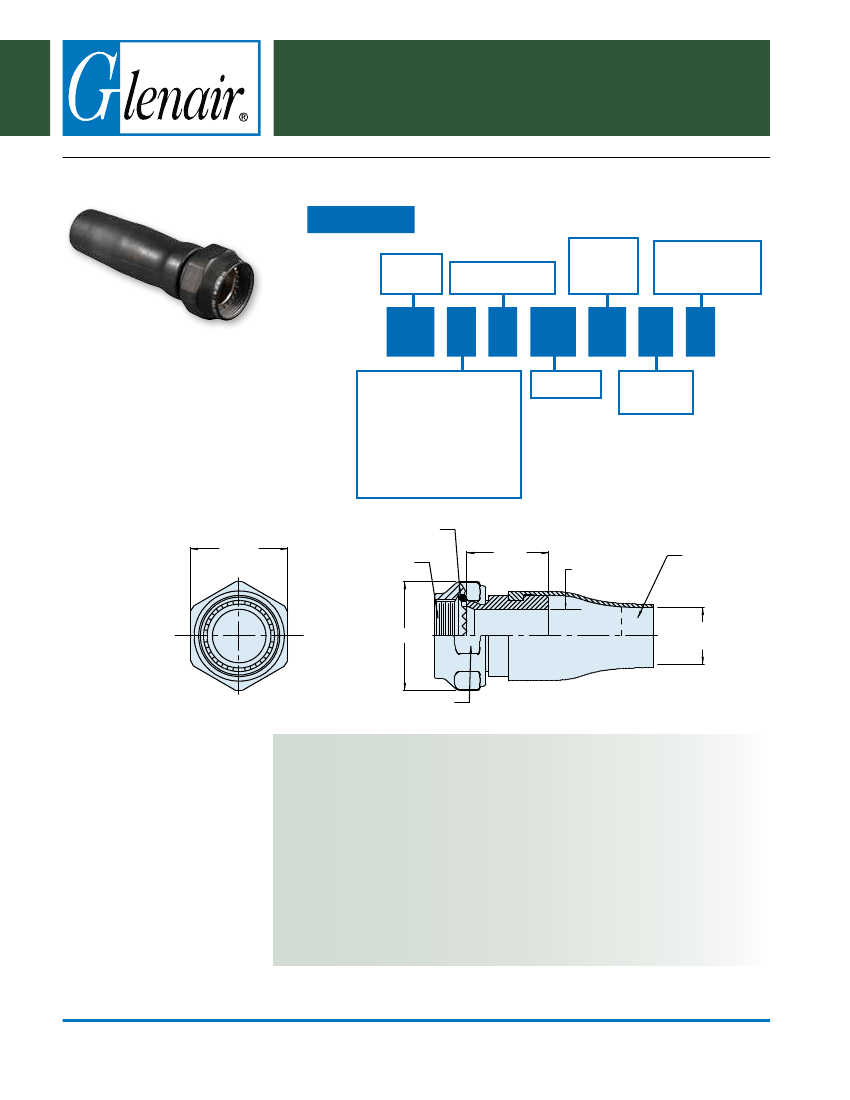

Environmental Piggyback Boot Adapter, Composite
For MIL-DTL-38999 Series I, II, III, and IV and MIL-DTL-5015
Fast and Easy Installation of Environmental Shrink-Boots
How To Order
Product
Series
Angular Function
S =
Straight
Finish
Sym
(Table II)
Boot Material
Type
(Table IV)
310
F
S
048 XB 16
-
2
Basic No.
Shell Size
(Table III)
Connector Designator
A
= MIL-DTL-83723,
Series III; MIL-DTL-5015;
MIL-DTL-26482
F
= MIL-DTL-38999,
Series I & II
H
= MIL-DTL-38999,
Series III & IV
O-Ring
Typ
A Thread
.940
(23.9)
Max
Cable Entry
Hot Melt
Adhesive
B
M
As Supplied
Anti-Rotation Device - Typ
Material and Finish
Adapter: High Temperature Engineering Thermoplastic (natural)/Table II
Coupling Nut, Sleeve, Anti-Decoupling Device: High Temperature Engineering Thermoplastic
(black)/N.A.
O-Ring: Silicone/N.A.
Shrink Boot: Elastomeric/N.A.
Notes
See Table I on page 3 for front-end dimensional details.
Assembly identified with manufacturer’s name and part number, space permitting.
Glenair 600-091 or 600-157 Series Backshell Assembly Tools are recommended for assembly
and installation.
O-Ring supplied with Connector Designator F & H only.
O-Ring not supplied with Connector Designator A.
Dimensions in Inches (millimeters) are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
4
E-Mail: sales@glenair.com
310-048
Environmental Piggyback Boot Adapter, Composite
For MIL-DTL-38999 Series I, II, III, and IV and MIL-DTL-5015
Table III: Key Dimensions
Connector Designator A
Dash
No.
08
10
12
14
16
18
20
22
24
Shell Size
Ref.
08
10
12
14
16
18
20
22
24
A Thread
Class 2B
1/2-20 UNF
5/8-24 UNEF
3/4-20 UNEF
7/8-20 UNEF
1-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
1 5/16-18 UNEF
1 7/16-18 UNEF
Dash
No.
08
10
12
14
16
18
20
22
24
Connector Designator F
Shell Size
Ref.
08
12
12
14
16
18
20
22
24
A Thread
Class 2B
7/16-28 UNEF
9/16-24 UNEF
11/16-24 UNEF
13/16-20 UNEF
15/16-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
1 5/16-18 UNEF
1 7/16-18 UNEF
Dash
No.
09
11
13
15
17
19
21
23
25
Connector Designator H
Shell Size
Ref.
A
B
C
D
E
F
G
H
J
A Thread
ISO Metric
M12 X 1.0-6H
M15 X 1.0-6H
M18 X 1.0-6H
M22 X 1.0-6H
M25 X 1.0-6H
M28 X 1.0-6H
M31 X 1.0-6H
M34 X 1.0-6H
M37 X 1.0-6H
ØB
Ref.
.812 (20.6)
.938 (23.8)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
1.875 (47.6)
Table III: Key Dimensions (CON'T)
Dash
No.
08
10
12
14
16
18
20
22
24
C Flats
Max
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
Min
.736 (18.7)
.860 (21.8)
.980 (24.9)
1.100 (27.9)
1.224 (31.1)
1.348 (34.2)
1.469 (37.3)
1.581 (40.2)
1.690 (42.9)
ØG
.140 (3.60)
.270 (6.90)
.390 (9.90)
.512 (13.0)
.637 (16.2)
.757 (19.2)
.881 (22.4)
1.006 (25.6)
1.131 (28.7)
M
Min
.250 (6.40)
.355 (9.00)
.491 (12.5)
.565 (17.5)
.690 (19.5)
.769 (21.4)
.894 (22.7)
1.019 (25.9)
1.134 (28.8)
N
Max
.197 (5.00)
.197 (5.00)
.236 (6.00)
.236 (6.00)
.276 (7.01)
.335 (8.51)
.394 (10.0)
.394 (10.0)
.591 (15.0)
Table II: Backshell Finish Options
Sym
XB
Finish Description
Black, Unplated
N
After Unrestricted
Shrinkage
Table IV: Boot Material Selection Guide
Attribute
Continuous Operating Temp.
Resistence To Fuels, Oils
Low Toxicity, Zero Halogen
Type 1 High-Performance
Semi-Rigid Elastomer
-75° to +150° c
Excellent
No
Type 2 Zero-Halogen
Semi-Rigid Polyolefin
-30° to +135° c
Very Good
Yes
Type 3 General Purpose
Flexible Polyolefin
-55° to +135° c
Good
No
Dimensions in Inches (millimeters) are subject to change without notice.
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
5
E-Mail: sales@glenair.com
