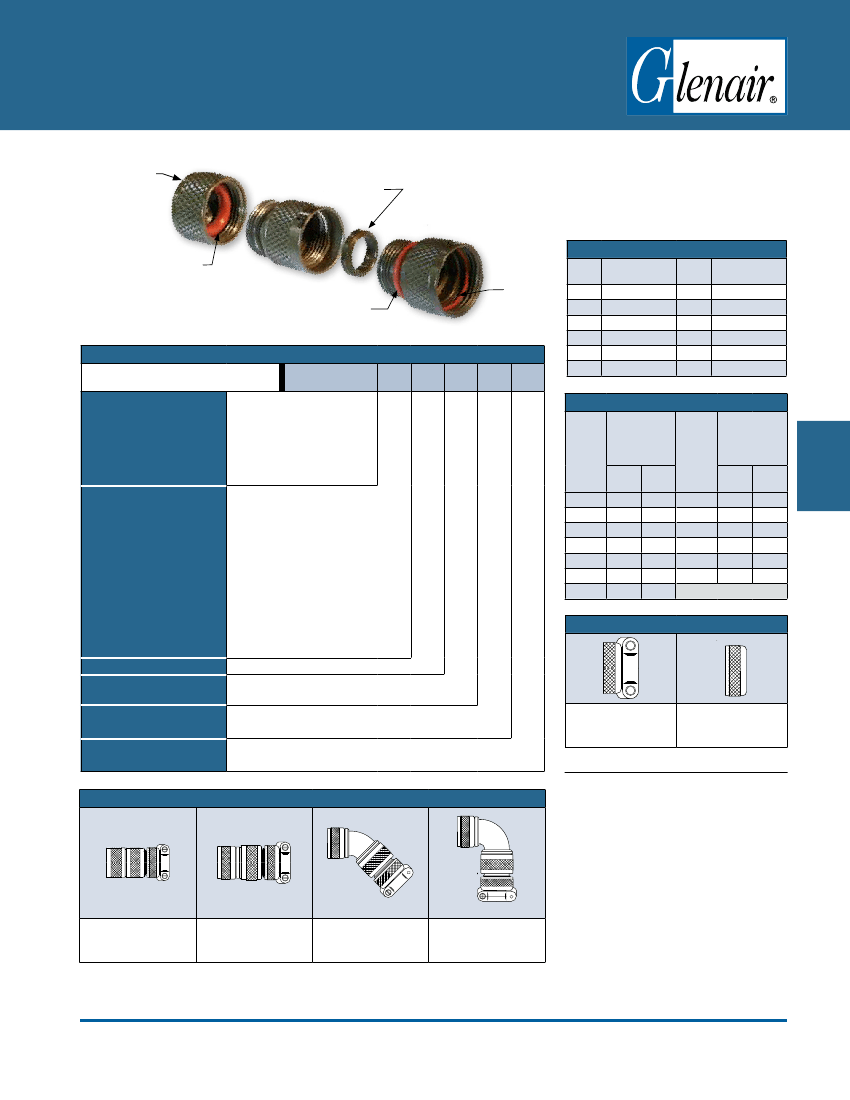

390MS076 Straight, 390M*077 Straight, 45° and 90°
Ordering Information
These backshells feature an EMI ring for
easy shield termination. O-rings provide
watertight seals on the cable jacket and
on the backshell-to-connector interface.
Table II: Size Code
O-Ring
Compression
Nut
EMI Ring
O-Ring
O-Ring
How To Order
Sample Part Number
390MS077
390MS076
= Straight Entry,
Direct Coupling
Series (See Table I)
390MS077
= Straight Entry,
Rotatable Coupling
390MB077
= 45° Entry
390MA077
= 90° Entry
C
= Aluminum / Black Anodize
(Non-Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel
NF
= Aluminum / Cadmium with
Olive Drab
ZN
= Aluminum / Zinc-Nickel with
Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with
Black Chromate
MT
= Aluminum / Nickel-PTFE
Z1
= Stainless Steel / Passivated
Size Code (See Table II)
Cable Entry Code
(See Table III)
Length
Clamp Style (See Table IV)
05, 06, 11, 07, 08, 09, 10, 12, 13, 14, 16, 17
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13
Straight Entry 390MS Only
Specify length in increments of .125; e.g.
6
=.75 in
Omit
= Screw Clamp with Saddle Bars
N
= Compression Nut, Low Profile
M
07
04-
6
N
Size
Thread Size
Size
Thread Size
Code Class -2B UNEF Code Class -2B UNEF
05
.2500-32
10
.6250-24
06
.3125-32
12
.6875-24
11
.3750-32
13
.7500-20
07
.4375-28
14
.9375-20
08
.5000-28
16
1.0625-18
09
.5625-24
17
1.1875-18
Table III: Cable Entry Code
Cable
Entry
Code
01-
02-
03-
04-
05-
06-
07-
Saddle
Clamp
J Diameter
Fully Closed
In.
mm.
± .030 ± 0.76
.110
2.79
.170
4.32
.230 5.84
.300 7.62
.360
9.14
.420 10.67
.480 12.19
Cable
Entry
Code
08-
09-
10-
11-
12-
13-
Saddle
Clamp
J Diameter
Fully Closed
In.
mm.
± .030 ± 0.76
.550 13.97
.610 15.49
.670 17.02
.730 18.54
.860 21.84
.990 25.15
Shell Material and Finish
Table IV: Cover Style
Omit
Screw Clamp With
Saddle Bars
N
Compression Nut,
Low Profile
Table I: Cover Style
390MS076
Straight Entry, Direct
Coupling
390MS077
Straight Entry,
Rotatable Coupling
390MB077
45° Entry
390MA077
90° Entry
1. Minimum length is .63 Inches. Tee table
i for standard lenth applies to sym s,
straight only
2. Use shrink sleeve or bushing to build
cable to dia. shown, under saddle bars
Materials
• Adapter, clamp, nut and saddles:
aluminum alloy 6061-t6 or 300 series
stainless steel
• O-rings: silicone rubber
• Hardware: 300 series stainless steel
Printed in U.S.A.
NOTES
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-37
E-Mail: sales@glenair.com
Accessories
Series 80 Mighty Mouse Environmental EMI Backshell
