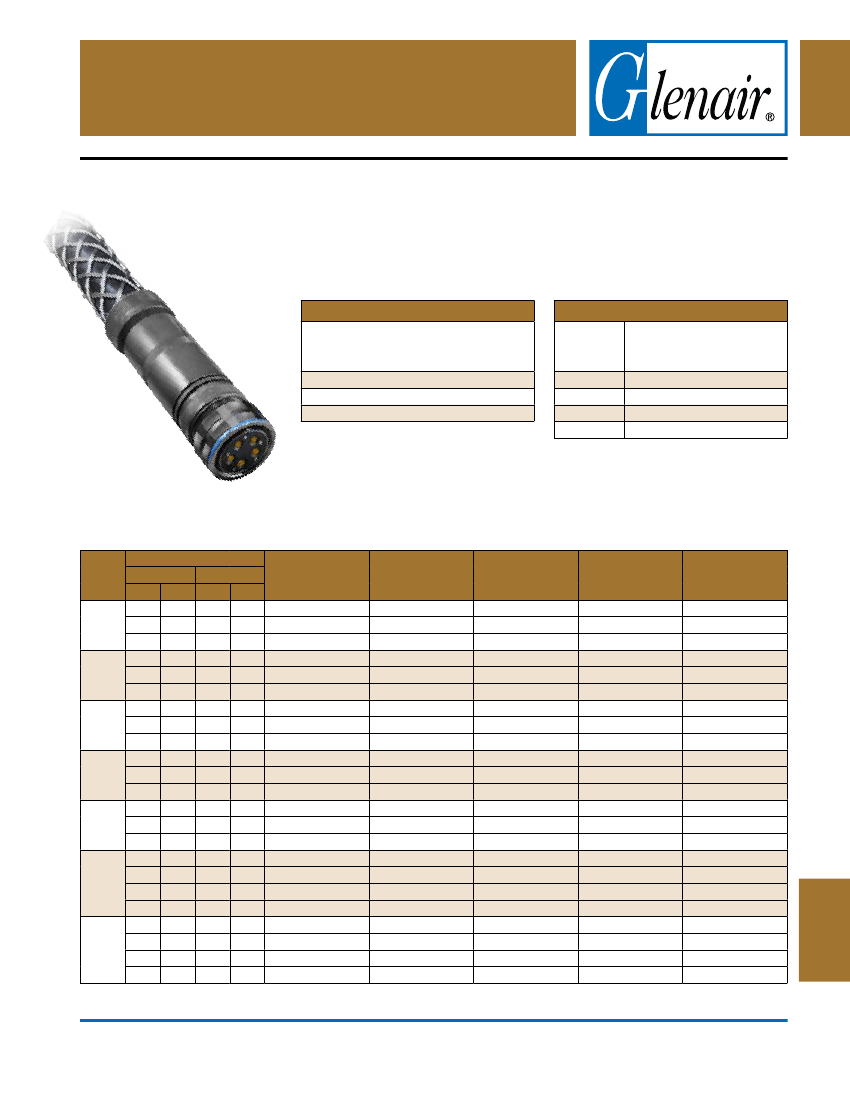

390PS086 EMI/RFI Submersible Backshell
390PS086 SUBMERSIBLE HEAVY DUTY BACKSHELL WITH WIRE MESH CORDGRIP
Heavy duty backshell fits Series 970 connectors and withstands MIL-S-901 grade A high impact
shock. Splined connector interface. Terminate cable shield to inner and outer ground rings.
Stainless steel wire mesh cordgrip provides strain relief to heavy duty power cables.
Withstands
six feet water immersion for 48 hours. Aluminum or stainless steel with silicone O-rings
and cable gland. Meets environmental, electrical and mechanical requirements of
MIL-DTL-28840.
MATERIALS AND FINISHES
Adapters, crimp rings, follower, coupling nut:
aluminum or stainless steel. See table for
finish options.
Hardware: stainless steel
Cable sealing gland, O-rings: silicone
Wire mesh cordgrip: stainless steel
INSTALLATION TORQUE
Shell Size
18
20, 24
28, 32, 36
40
Recommended Installation
Torque
Inch-Pounds ± 5
116
136
148
164
B
SHELL
SIZE
18
CABLE RANGE
Min.
Max.
In.
.500
.625
.750
.500
.625
mm.
12.70
15.88
19.05
12.70
15.88
In.
.625
.750
.875
.625
.750
mm.
15.88
19.05
22.23
15.88
19.05
HOW TO ORDER
ALUMINUM/
NICKEL
390PS086ME1810
390PS086ME1812
390PS086ME1814
390PS086ME2010
390PS086ME2012
390PS086ME2014
390PS086ME2412
390PS086ME2414
390PS086ME2420
390PS086ME2814
390PS086ME2820
390PS086ME2824
390PS086ME3224
390PS086ME3228
390PS086ME3232
390PS086ME3624
390PS086ME3628
390PS086ME3632
390PS086ME3640
390PS086ME4024
390PS086ME4028
390PS086ME4032
390PS086ME4040
ALUMINUM/
ALUMINUM/
ALUMINUM/
BLACK ZINC-
NICKEL-PTFE OD CADMIUM
NICKEL
390PS086MT1810
390PS086MT1812
390PS086MT1814
390PS086MT2010
390PS086MT2012
390PS086MT2014
390PS086MT2412
390PS086MT2414
390PS086MT2420
390PS086MT2814
390PS086MT2820
390PS086MT2824
390PS086MT3224
390PS086MT3228
390PS086MT3232
390PS086MT3624
390PS086MT3628
390PS086MT3632
390PS086MT3640
390PS086MT4024
390PS086MT4028
390PS086MT4032
390PS086MT4040
390PS086NF1810
390PS086NF1812
390PS086NF1814
390PS086NF2010
390PS086NF2012
390PS086NF2014
390PS086NF2412
390PS086NF2414
390PS086NF2420
390PS086NF2814
390PS086NF2820
390PS086NF2824
390PS086NF3224
390PS086NF3228
390PS086NF3232
390PS086NF3624
390PS086NF3628
390PS086NF3632
390PS086NF3640
390PS086NF4024
390PS086NF4028
390PS086NF4032
390PS086NF4040
390PS086ZR1810
390PS086ZR1812
390PS086ZR1814
390PS086ZR2010
390PS086ZR2012
390PS086ZR2014
390PS086ZR2412
390PS086ZR2414
390PS086ZR2420
390PS086ZR2814
390PS086ZR2820
390PS086ZR2824
390PS086ZR3224
390PS086ZR3228
390PS086ZR3232
390PS086ZR3624
390PS086ZR3628
390PS086ZR3632
390PS086ZR3640
390PS086ZR4024
390PS086ZR4028
390PS086ZR4032
390PS086ZR4040
STAINLESS
STEEL/
PASSIVATED
390PS086Z11810
390PS086Z11812
390PS086Z11814
390PS086Z12010
390PS086Z12012
390PS086Z12014
390PS086Z12412
390PS086Z12414
390PS086Z12420
390PS086Z12814
390PS086Z12820
390PS086Z12824
390PS086Z13224
390PS086Z13228
390PS086Z13232
390PS086Z13624
390PS086Z13628
390PS086Z13632
390PS086Z13640
390PS086Z14024
390PS086Z14028
390PS086Z14032
390PS086Z14040
Printed in U.S.A.
20
24
.750 19.05 .875 22.23
.625 15.88 .750 19.05
.750 19.05 .875 22.23
1.000 25.40 1.250 31.75
.750 19.05 .875 22.23
1.000 25.40 1.250 31.75
1.125 28.58 1.375 34.93
1.125 28.58 1.375 34.93
1.375 34.93 1.625 41.28
1.625 41.28 1.875 47.63
1.125 28.58 1.375 34.93
1.375 34.93 1.625 41.28
1.625
2.125
1.125
1.375
1.625
41.28
53.98
28.58
34.93
41.28
1.875
2.375
1.375
1.625
1.875
47.63
60.33
34.93
41.28
47.63
28
32
36
40
H
2.125 53.98 2.375 60.33
© 2013 Glenair, Inc.
Series 970 PowerTrip™
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
73
E-Mail: sales@glenair.com
Accessories
Series 970 PowerTrip™ Connectors and Accessories
Accessories
Series 970 PowerTrip™ Connectors and Accessories
Accessories

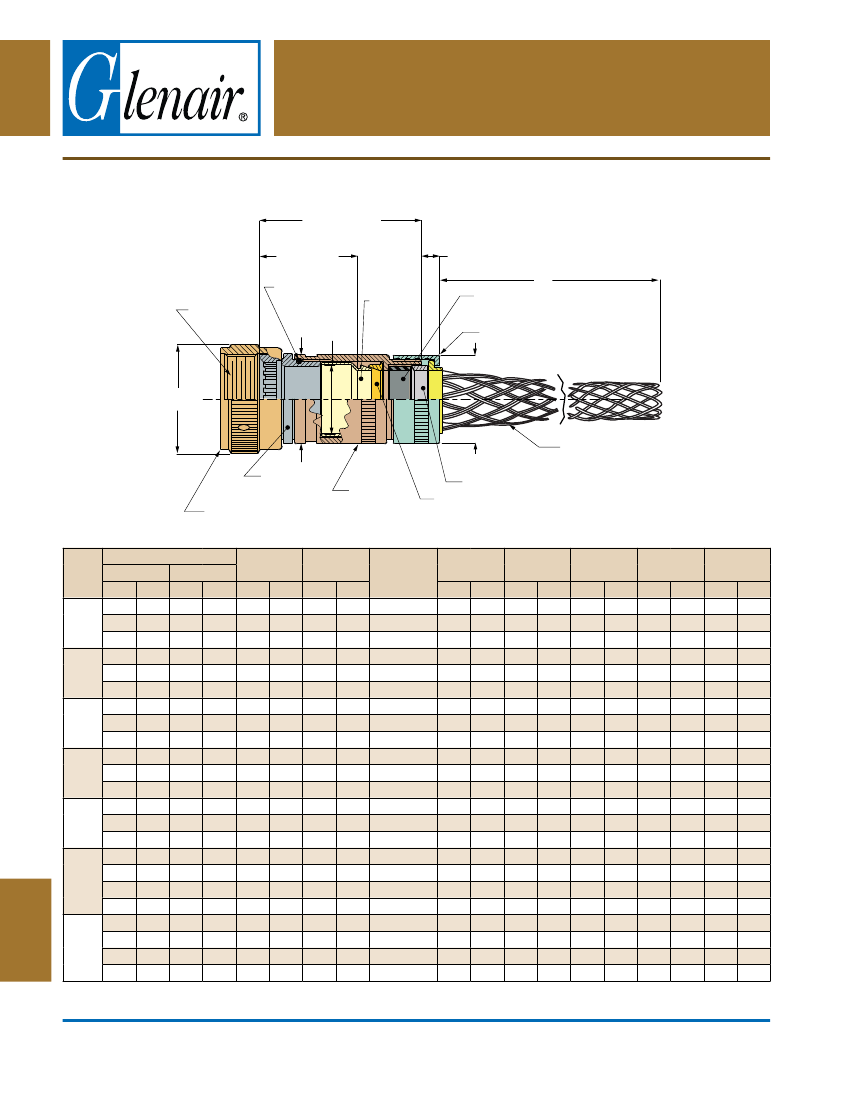

390PS086 EMI/RFI Submersible Backshell
390PS086 BACKSHELL WITH WIRE MESH CORD GRIP
L
ASSEMBLED
LENGTH
WORKING
ROOM
A THREAD
SILICONE
O-RING
ØC ØD
RFI
RING,
FRONT
H
Accessories
ØB
.63 (16.0)
X
SILICONE
GLAND
NUT
FRONT
ADAPTER
ØY
REAR
ADAPTER
FOLLOWER
RFI RING,
REAR
WIRE MESH
CORDGRIP
COUPLING NUT WITH
ANTI-DECOUPLING MECHANISM
Shell
Size
18
Cable Range
Min.
Max.
In.
mm.
.500 12.70
.625 15.88
.750 19.05
.500 12.70
.625 15.88
.750 19.05
.625 15.88
In.
mm.
.625 15.88
.750 19.05
.875 22.23
.625 15.88
.750 19.05
.875 22.23
.750 19.05
L Length
±.12 (3.0)
In.
4.62
4.62
4.62
4.62
4.62
4.62
5.12
5.12
5.12
5.12
5.12
5.12
5.12
6.12
6.12
6.12
6.12
6.12
6.62
6.12
6.12
6.12
6.62
mm.
117.4
117.4
117.4
117.4
117.4
117.4
130.1
130.1
130.1
130.1
130.1
130.1
130.1
155.5
155.5
155.5
155.5
155.5
168.2
155.5
155.5
155.5
168.2
Working
Room
In.
3.00
3.00
3.00
3.00
3.00
3.00
3.50
3.50
3.50
3.50
3.50
3.50
3.50
4.50
4.50
4.50
4.50
4.50
5.00
4.50
4.50
4.50
5.00
mm.
In.
76.2 1.125-18 UNEF 1.44
76.2 1.125-18 UNEF 1.44
76.2 1.125-18 UNEF 1.44
76.2 1.250-18 UNEF 1.54
76.2 1.250-18 UNEF 1.54
76.2 1.250-18 UNEF 1.54
88.9 1.438-18 UNEF 1.73
88.9 1.438-18 UNEF 1.73
88.9 1.438-18 UNEF 1.73
88.9 1.812-16 UN
2.14
88.9 1.812-16 UN
88.9 1.812-16 UN
88.9 2.062-16 UNS
114.3 2.062-16 UNS
114.3 2.062-16 UNS
114.3 2.250-16 UN
114.3
114.3
127.0
114.3
114.3
2.250-16 UN
2.250-16 UN
2.250-16 UN
2.500-16 UN
2.500-16 UN
2.14
2.14
2.37
2.37
2.37
2.63
2.63
2.63
2.63
2.93
2.93
2.93
2.93
A
Thread
Class 2B
0B
Max.
0C
Max.
0D
Min.
X Ref.
In.
4.37
5.00
5.00
4.37
6.00
5.00
6.00
5.00
6.25
5.00
6.25
7.25
7.25
mm.
111.0
127.0
127.0
111.0
152.4
127.0
152.4
127.0
158.8
127.0
158.8
184.2
184.2
203.2
254.0
184.2
203.2
254.0
320.0
184.2
203.2
254.0
320.0
Y Max.
In.
1.16
1.34
1.59
1.16
1.34
1.59
1.34
1.59
1.94
1.59
1.94
2.19
2.19
2.43
2.69
2.19
2.43
2.69
3.19
2.19
2.43
2.69
3.19
mm.
29.5
34.0
40.4
29.5
34.0
40.4
34.0
40.4
49.3
40.4
49.3
55.6
55.6
61.7
68.3
55.6
61.7
68.3
81.0
55.6
61.7
68.3
81.0
mm.
In.
mm.
In.
mm.
36.6 1.406 35.71 1.000 25.40
36.6 1.406 35.71 1.000 25.40
36.6 1.531 38.89 1.125 28.58
39.1 1.531 38.89 1.125 28.58
39.1 1.531 38.89 1.125 28.58
39.1 1.656 42.06 1.250 31.75
43.9 1.656 42.06 1.250 31.75
43.9 1.781 45.24 1.375 34.93
43.9 1.781 45.24 1.375 34.93
54.4 2.156 54.76 1.750 44.45
54.4 2.156 54.76 1.750 44.45
54.4 2.156 54.76 1.750 44.45
60.2 2.281 57.94 1.875 47.63
20
24
.750 19.05 .875 22.23
1.000 25.40 1.250 31.75
.750 19.05 .875 22.23
1.000 25.40 1.250 31.75
1.125 28.58 1.375 34.93
1.125 28.58 1.375 34.93
1.375 34.93 1.625 41.28
1.625 41.28 1.875 47.63
1.125 28.58 1.375 34.93
1.375
1.625
2.125
1.125
1.375
34.93
41.28
53.98
28.58
34.93
1.625
1.875
2.375
1.375
1.625
41.28
47.63
60.33
34.93
41.28
28
32
60.2 2.281 57.94 1.875 47.63 8.00
60.2 2.281 57.94 1.875 47.63 10.00
66.8 2.531 64.29 2.125 53.98
66.8
66.8
66.8
74.4
74.4
2.531
2.531
3.031
2.781
2.781
64.29
64.29
76.99
70.64
70.64
2.125
2.125
2.625
2.375
2.375
7.25
53.98 8.00
53.98 10.00
66.68 12.60
60.33 7.25
60.33 8.00
36
40
1.625 41.28 1.875 47.63
2.125 53.98 2.375 60.33
114.3 2.500-16 UN
127.0 2.500-16 UN
74.4 2.781 70.64 2.375 60.33 10.00
74.4 3.031 76.99 2.625 66.68 12.60
CAGE Code 06324
© 2013 Glenair, Inc.
Series 970 PowerTrip™
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
74
E-Mail: sales@glenair.com
