UNISONIC TECHNOLOGIES CO., LTD
6N60K-MT
Preliminary
Power MOSFET
6.2A, 600V N-CHANNEL
POWER MOSFET
DESCRIPTION
The UTC
6N60K-MT
is a high voltage power MOSFET and is
designed to have better characteristics, such as fast switching
time, low gate charge, low on-state resistance and have a high
rugged avalanche characteristics. This power MOSFET is usually
used at high speed switching applications in switching power
supplies and adaptors.
FEATURES
* R
DS(ON)
< 1.4Ω @ V
GS
= 10V, I
D
= 3.1A
* Fast switching capability
* Avalanche energy tested
* Improved dv/dt capability, high ruggedness

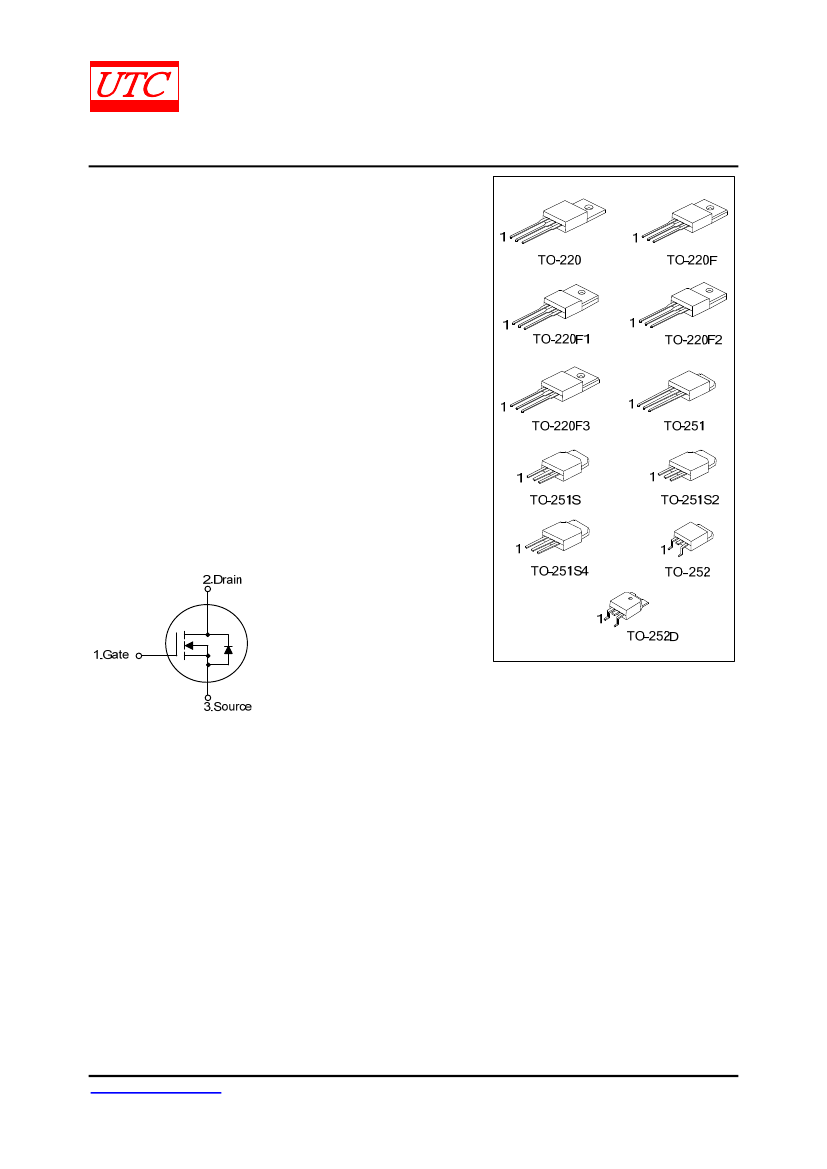

SYMBOL
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 7
QW-R205-021.d
6N60K-MT

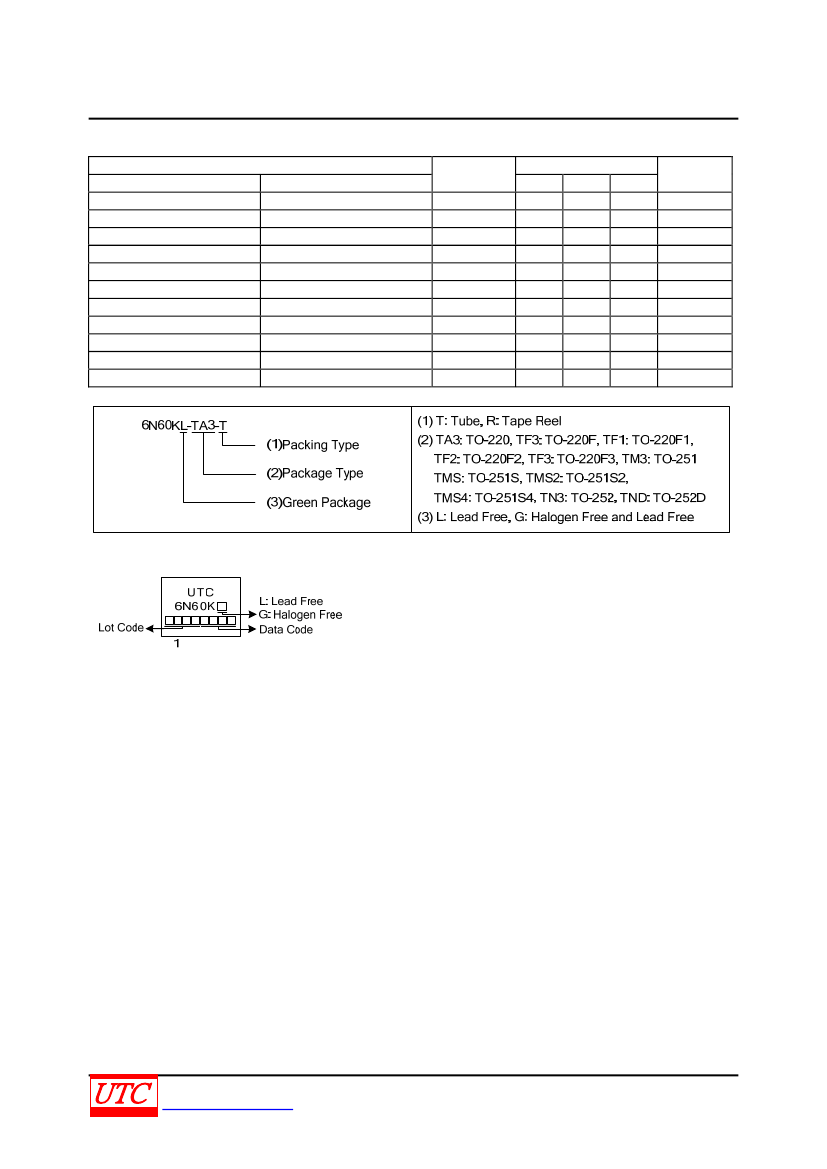

ORDERING INFORMATION
Preliminary
Power MOSFET
Ordering Number
Lead Free
Halogen Free
6N60KL-TA3-T
6N60KG-TA3-T
6N60KL-TF3-T
6N60KG-TF3-T
6N60KL-TF1-T
6N60KG-TF1-T
6N60KL-TF2-T
6N60KG-TF2-T
6N60KL-TF3-T
6N60KG-TF3-T
6N60KL-TM3-T
6N60KG-TM3-T
6N60KL-TMS-T
6N60KG-TMS-T
6N60KL-TMS2-T
6N60KG-TMS2-T
6N60KL-TMS4-T
6N60KG-TMS4-T
6N60KL-TN3-R
6N60KG-TN3-R
6N60KL-TND-R
6N60KG-TND-R
Note: Pin Assignment: G: Gate
D: Drain
S: Source
Package
TO-220
TO-220F
TO-220F1
TO-220F2
TO-220F3
TO-251
TO-251S
TO-251S2
TO-251S4
TO-252
TO-252D
Pin Assignment
1
2
3
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
G
D
S
Packing
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tape Reel
Tape Reel
MARKING
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 7
QW-R205-021.d
6N60K-MT
Preliminary
Power MOSFET
ABSOLUTE MAXIMUM RATINGS
(T
C
= 25°C, unless otherwise specified)
PARAMETER
SYMBOL
RATINGS
UNIT
Drain-Source Voltage
V
DSS
600
V
Gate-Source Voltage
V
GSS
±30
V
Avalanche Current (Note 2)
I
AR
6.2
A
Continuous Drain Current
I
D
6.2
A
Pulsed Drain Current (Note 2)
I
DM
24.8
A
Single Pulsed (Note 3)
E
AS
330
mJ
Avalanche Energy
13
mJ
Repetitive (Note 2)
E
AR
Peak Diode Recovery dv/dt (Note 4)
dv/dt
4.5
ns
TO-220
125
W
TO-220F/TO-220F1
40
W
TO-220F3
Power Dissipation
P
D
TO-220F2
42
W
TO-251/TO-251S
TO-251S2/TO-251S4
55
W
TO-252/TO-252D
Junction Temperature
T
J
+150
°C
Operating Temperature
T
OPR
-55 ~ +150
°C
Storage Temperature
T
STG
-55 ~ +150
°C
Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. Repetitive Rating : Pulse width limited by T
J
3. L = 18.33mH, I
AS
= 6A, V
DD
= 90V, R
G
= 25
Ω,
Starting T
J
= 25°C
4. I
SD
≤
6.2A, di/dt
≤200A/μs,
V
DD
≤
BV
DSS
, Starting T
J
= 25°C
THERMAL DATA
SYMBOL
RATINGS
62.5
θ
JA
110
1.0
3.2
θ
JC
2.97
2.27
°C/W
°C/W
°C/W
°C/W
°C/W
UNIT
°C/W
PARAMETER
TO-220/TO-220F
TO-220F1/TO-220F2
TO-220F3
Junction to Ambient
TO-251/TO-251S
TO-251S2/TO-251S4
TO-252/TO-252D
TO-220
TO-220F/TO-220F1
TO-220F3
Junction to Case
TO-220F2
TO-251/TO-251S
TO-251S2/TO-251S4
TO-252/TO-252D
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 7
QW-R205-021.d
6N60K-MT
PARAMETER
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
Preliminary
Power MOSFET
ELECTRICAL CHARACTERISTICS
(T
J
=25°C, unless otherwise specified)
SYMBOL
BV
DSS
TEST CONDITIONS
MIN TYP MAX UNIT
V
GS
=0V, I
D
=250μA
600
V
V
DS
=600V, V
GS
=0V
10
μA
Drain-Source Leakage Current
I
DSS
V
DS
=480V, V
GS
=0V, T
J
=125°C
10
μA
Forward
V
G=
30V, V
DS
=0V
100 nA
Gate- Source Leakage Current
I
GSS
Reverse
V
GS
=-30V, V
DS
=0V
-100 nA
Breakdown Voltage Temperature Coefficient
△BV
DSS
/△T
J
I
D
=250μA, Referenced to 25°C
0.53
V/°C
ON CHARACTERISTICS
Gate Threshold Voltage
V
GS(TH)
V
DS
=V
GS
, I
D
=250μA
2.0
4.0
V
Static Drain-Source On-State Resistance
R
DS(ON)
V
GS
=10V, I
D
=3.1A
1.4
Ω
DYNAMIC CHARACTERISTICS
Input Capacitance
C
ISS
540
pF
V
DS
=25V, V
GS
=0V, f=1.0 MHz
Output Capacitance
C
OSS
97
pF
Reverse Transfer Capacitance
C
RSS
11
pF
SWITCHING CHARACTERISTICS
Turn-On Delay Time
t
D(ON)
60
ns
Turn-On Rise Time
t
R
66
ns
V
DD
=30V, I
D
=0.5A, R
G
=25Ω
(Note 1, 2)
Turn-Off Delay Time
t
D(OFF)
120
ns
64
ns
Turn-Off Fall Time
t
F
Total Gate Charge
Q
G
23
28
nC
V
DS
=50V, I
D
=1.3A, V
GS
=10V
Gate-Source Charge
Q
GS
6.7
nC
(Note 1, 2)
5.7
nC
Gate-Drain Charge
Q
GD
DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS
Drain-Source Diode Forward Voltage
V
SD
V
GS
=0V, I
S
=6.2 A
1.4
V
Maximum Continuous Drain-Source Diode
I
S
6.2
A
Forward Current
Maximum Pulsed Drain-Source Diode
I
SM
24.8 A
Forward Current
Notes: 1. Pulse Test: Pulse width
≤
300μs, Duty cycle
≤
2%.
2. Essentially independent of operating temperature.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 7
QW-R205-021.d
6N60K-MT
Preliminary
Power MOSFET
TEST CIRCUITS AND WAVEFORMS
+
V
DS
-
+
-
L
D.U.T.
R
G
Driver
V
GS
Same Type
as D.U.T.
* dv/dt controlled by R
G
* I
SD
controlled by pulse period
* D.U.T.-Device Under Test
V
DD
Peak Diode Recovery dv/dt Test Circuit
V
GS
(Driver)
Period
P.W.
D=
P. W.
Period
V
GS
= 10V
I
FM
, Body Diode Forward Current
I
SD
(D.U.T.)
I
RM
Body Diode Reverse Current
di/dt
Body Diode Recovery dv/dt
V
DS
(D.U.T.)
V
