MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com
5.0 SMDJ SERIES
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE-5.0 TO 170 Volts
5000 Watt Peak Pulse Power
FEATURES
• For surface mounted applications in order to
optimize board space
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Excellent clamping capability
• Repetition rate (duty cycle):0.01%
• Fast response time: typically less than
1.0 ps from 0 volts to BV for unidirectional types
• Typical IR less than 1µA above 10V
• High temperature soldering:
250°C/10 seconds at terminals
• Plastic package has Underwriters Laboratory
Flammability Classification 94 V-O
MECHANICAL DATA

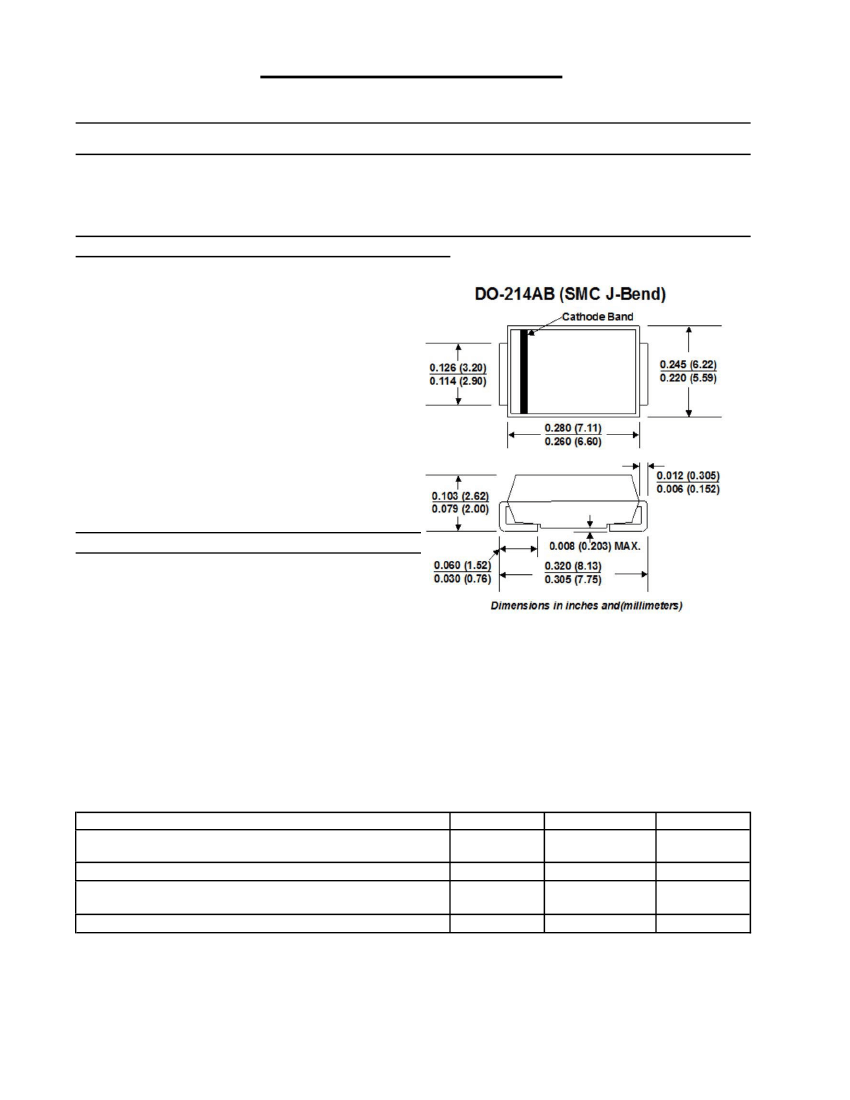

Case: JEDEC DO214AB. Molded plastic over glass
passivated junction
Terminals: Solder plated, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode)
except Bidirectional
Standard Packaging: 12mm tape (EIA STD RS-481)
Weight: 0.007 ounces, 0.021 grams)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types 5.0SMDJ5.0 thru types 5.0SMDJ170 (e.g. 5.0SMDJ5.0C, 5.0SMDJ170CA)
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
RATING
Peak Pulse Power Dissipation on 10/1000 µs
waveform
(NOTE 1, 2, Fig.1)
Peak Pulse Current of on 10/1000 µs waveform
(Note 1,Fig 3)
Peak Forward Surge Current, 8.3ms Single Half Sine-wave
Superimposed on Rated Load,
(JEDEC Method)(Note2, 3)
Operating Junction and Storage Temperature Range
SYMBOL
P
PPM
I
PPM
VALUE
Minimum 5000
SEE TABLE 1
400
-55 +150
UNITS
Watts
Amps
Amps
°C
I
FSM
T
J
, T
STG
NOTES:
1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.
2. Mounted on 8x8mm Copper Pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum.
Certified RoHS Compliant
UL File # E223026
2/5/2019
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com
5000 Watt Surface Mount TVS
UNI-POLAR
BI-POLAR
DEVICE
MARKING
CODE
UNI
BI
REVERSE
REVERSE BREAKDOWN BREAKDOWN
TEST
MAXIMUM
PEAK
VOLTAGE CURRENT CLAMPING
VOLTAGE
STANDOFF
PULSE LEAKAGE
V
BR
(V)
V
BR
(V)
VOLTAGE
(I
T
)
VOLTAGE CURRENT @ V
RWM
V
RWM
(V)
@I
PP
V
C
(V)
I
PP
(A)
MIN. @ I
T
MAX. @ I
T
I
R
(µA)
mA
5.0SMDJ5.0A
5.0SMDJ6.0A
5.0SMDJ6.5A
5.0SMDJ7.0A
5.0SMDJ7.5A
5.0SMDJ8.0A
5.0SMDJ8.5A
5.0SMDJ9.0A
5.0SMDJ10A
5.0SMDJ11A
5.0SMDJ12A
5.0SMDJ13A
5.0SMDJ14A
5.0SMDJ15A
5.0SMDJ16A
5.0SMDJ17A
5.0SMDJ18A
5.0SMDJ20A
5.0SMDJ22A
5.0SMDJ24A
5.0SMDJ26A
5.0SMDJ28A
5.0SMDJ30A
5.0SMDJ33A
5.0SMDJ36A
5.0SMDJ40A
5.0SMDJ43A
5.0SMDJ45A
5.0SMDJ48A
5.0SMDJ51A
5.0SMDJ54A
5.0SMDJ58A
5.0SMDJ60A
5.0SMDJ64A
5.0SMDJ70A
5.0SMDJ75A
5.0SMDJ78A
5.0SMDJ85A
5.0SMDJ90A
5.0SMDJ100A
5.0SMDJ110A
5.0SMDJ120A
5.0SMDJ130A
5.0SMDJ150A
5.0SMDJ160A
5.0SMDJ170A
5.0SMDJ5.0CA
5.0SMDJ6.0CA
5.0SMDJ6.5CA
5.0SMDJ7.0CA
5.0SMDJ7.5CA
5.0SMDJ8.0CA
5.0SMDJ8.5CA
5.0SMDJ9.0CA
5.0SMDJ10CA
5.0SMD110CA
5.0SMDJ12CA
5.0SMDJ13CA
5.0SMDJ14CA
5.0SMDJ15CA
5.0SMDJ16CA
5.0SMDJ17CA
5.0SMDJ18CA
5.0SMDJ20CA
5.0SMDJ22CA
5.0SMDJ24CA
5.0SMDJ26CA
5.0SMDJ28CA
5.0SMDJ30CA
5.0SMDJ33CA
5.0SMDJ36CA
5.0SMDJ40CA
5.0SMDJ43CA
5.0SMDJ45CA
5.0SMDJ48CA
5.0SMDJ51CA
5.0SMDJ54CA
5.0SMDJ58CA
5.0SMDJ60CA
5.0SMDJ64CA
5.0SMDJ70CA
5.0SMDJ75CA
5.0SMDJ78CA
5.0SMDJ85CA
5.0SMDJ90CA
5.0SMDJ100CA
5.0SMDJ110CA
5.0SMDJ120CA
5.0SMDJ130CA
5.0SMDJ150CA
5.0SMDJ160CA
5.0SMDJ170CA
5RDE
5RDG
5RDK
5PDM
5PDP
5PDR
5PDT
5PDV
5PDX
5PDZ
5PEP
5PEQ
5PER
5PES
5PET
5PEU
5PFV
5PEW
5PEX
5PEZ
5PFE
5PFG
5PFK
5PFM
5PFP
5PFR
5PFT
5PFV
5PFX
5PFZ
5PGE
5PGG
5PGK
5PGM
5PGP
5PGR
5PGT
5PGV
5PGX
5PGZ
5PHE
5PHG
5PHK
5PHM
5PHP
5PHR
5DDE
5DDG
5DDK
5DDM
5DDP
5DDR
5DDT
5DDV
5DDX
5DDZ
5BEP
5BEQ
5BER
5BES
5BET
5BEU
5BFV
5BEW
5BEX
5BEZ
5BFE
5BFG
5BFK
5BFM
5BFP
5BFR
5BFT
5BFV
5BFX
5BFZ
5BGE
5BGG
5BGK
5BGM
5BGB
5BGR
5BGT
5BGV
5BGX
5BGZ
5BHE
5BHG
5BHK
5BHM
5BHB
5BHR
5.00
6.00
6.50
7.00
7.50
8.00
8.50
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
20.00
22.00
24.00
26.00
28.00
30.00
33.00
36.00
40.00
43.00
45.00
48.00
51.00
54.00
58.00
60.00
64.00
70.00
75.00
78.00
85.00
90.00
100.00
110.00
120.00
130.00
150.00
160.00
170.00
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
167.00
178.00
189.00
7.00
7.37
7.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147.00
159.00
185.00
197.00
209.00
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
543.6
485.5
446.5
416.8
387.7
367.7
347.3
324.8
294.2
274.8
252.0
233.0
216.0
205.0
193.0
181.0
172.0
155.0
141.0
129.0
119.0
110.0
103.0
93.9
86.1
77.6
72.1
68.8
64.7
60.7
57.5
53.5
51.7
48.6
44.3
41.4
39.7
36.5
34.3
30.9
28.3
26.0
24.0
20.6
19.3
18.2
1050
1050
750
300
150
70
30
12
6
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
For bidirectional type having Vrwm of 20 volts and less, the IR limit is double.
For parts without A , the VBR is ± 10%
Certified RoHS Compliant
UL File # E223026
2/5/2019
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax: 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com

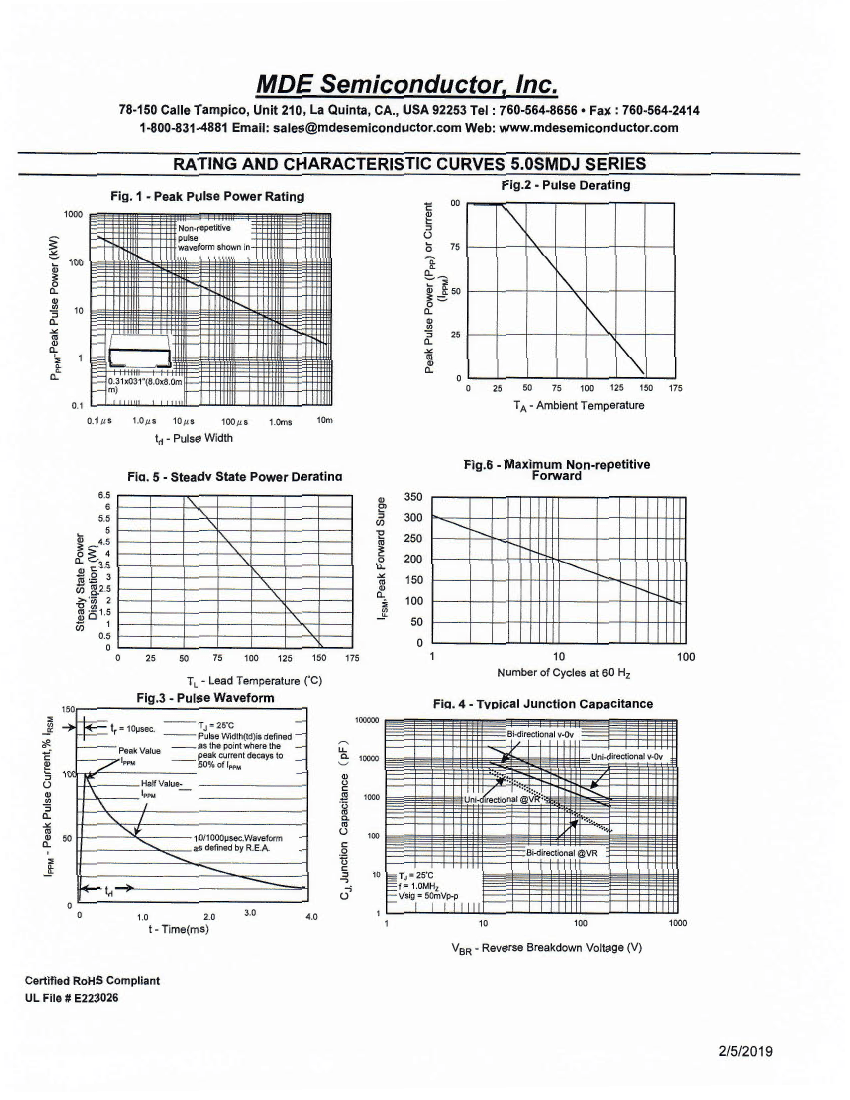

RATING AND CHARACTERISTIC CURVES S.OSMDJ SERIES
Fig. 1
•
Peak Pulse Power Rating
1000
Non-repetitive
pulse
waveform shown in
100
Fig.2 - Pulse Derating
'E
00
§'
~
:;
u
0
~
a.
~
Q)
~
75
a..
g
Q)
Qi
e:..
~
~
['-...
'\
::;
:;
"'
a..
('ll
10
t-
t-
........
a..
Q)
0
::
~
a.
50
'\
'\
"""
a..
a..
Q)
'::;
a.
a.
=
-
0.1
~
0.31x031"(8.0x8.0m
m)
IIIII
a
:;
a..
a..
"'
('ll
25
~
125
.>t:.
Q)
0
0
25
50
75
100
1\
150
175
TA - Ambient Temperature
10
JL
S
100JLS
1.0ms
10m
0.1
JL
S
1.0
JL
S
trl
-
Pulse Width
Fia. 5 - Steadv State Power Deratina
6.5
6
5.5
~
Fig.6
-
Maximum Non-repetitive
Forward
'\.
'\.
'\.
i'\.
(/)
e>
::::s
til
Q)
350
300
250
200
150
100
50
0
10
Number of Cycles at
60
Hz
,£~
4
5
~
~4. 5
Q)
"E!
-............
r--
.......
:---
'\..
~
3
ii5
~25
~
·~
2
~
(51.5
ro
c:
3.5
'\.
1\.
LJ_
0
~
'\.
"""
('ll
-..............
.........
'\..
'\..
0
25
50
75
100
125
a..
Q)
r--
r-- ......
ii5
~
i
VJ
1
0.5
0
'\.
150
175
100
TL- Lead Temperature (
C)
Fig.3 - Pulse Waveform
150
::;
Fia. 4 - Tvoical Junction Capacitance
-
...!f
~
"'
"i
~
::::s
u
Q)
<F
:;
a..
a..
"'
- - P ulse
Width(td)IS defined -
-as the point
where
the
-
-
- P eak
Value
_
_
peak current decays to
-
_ /
IPPM
50% OfiPPM
-
10
Half Value-
I
ppM
\
~
t
r
=
10~sec.
ff
- -
TJ
=
25"C
-
\.
50
I
.>t:.
('ll
'\...
Q)
~
I
.............
............
10/1
O
OO~sec.Waveform
as
defined by
R.E.A.
__,.
* " - trl
0
0
1.0
t
- Time(ms)
--
--
2.0
3.0
-
-
4.0
10
100
1000
V
6
R-
Reverse Breakdown Voltage
(V)
Certified RoHS Compliant
UL File# E223026
2/5/2019
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com
5.0 SMDJ SERIES
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE-12.0 TO 15.0 Volts
5000 Watt Peak Pulse Power

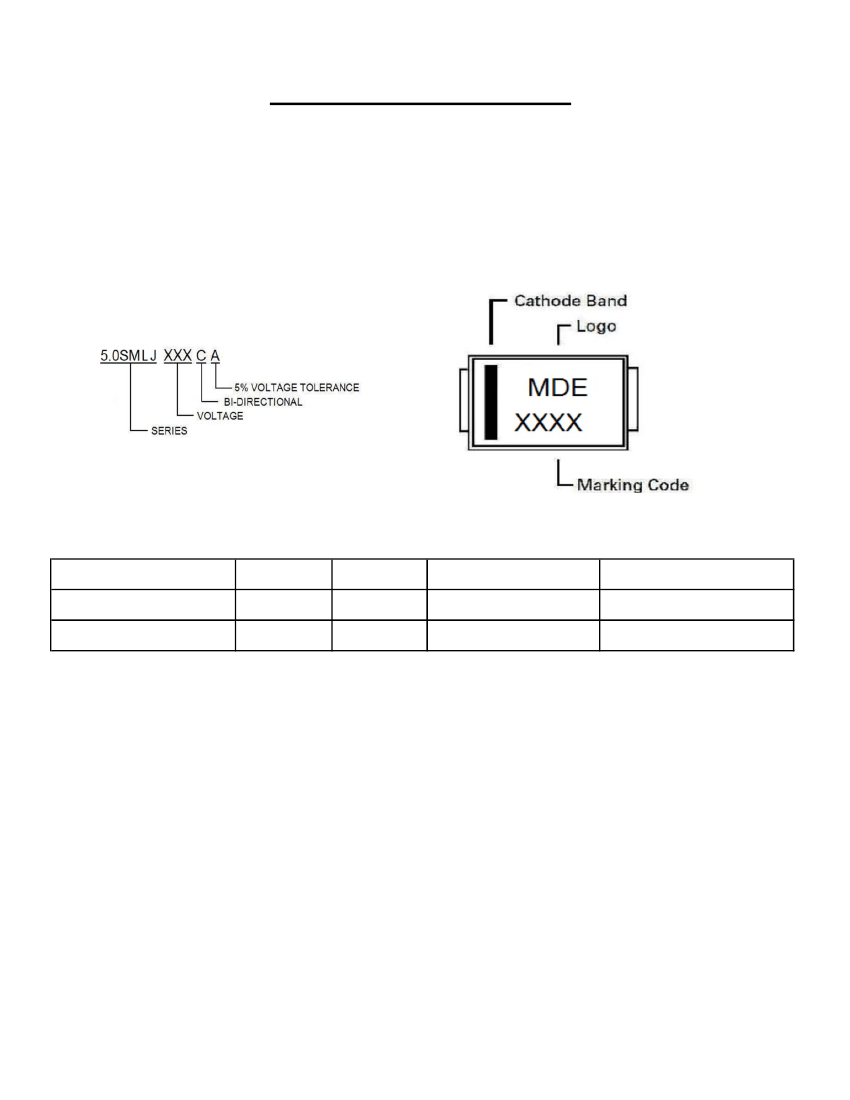

Part number
5.0SMDJxxxXX
5.0SMDJxxxXX
Component
Package
DO-214AB
DO-214AB
Quantity
3000
500
Packaging Option
Tape & Reel - 16mm/13" tape
Tape & Reel - 16mm/ 7" tape
Packaging Specification
EIA STD RS-481
EIA STD RS-481
2/5/2019
