LL35V220MTR5X11 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> LL35V220MTR5X11

LL35V220MTR5X11: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size149KB，1 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com

Download Datasheet Parametric View All

LL35V220MTR5X11 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

LL35V220MTR5X11 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.00154 mA
Manufacturer's serial number	LL
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
surface mount	NO
Delta tangent	0.12
Terminal shape	WIRE

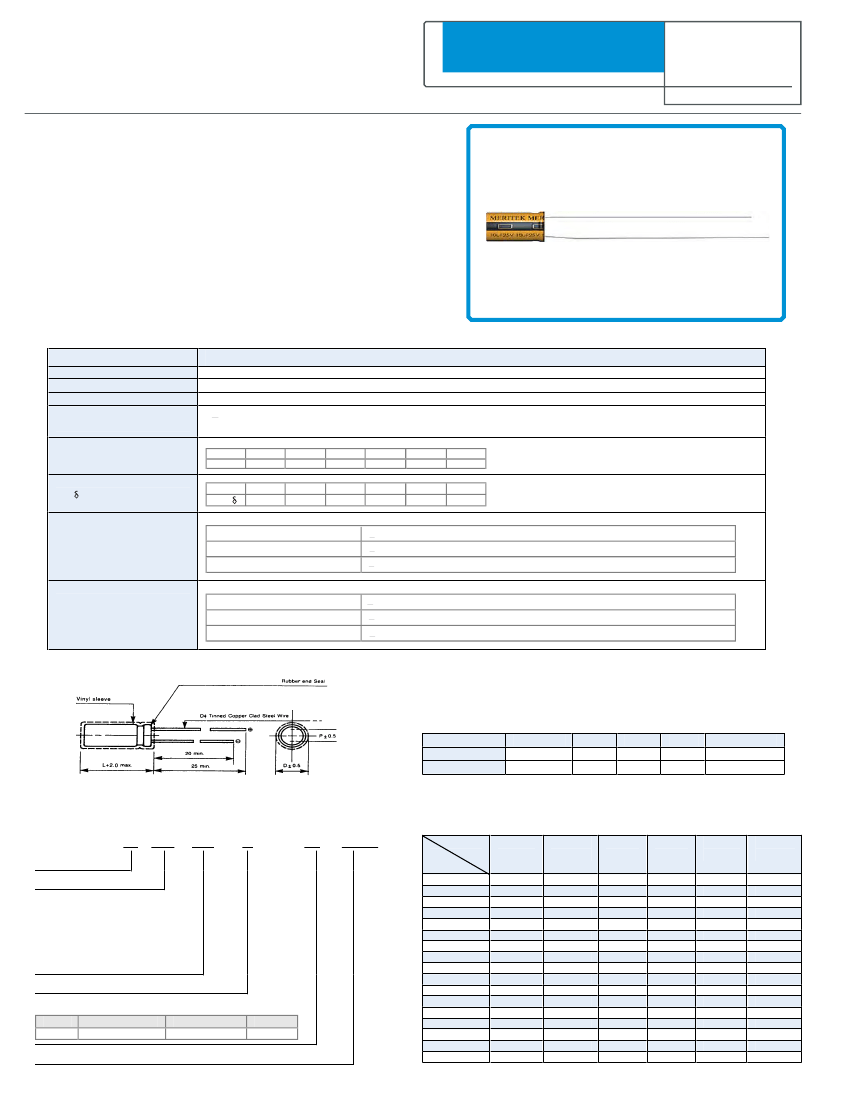

Preview

Download Datasheet

View All

Aluminum Electrolytic Capacitors

Series

(Low Leakage)

MERITEK

EATURE

•

Low leakage current

Applications for Hi-Fi pre-amp and TV oscillation

PECIFICATIONS

Item

Operating Temp Range

Rated Working Voltage

Capacitance Tolerance

Leakage Current

(25

Surge voltage (25

Characteristic

-40

C to +85

10 to 50VDC

±20%

(M)

I < 0.002CV or 0.4μA,

whichever is greater

after 3 minutes

l= Leakage current (μA) C= Nominal Capacitance (μF) V= Rated voltage

(V)

tan

0.20

0.16

0.14

0.12

0.10

Dissipation Factor

Tan (120Hz, 25

Load Life

After 1000 hours application of WV at 85

C the capacitor shall meet the following limits.

Capacitance change

< ±

20% of initial value

Dissipation Factor

Leakage current

200% of initial specified value

initial specified value

Shelf Life

At 85

C no voltage applied after 500 hours the capacitor shall meet the following limits.

Capacitance change

< ±

20% of initial value

Dissipation Factor

Leakage current

200% of initial specified value

EAD

PACING

2.0

0.5

6.3

2.5

0.5

3.5

0.5

5.0

0.6

5.0

0.6

ART

UMBERING

YSTEM

Meritek Series

Voltage

Capacitance

Expressed in microfarads (μF).

First two digits are significant

figures. Third digit denotes

number of zeros. ‘R’ Denotes

decimal point for values less

than 10μF.

Tolerance –

M = ±20%, K = ±10%

Package

CODE

Tape & Ammo

Tape & Reel

BLANK

Bulk

ASE

IZE

10x12

μF

0.1

0.22

0.33

0.47

2.2

3.3

4.7

100

220

330

470

1000

16V

222

(SV)

DXL (mm)

(13)

(20)

(32)

(44)

(63)

5x11

8x11

10x12

10x16

(73)

5x11

6.3x11

10x12

10x16

13x21

Case size – (D)

Diameter X

(L)

Length in mm (Optional)

5x11

6.3x11

8x11

10x12

10x16

5x11

6.3x11

8x11

10x12

10x16

5x11

6.3x11

10x12

10x16

5x11

6.3x11

8x11

10x12

10x16

Specifications are

subject to change without notice.

rev.6a

Recommended Resources

Undercompensated energy consumption automatic link circuit

Overheating protection circuit for power transistors

Field effect transistor logic probe circuit

Voltage Reference Extended Current Circuit

Power supply circuit diagram of SAMSUNG CK-4656 color display

T-bridge oscillation circuit

Strange problem with wince: The specific manifestation is: the PC blue screen is caused by USB connection, and the WINCE system becomes very slow. In other words, as long as the USB is not connected, there is no problem. I don't...; lvliming Embedded System

Show off my EP3C10E144C8N minimum system board: [size=6]I made an FPGA board out of free time. After a few days of tinkering, I finally debugged it. Here is the front view of the board [img=1024,768]https://home.eeworld.com.cn/my/attachment/201207/...; deweyled FPGA/CPLD

Emergency Light Application Experience: This time, I responded to the call of the forum and joined the production team of emergency lights. From the initial research to the final completion, I experienced many things in the middle, and went...; eeleader DIY/Open Source Hardware

I was interviewed today by accident.: I had planned to wait until the middle of next year to find a job, so this experience came unexpectedly. This morning, at around 8 o'clock, I was in bed. My juniors next door were going to attend the ...; eeleader Talking about work

How to control a 360-degree rotating servo: I have been looking for it for a long time but can't find it. Please help me....; 我也爱电子设计 DIY/Open Source Hardware

FG4618 is a good thing!: Two years ago, I used F1611 to make ultrasonic flowmeters. As a result, it often crashed, communication was very abnormal, and reliability was very poor, which had a great negative impact on the compa...; jspp Microcontroller MCU
