90 Degree SMA Hybrid From 2 GHz to 4 GHz Rated To 50 Watts
TECHNICAL DATA SHEET
Configuration
Connector 1
Connector 2
Coupled Connectors
Design
SMA Female
SMA Female
SMA Female
90 Degrees Hybrid
PE2052
Electrical Specifications
(Values at 25°C, sea level)
Description
Frequency Range
Phase Difference
Impedance
Isolation
Insertion Loss
Input Power
Input VSWR
Peak Power
Flatness
Coupling Value
Coupled Loss
Frequency Sensitivity
.
0.4
0.8
3
0.1
22
3.1
50
1.2:1
3
KWatts
dB
dB
dB
dB
Minimum
2
Typical
90
50
Maximum
4
Units
GHz
Degrees
Ohms
dB
dB
Watts
Mechanical Specifications
Size
Length
Width/Dia.
Height
.
1.15 in [29.21 mm]
1.25 in [31.75 mm]
0.38 in [9.65 mm]
Connectors
Description
Type
.
Connector 1
SMA Female
Connector 2
SMA Female
Coupled Connectors
SMA Female
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
90 Degree SMA Hybrid From 2 GHz to 4 GHz Rated To 50 Watts PE2052
PE2052 REV 1.3
1
90 Degree SMA Hybrid From 2 GHz to 4 GHz Rated To 50 Watts
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
Not RoHS Compliant
REACH Compliant
06/18/2012
PE2052
Plotted and Other Data
Notes:
• Values at 25 °C, sea level

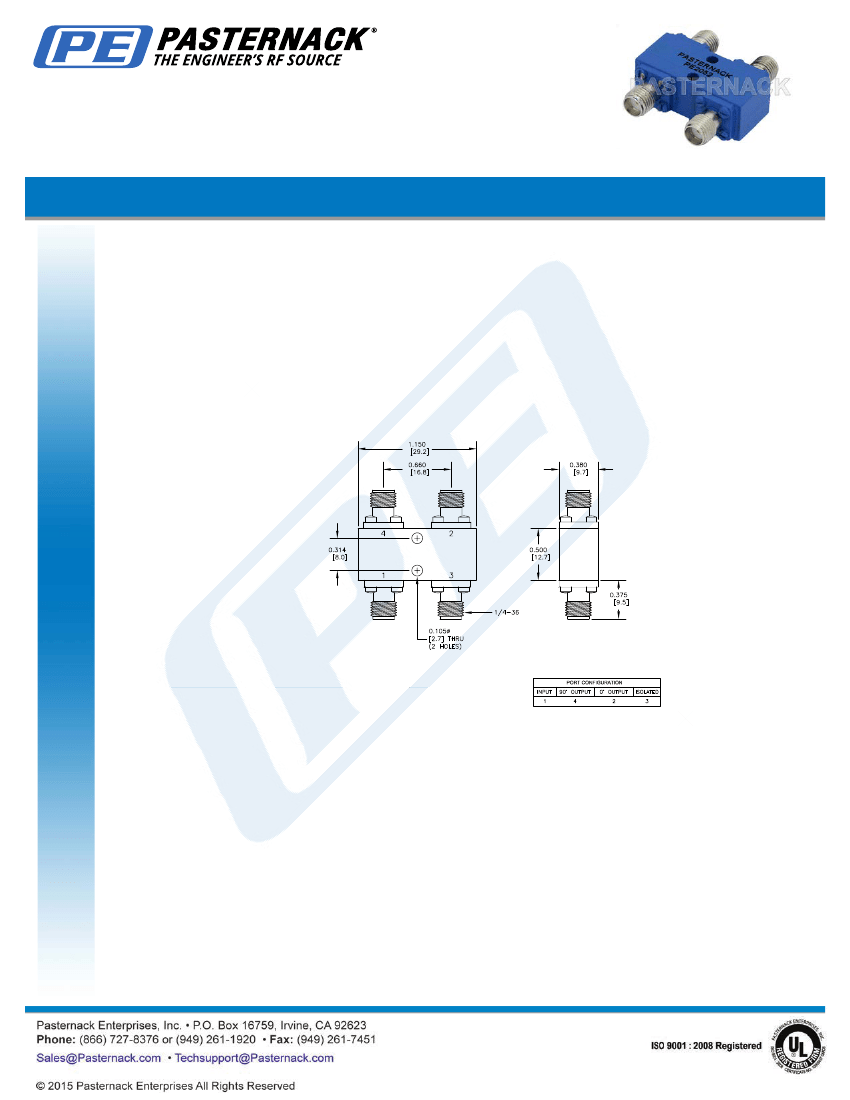

Outline Drawing
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
90 Degree SMA Hybrid From 2 GHz to 4 GHz Rated To 50 Watts PE2052
PE2052 REV 1.3
2
90 Degree SMA Hybrid From 2 GHz to 4 GHz Rated To 50 Watts
TECHNICAL DATA SHEET
PE2052
90 Degree SMA Hybrid From 2 GHz to 4 GHz Rated To 50 Watts from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part
of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
90 Degree SMA Hybrid From 2 GHz to 4 GHz Rated To 50 Watts PE2052
URL:
http://www.pasternack.com/hybrid-directional-3-db-sma-coupler-2-4-ghz-50-watts-pe2052-p.aspx
PE2052 REV 1.3
3
