257-163 Flange Mount and 257-164 Weld Mount
Connector Receptacle Assemblies
Stainless Steel
How To Order
Sample Part Number
Series No.
Basic No.
Class
Shell Size
Insert Arrangement Dash No.
Contact Style
Alternate Insert Position
257
-005
H
= Hermetic
–
= Standard
See Table I
See page D-14
P
= Pin
S
= Socket (Non-Hermetic)
See page D-14. Omit for Normal
257
-163
H
-14S
-5
P
W
M
C Typ
D Thread
Polarizing Key

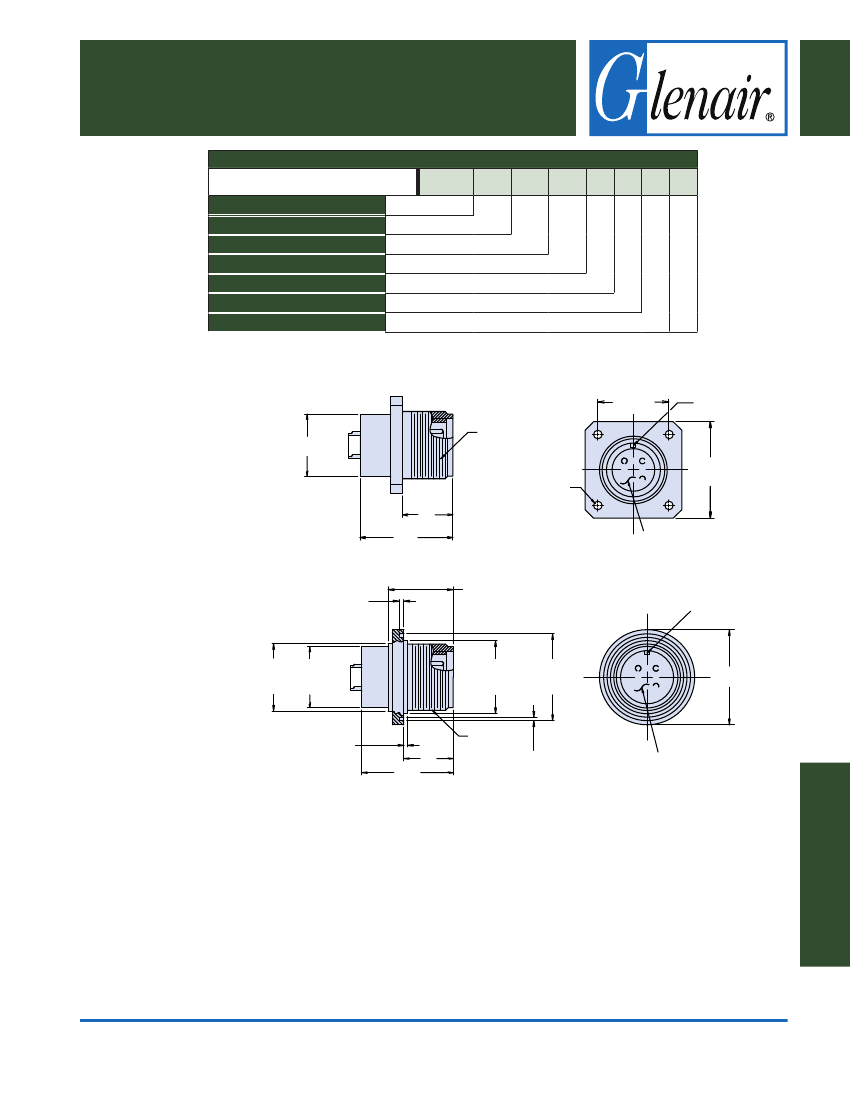

257-163
Flange Mount
A Dia
B Typ
E Hole
Thru Typ.
H
F
Insert Arrangements (See Page D-14)
.045 (1.1) ± .006 (.2)
.915 (23.2) Max
Polarizing Key
257-164
Weld Mount
J
Dia
A Dia
K
Dia
L
Dia
M Dia
.035 (.9) Max
H
F
D Thread
.058 (1.5)
± .002 (.1)
Insert Arrangements
(See Below)
© 2014 Glenair, Inc.
Series 22 Geo-Marine
®
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-23
E-Mail: sales@glenair.com
Geo-Marine
®
Custom Applications
D
Geo-Marine
®
Custom Applications
Shell
Size
10SL
12
14S
18
20
22
24
A Max
.609 (15.5)
.650 (16.5)
.733 (18.6)
.975 (24.8)
1.105 (28.1)
1.328 (33.7)
1.350 (34.3)
Shell
Size
10SL
12
14S
18
20
22
24
H +.031 (.8)
-.000 (.0)
.562 (14.3)
.562 (14.3)
.562 (14.3)
.724 (18.4)
.724 (18.4)
.724 (18.4)
.724 (18.4)
Shell
Insulator
O-Ring, Grommet
Contacts
Contact Current Rating
257-163 Flange Mount and 257-164 Weld Mount
Connector Receptacle Assemblies
Stainless Steel
Table I
B Sq.±.031 (.8)
1.000 (25.4)
1.094 (27.8)
1.188 (30.2)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
C ±.005 (.1)
.719 (18.3)
.812 (20.6)
.906 (23.0)
1.062 (27.0)
1.156 (29.4)
1.250 (31.8)
1.375 (34.9)
D Thread
Class 2A UNEF
.625 -24
.750 -20
.875 -20
1.125 -18
1.250 -18
1.375 -18
1.500 -18
E
+.010 (.1)
-.005 (1.3)
.120 (3.0)
.120 (3.0)
.120 (3.0)
.120 (3.0)
.120 (3.0)
.147 (3.7)
.147 (3.7)
F Max
1.000 (25.4)
1.000 (25.4)
1.000 (25.4)
1.200 (30.5)
1.200 (30.5)
1.200 (30.5)
1.200 (30.5)
Table II
J Dia
.750 (19.1)
.906 (23.0)
1.016 (25.8)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
K Dia
.825 (21.0)
.950 (24.1)
1.075 (27.3)
1.275 (32.4)
1.450 (36.8)
1.575 (40.0)
1.700 (43.2)
L Dia
1.061 (26.9)
1.187 (30.1)
1.279 (32.5)
1.479 (37.6)
1.654 (42.0)
1.744 (44.3)
1.879 (47.7)
M Dia
1.132 (28.8)
1.258 (32.0)
1.345 (34.2)
1.550 (39.4)
1.725 (43.8)
1.815 (46.1)
1.950 (49.5)
Table III: Material/Finish
Non-Hermetic Receptacles
Passivated Stainless Steel
Nitrile/Neoprene
Nitrile/Neoprene
Gold Plated Copper Alloy
With Solder Pots
#20-7.5 Amps
#16-13 Amps
#12-23 Amps
#8-43 Amps
Hermetic Receptacles
Passivated Stainless Steel
Full Glass
Nitrile/Neoprene
Alloy 52/Gold Plate
#20-5 Amps
#16-10 Amps
#12-17 Amps
#8-35 Amps
Rated Operating Voltage
D
Dielectric Withstanding
Voltage (Hi-Pot)
Insulation Resistance
Temperature Range
Service Rating INST - 250 VDC
Service Rating A - 700 VDC
250 VDC
Service Rating D - 1250 VDC
Service Rating INST - 1000 VRMS
Service Rating A - 2000 VRMS
1000 VRMS
Service Rating D - 2800 VRMS
5000 Megohms minimum at
500 VDC and +25°C
-55°C to +125°C
5000 Megohms minimum at
500 VDC and +25°C
-55°C to +125°C
© 2014 Glenair, Inc.
Series 22 Geo-Marine
®
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-24
E-Mail: sales@glenair.com
