257-216: DescriptionJam Nut Mount Hermetic Receptacles; File Size309KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

257-216 Overview

Jam Nut Mount Hermetic Receptacles

Preview

Download Datasheet

View All

MIL-DTL-38999 Type

Hermetic Connectors

257-216

Jam Nut Mount Hermetic Receptacles

with Crimp Removable Socket Contacts

MIL-DTL-38999 Series III Type

Basic

Number

Insert Arrangement

Per MIL-STD-1560

Alternate Key

Position

A, B, C, D, E

(N = Normal)

257-216

Shell Size

Table I

Contact

Termination

- Pin

- Socket

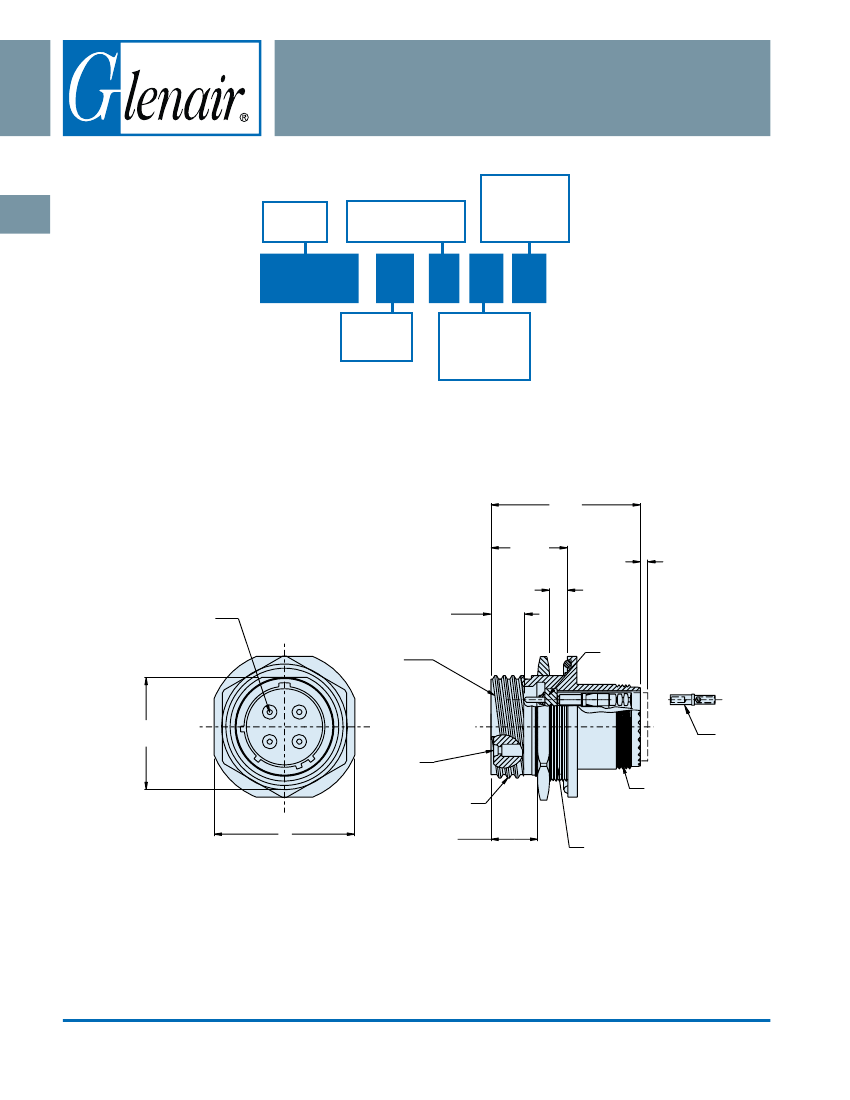

1.73

1.170

MAX

.385 MAX

PANEL

THICKNESS

GLASS

. 085 MAX

GROMMET

. 234 FOR

SIZE 8 & 10

CONTACTS

INSERT ARRANGEMENT

PER-MIL-STD-1560

.415

.374

PIN LOCATION

INTERFACE

FLAT

FIXED

SOCKET

INTERFACE

SEE NOTE 2

A THREAD

. 520 MAX.

FULLY MATED

INDICATOR

BAND-RED

B THREAD

C THREAD

Dimensions in Inches (millimeters) are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-70

E-Mail: sales@glenair.com
