257-606 (00)

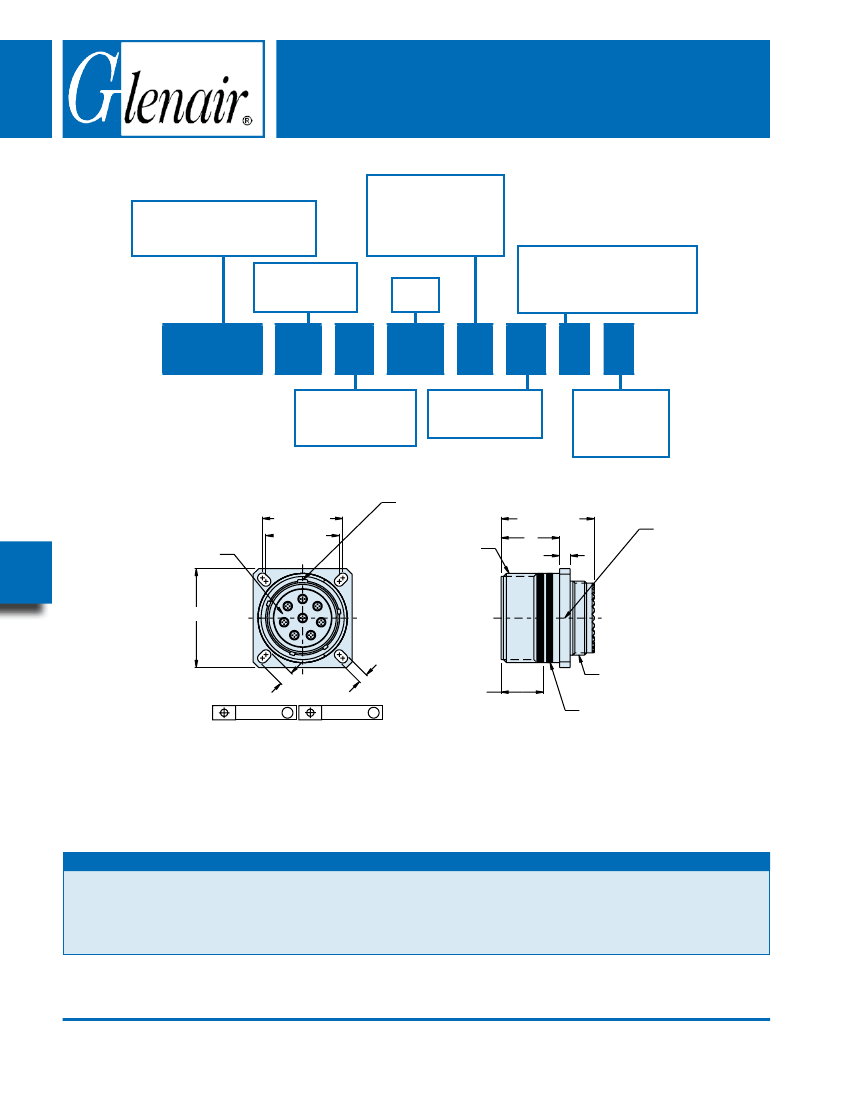

Wall Mount Quadrax Receptacle Connector
with Slotted Holes • MIL-DTL-38999 Series III Type
Twinax and
Quadrax
Connectors
Basic Part Number
257-606
=
D38999 Series III Type
Quadrax Connector
Ground Plane
Option
G
= Outer Contacts
Grounded to Shell
––
= None
Finish/Material
(See Table II)
Shell
Size
Insert Designator
A
= Pin Insert (Less Contacts)
B
= Socket Insert (Less Contacts
(See Note 7)
257-606
NF
00
-
25Q
-
G
08
A
N
Connector Style
00
= Wall Mount,
Slotted Holes
Insert Arrangement
Dash Number
(See Note 3)
(N for Normal)
Alternate Key
Position
A, B, C, D, or E
E
See Notes 3 and 4
2x F Bsc
2x G Bsc
See Note 6
A
H
E
D
Master Keyway
D Thread
1.240 (31.5)
Max
L
K
See Note 2
G
B
C
E Sq
F
C Thread
4x J
.005 (0.1)
M
4x H
.005 (0.1)
M
.510 (13.0) Max
Fully Mated
Indicator Band Red
Blue Color Band
See Note 5
00-Wall Mount Receptacle
With Slotted Holes
(See Table I)
APPLICATION NOTES
1.
2.
3.
4.
Material/Finish (See Table II).
Assembly identified with Glenair’s, part number and date code
Insert arrangements IAW MIL-STD-1560 and Figure 1.
Insert arrangements shown is for reference only.
5.
6.
7.
Blue color band indicates rear release retention system.
Front panel mount only.
Parts will be identified “A” or “B.”
© 2010 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-16

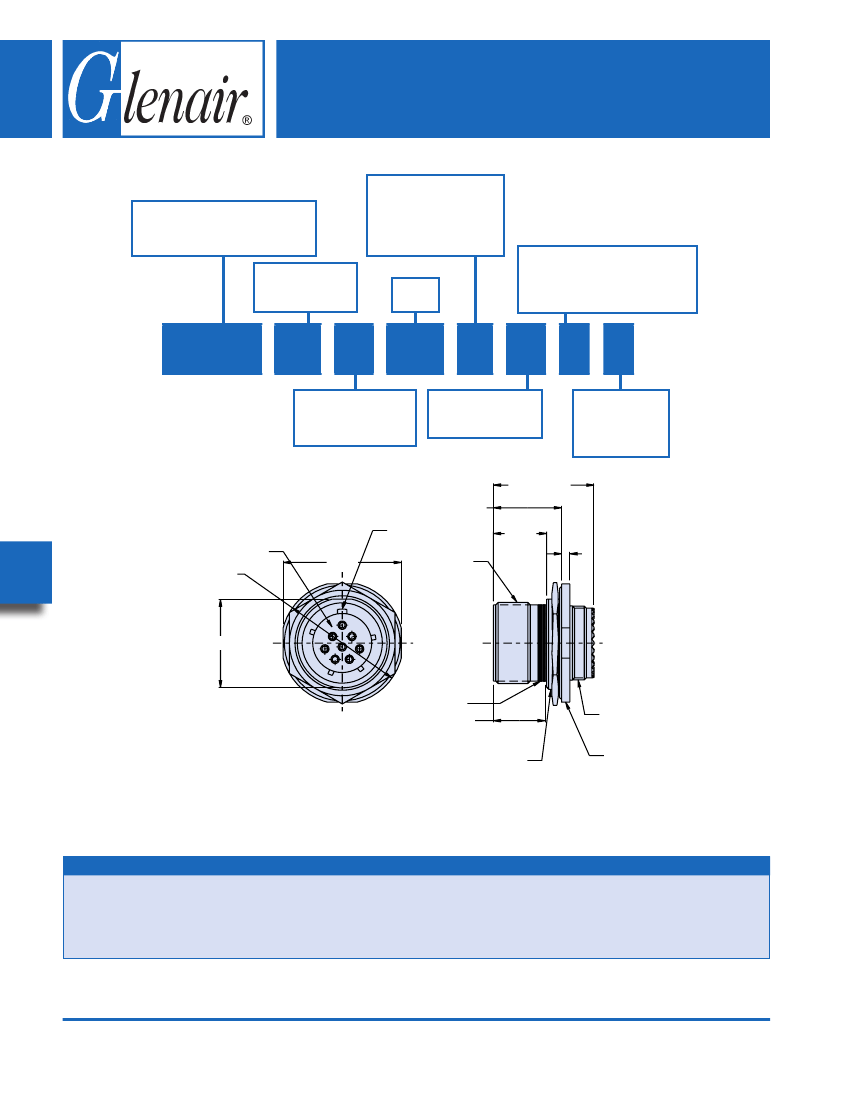

MIL-DTL-38999 Series III Type
Basic Part Number
257-606
=
D38999 Series III Type
Quadrax Connector
Finish/Material
(See Table II)
Ground Plane
Option
G
= Outer Contacts
Grounded to Shell
––
= None
Shell
Size
Insert Designator
A
= Pin Insert (Less Contacts)
B
= Socket Insert (Less Contacts
(See Note 7)
257-606
NF
G6
-
25Q
-
G
Connector Style
G6
= Plug
08
A
N
Insert Arrangement
Dash Number
(See Note 3)
(N for Normal)
Alternate Key
Position
A, B, C, D, or E
.122 (3.1)
.118 (3.0)
Master Key
See Notes 3 and
4
A
H
E
D
Knurl Mfg's Option
Blue Color Band
See Note 5
See Note 2
1.220 (31.0)
Max
G
F
B
C
Ø A Max
Ø B Max
Grounding
Spring
G6 - Plug
(See Table III)
C Thread
APPLICATION NOTES
1.
2.
3.
4.
Material/Finish (See Table II).
Assembly identified with Glenair’s, part number and date code
Insert arrangements IAW MIL-STD-1560 and Figure 1.
Insert arrangements shown is for reference only.
5.
6.
7.
Blue color band indicates rear release retention system.
Front panel mount only.
Parts will be identified “A” or “B.”
© 2010 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-17
Twinax and
Quadrax
Connectors
257-606 (G6)
Quadrax Plug Connector
E

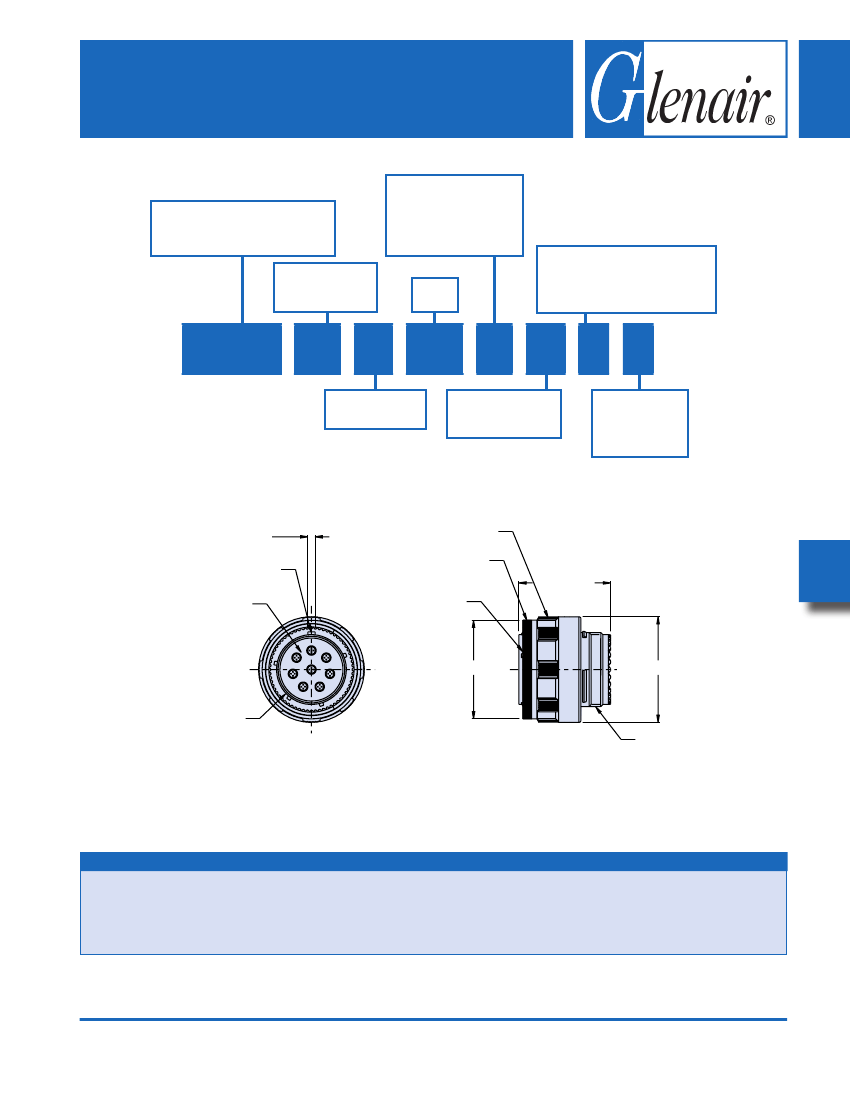

257-606 (07)
Jam Nut Mount Quadrax Plug Receptacle Connector
MIL-DTL-38999 Series III Type
Twinax and
Quadrax
Connectors
Basic Part Number
257-606
=
D38999 Series III Type
Quadrax Connector
Finish/Material
(See Table II)
Ground Plane
Option
G
= Outer Contacts
Grounded to Shell
––
= None
Shell
Size
Insert Designator
A
= Pin Insert (Less Contacts)
B
= Socket Insert (Less Contacts
(See Note 7)
257-606
NF
07
-
25Q
-
G
08
A
N
Connector Style
07
= Jam Nut Mount
Receptacle
Insert Arrangement
Dash Number
(See Note 3)
(N for Normal)
Alternate Key
Position
A, B, C, D, or E
1.280 Max
.890 Max
Master Keyway
See
Notes 3 and
4
ØT
.597 (15.2)
.555 (14.1)
Z
E
2x U
D Thread
From
Table III
V Flat
Blue Color Band
See Note 5
.510 (13.0) Max
Fully Mated
Indicator Band Red
W Thread
C Thread
See Note 2
07 - Jam Nut Mount Receptacle
(See Table IV)
APPLICATION NOTES
1.
2.
3.
4.
Material/Finish (See Table II).
Assembly identified with Glenair’s, part number and date code
Insert arrangements IAW MIL-STD-1560 and Figure 1.
Insert arrangements shown is for reference only.
5.
6.
7.
Blue color band indicates rear release retention system.
Front panel mount only.
Parts will be identified “A” or “B.”
© 2010 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-18
Finish and Ground Plane • MIL-DTL-38999 Series III Type

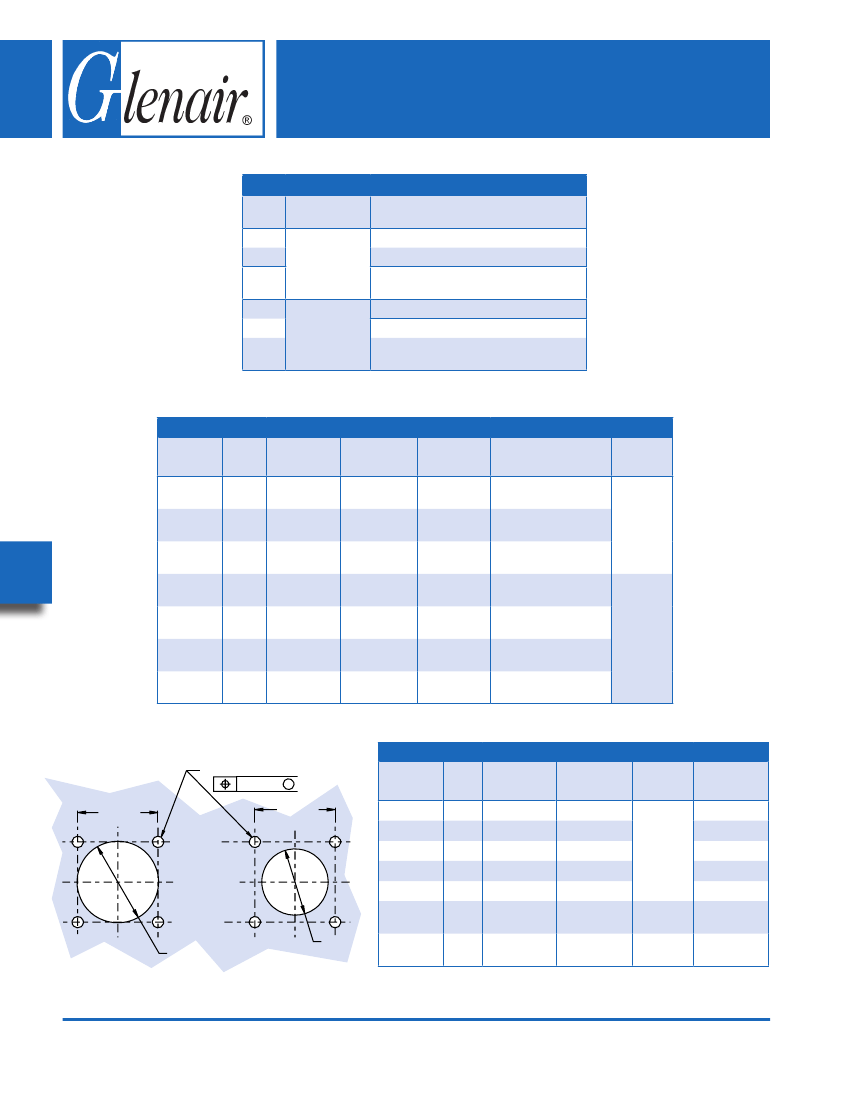

TABLE I: G6 PLUG DIMENSIONS
Shell Size
Code
A
B
E
F
G
H
J
Shell
Size
09
11
17
19
21
23
25
ø A Max.
.811 (20.6)
.929 (23.6)
1.358 (34.5)
1.469 (37.3)
1.594 (40.5)
1.720 (43.7)
1.843 (46.8)
ø B Max.
.858 (21.8)
.984 (25.0)
1.406 (35.7)
1.516 (38.5)
1.642 (41.7)
1.768 (44.9)
1.890 (48.0)
C Thread
M12 x 1.0-6g 0.100R
M15 x 1.0-6g 0.100R
M25 x 1.0-6g 0.100R
M28 x 1.0-6g 0.100R
M31 x 1.0-6g 0.100R
M34 x 1.0-6g 0.100R
M37 x 1.0-6g 0.100R
TABLE II: MATERIAL/FINISH and GROUND PLANE
Sym
M
NF
XM
XW
Material
Aluminum
Composite
Finish
Electroless Nickel
Cadmium O.D. Over Electroless Nickel
Electroless Nickel
Cadmium O.D. over Electroless Nickel
Consult Factory for Additional Plating Options
Ground Plane
1 mV
2.5 mV
3.0 mV
3.0 mV
TABLE III: 00 WALL MOUNT DIMENSIONS
Shell
Size
Code
A
B
E
F
G
H
J
Shell
Size
09
11
17
19
21
23
25
D Thread
.6250-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
1.1875-.1P-.3L-TS-2A
1.2500-.1P-.3L-TS-2A
1.3750-.1P-.3L-TS-2A
1.5000-.1P-.3L-TS-2A
1.6250-.1P-.3L-TS-2A
E Sq.
.949 (24.1)
.925 (23.5)
1.043 (26.5)
1.019 (25.9)
1.323 (33.6)
1.299 (33.0)
1.449 (36.8)
1.425 (36.2)
1.575 (40.0)
1.551 (39.4)
1.701 (43.2)
1.667 (42.3)
1.823 (46.3)
1.799 (45.7)
F BSC
.719 (18.3)
.812 (20.6)
1.062 (27.0)
1.156 (29.4)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
G BSC
(See Note 6)
.626 (15.9)
.719 (18.3)
.969 (24.6)
1.062 (27.0)
1.156 (29.4)
1.250 (31.8)
1.375 (34.9)
.162 (4.1)
.146 (3.7)
.250 (6.4)
.234 (5.9)
.171 (4.3)
.083 (2.1)
.791 (20.1)
.736 (18.7)
.136 (3.5)
.120 (3.0)
.202 (5.1)
.186 (4.7)
H
J
.224 (5.7)
.208 (5.3)
.144 (3.7)
.083 (2.1)
.823 (20.9)
.768 (19.5)
K
L
© 2010 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-19
Twinax and
Quadrax
Connectors
257-606
Quadrax Connector Dimensions,
E
257-606
Quadrax Connector Dimensions and Cut-Outs
MIL-DTL-38999 Series III Type
Twinax and
Quadrax
Connectors
Sym
M
NF
MT
XM
XW
XMT
Shell Size
Code
A
B
Shell
Size
09
11
17
19
21
23
25
øT
TABLE II: MATERIAL/FINISH
Material
Finish
Electroless Nickel
Aluminum
Cadmium O.D. Over Electroless Nickel
Ni-PTFE 1,000 Hour Grey
TM
(Nickel Fluorocarbon Polymer)
Electroless Nickel
Composite
Cadmium O.D. Over Electroless Nickel
Ni-PTFE 1,000 Hour Grey
TM
(Nickel Fluorocarbon Polymer)l
Consult Factory for Additional Plating Options
TABLE IV: 07 JAM NUT MOUNT
U
1.078 (27.4)
1.048 (26.6)
1.268 (32.2)
1.236 (31.4)
1.642 (41.7)
1.610 (40.9)
1.827 (46.4)
1.795 (45.6)
1.953 (49.6)
1.921 (48.8)
2.079 (52.8)
2.047 (52.0)
2.205 (56.0)
2.173 (55.2)
V Flat
.654 (16.6)
.645 (16.4)
.755 (19.2)
.745 (18.9)
1.191 (30.3)
1.181 (30.0)
1.316 (33.4)
1.306 (33.2)
1.441 (36.6)
1.431 (36.3)
1.566 (39.8)
1.556 (39.5)
1.691 (43.0)
1.681 (42.7)
W Thread
M17 x 1.0-6g 0.100R
M20 x 1.0-6g 0.100R
M32 x 1.0-6g 0.100R
(See Note 6)
M35 x 1.0-6g 0.100R
M38 x 1.0-6g 0.100R
M41 x 1.0-6g 0.100R
M44 x 1.0-6g 0.100R
.153 (3.9)
.114 (2.9)
.122 (3.1)
.083 (2.1)
Z
1.200 (30.5)
1.178 (29.9)
1.386 (35.2)
1.362 (34.6)
1.764 (44.8)
1.740 (44.2)
1.949 (49.5)
1.925 (48.9)
2.075 (52.7)
2.051 (52.1)
2.201 (55.9)
2.177 (55.3)
2.323 (59.0)
2.299 (58.4)
E
E
F
G
H
J
Recommended
Mounting Holes
Receptacle
(See Table V)
R Bsc
TABLE V: MOUNTING HOLE DIMENSIONS
4x Ø
P
Holes
.005 (0.1)
M
Shell Size
Code
A
B
E
F
G
H
Shell
Size
09
11
17
19
21
23
25
øM
Min
.656 (16.7)
.796 (19.5)
1.219 (31.0)
1.297 (32.4)
1.422 (36.1)
1.547 (39.3)
1.672 (42.5)
øN
Min
.516 (13.1)
.625 (15.9)
1.016 (25.8)
1.141 (29.0)
1.266 (32.2)
1.375 (34.9)
1.484 (37.7)
P
Holes
R
BSC
.719 (18.3)
.812 (20.6)
1.062 (27.0)
1.156 (29.4)
1.250 (31.8)
R Bsc
.133 (3.4)
.123 (3.1)
Back Panel
Mounting
Ø M
Min
Front Panel
Mounting
Ø N
Min
.159 (4.0)
.149 (3.8)
.155 (3.9)
.145 (3.7)
1.375 (34.9)
1.500 (38.1)
J
© 2010 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-20
